| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W811-2 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Size Of Boxes: | 235 X 235 X 235 Mm |
|---|---|---|---|
| Thickness Of Cork Lining: | 3.2 Mm | Speed Of Rotation Of Boxes: | 60 R.P.M. |
| Digital Counter: | 0–99999 | Dimension: | 900 X 500 X 500 Mm |
| Power Supply: | 220V, 50Hz Or 110V, 60Hz,120W | Net Weight: | 45kg |
| High Light: | IWSTM 152 Pilling Test Machine,Two Boxes Pilling Test Machine,Digital Counter Pilling Test Machine |
||

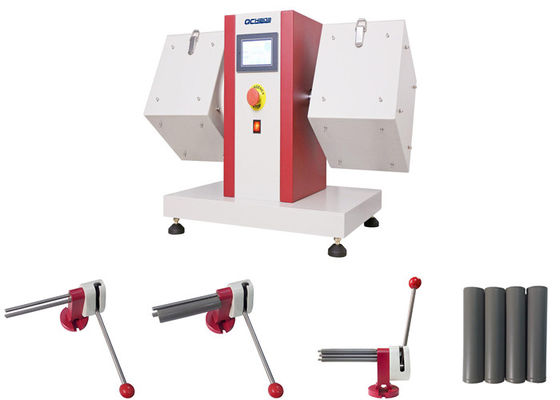

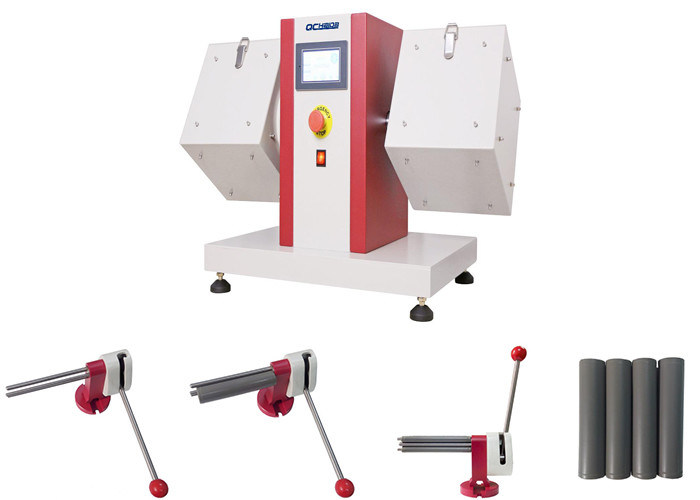

Two Boxes Pilling And Scratch Tester/ICI Pilling And Snagging Tester Digital Counter
Introduction
ICI Pilling tester to determine the pilling and snagging resistance of textile fabrics.
Technical parameter
| Technical Index | HD-W811-2 | HD-W811-4 | |
| No. of Boxes | 2 Nos. | 4 Nos. | |
| Size of Wooden Boxes inside (Before Cork Lining) | 235 x 235 x 235 mm (As Per Standards) | ||
| Thickness of Cork Lining | 3.2 mm (As Per Standards) | ||
| Speed of Rotation of Boxes | 60 R.P.M. (± 2 rpm.) (As Per Standards) | ||
| Size of Test Specimen | Length 140 mm + 1 mm (As Per Standards) | ||
| Diameter 31.5 mm + 1 mm | |||
| Wall Thickness 3.2 mm + 0.5 mm | |||
| Weight 52.25 gms. + 1 gms | |||
| Digital Counter (Preset Type) | 0–99999 | ||
| Dimension | 900 x 500 x 500 mm | 900 x 500 x 800 mm | |
| Power supply | 220V, 50Hz or 110V, 60Hz,120W | ||
| Net Weight | 45kg | 70 Kg | |
Features
1. ICI Pilling and Snagging Testing Machine drive system with 2 or 4 heads to rapidly replicate pilling on fabrics in a fraction of the time due to normal wear.Electron drive, electron digit counter and previous type equipment.
2.ICI Pilling and Snagging Testing Machine can measure knit fabrics and knitted fabrics, it fully complies with BS 5811 measuring anti-pilling and fabric appearance of changing requirements,as well as EN ISO/DIS 12945-1 measuring anti-pilling and fabric appearance change part pilling box approach.
Test Standard
ISO 12945-1,BS 5811,IWSTM 152,NEXT 19,JIS L1076,M&S P18,M&S P21A,BS 8479
Our serives
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined.
