products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Pilling Test Machine
Created with Pixso.

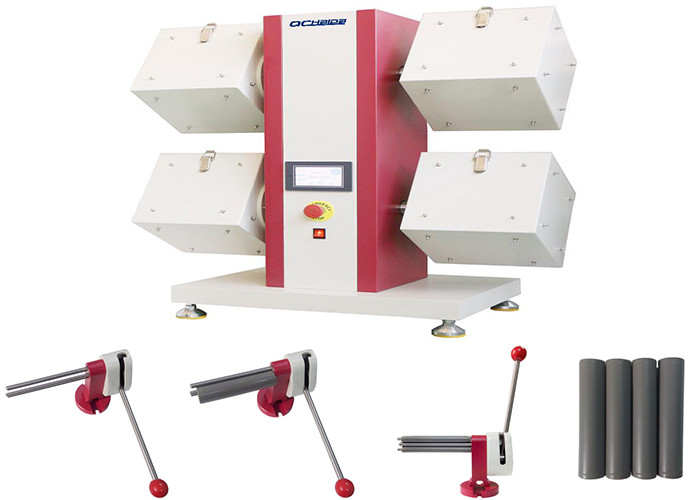

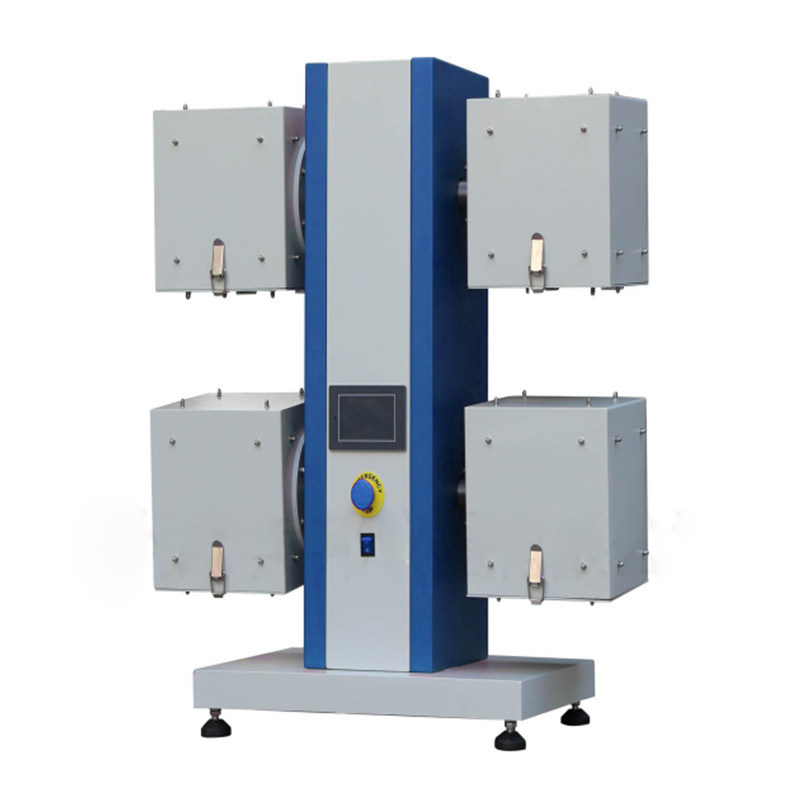

JIS L1076 ICI Pilling Test Machine With Four Boxes 99999 Digital Counter 60 RPM

JIS L1076 ICI Pilling Test Machine With Four Boxes 99999 Digital Counter 60 RPM

JIS L1076 ICI Pilling Test Machine With Four Boxes 99999 Digital Counter 60 RPM

Brand Name: HAIDA
Model Number: HD-W811-4
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
CE,ISO
Power:
Electronic
No. Of Boxes:
4 Nos.
Size Of Boxes:
235 X 235 X 235 Mm
Thickness Of Cork Lining:
3.2 Mm
Speed Of Rotation Of Boxes:
60 R.P.M.
Digital Counter:
0–99999
Dimension:
900 X 500 X 800
Net Weight:
70 Kg
Packaging Details:
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Supply Ability:
30 Sets per Month Haida
Highlight:

ICI Pilling Test Machine

,

60 RPM Pilling Test Machine

,

Four Boxes Pilling Test Machine

Product Description

JIS L1076 ICI Pilling Test Machine With Four Boxes 99999 Digital Counter 60 RPM







Technical parameter



Technical Index HD-W811-2 HD-W811-4
No. of Boxes 2 Nos. 4 Nos.
Size of Wooden Boxes inside (Before Cork Lining) 235 x 235 x 235 mm (As Per Standards)
Thickness of Cork Lining 3.2 mm (As Per Standards)
Speed of Rotation of Boxes 60 R.P.M. (± 2 rpm.) (As Per Standards)
Size of Test Specimen Length 140 mm + 1 mm (As Per Standards)
Diameter 31.5 mm + 1 mm
Wall Thickness 3.2 mm + 0.5 mm
Weight 52.25 gms. + 1 gms
Digital Counter (Preset Type) 0–99999
Dimension 900 x 500 x 500 mm 900 x 500 x 800 mm
Power supply 220V, 50Hz or 110V, 60Hz,120W
Net Weight 45kg 70 Kg









































Introduction



ICI Pilling tester to determine the pilling and snagging resistance of textile fabrics.





Features



The drive system of universal pilling and hook-up testing machine can repeatedly pilling or hook-up on the fabric, so that the sample will have normal wear and tear in a short time. Provides a unique controller that allows a choice between standard and several optional speed settings. The programmable reverse function defines the facility at 30 rpm and the test cycle.





Standard features



ISO 12945-1,BS 5811,IWSTM 152,NEXT 19,JIS L1076,M&S P18,M&S P21A,BS 8479





Our serives



1.Design & Production : Solution Consultation for each order

Recommend the most cost -performance machine

Research & Develop the suitable one for Special- designed Model.

2.Shipping & Delivery: One-Stop Service

Production- Deliver to your door - Installation & Training- Technical Support

3.Warranty

1 year warranty with lifetime technology support

4.After-Sale Service

React within 2 Hours

Video inspection & on-site service combined
