| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W247 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | The Experimental Station: | 4pcs |
|---|---|---|---|
| Air Source: | Compressed Air | Size Of Shape: | 750x350x630mm(without PC & Air Pump) |
| Power Supply: | AC220V±10%V，50Hz 0.8kW | Weight: | 30kg |
| Use: | Medical Protective Materials | Produt Name: | Clothing Blood Penetrability Tester |
| High Light: | ASTM Textile Testing Equipment,Penetrability Textile Testing Equipment,ASTM textile laboratory equipment |
||

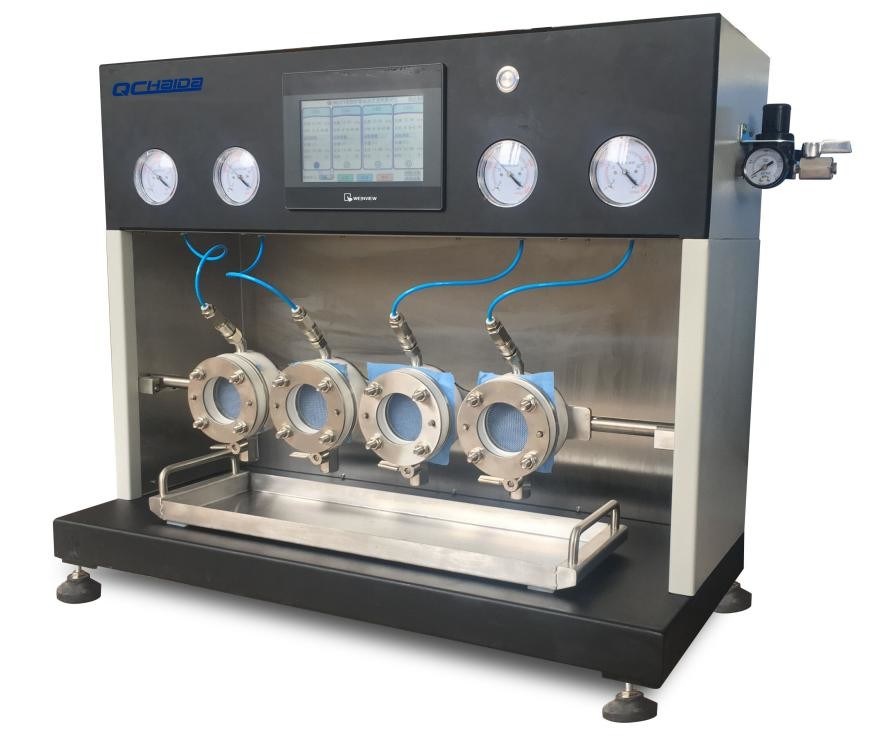

ASTM Compressed Air Textile Testing Equipment For Penetrability
PRODUCT DESCRIPTION
Textile Testing Equipment is used to determine the resistance of medical protective materials to the penetration of synthetic blood
TEST STANDARD
ASTM-F903-03,YY/T0700-2008,GB19082-2009, ISO16603:2004,ISO16603:2004;
STANDARD PARAMETER
| Technical Index | HD-P306-8 |
| The experimental station | 4pcs |
| Pressure point | 1.75kPa,3.5kPa,7kPa,14kPa,20kPa(±0.5 kPa) |
| Sample | 75x75mm,Compression section diameter:Φ57mm； |
| Air source | compressed air |
| Size of shape | 750x350x630mm(without PC & air pump) |
| Power | AC220V±10%V,50Hz 0.8kW |
| Weight | 30kg |
TECHNICAL DATA
1. It has 4 experimental stations and can conduct up to 4 experiments at the same time;
2. MCU automatically controls the test procedure, automatically timing, and gives an alarm at the end of the test;
3. The total pressure is equipped with mechanical indicator, which is intuitive and convenient;
4. Man-machine interface is adopted for operation, and the pressure is displayed in real time on the touch screen;
5. Each experimental station is equipped with an independent pressure monitoring display.
6. Apply pressure controlled by numerical control throttle valve to ensure that the test pressure rate does not exceed 3.5kPa/s;
7. The specimen is loaded and unloaded with a ratchet torque wrench with a torque of 13.6n.m, which is easy to operate and torque is controllable.
