Swing Angle 90degree Textile Testing Equipment For Leather, Rubber

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W542
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Counting: 0-999999 Times
Reciprocating Frequency: 152±4 Times/min Swing Frequency: 200±10 Times/min
Reciprocating Stroke: 70mm Swing Angle: 90°
Air Source: 0.6Mpa Weight: 35Kg
High Light:

Textile Testing Equipment


Leather Folding Testing


Textile Folding Testing

Product Description

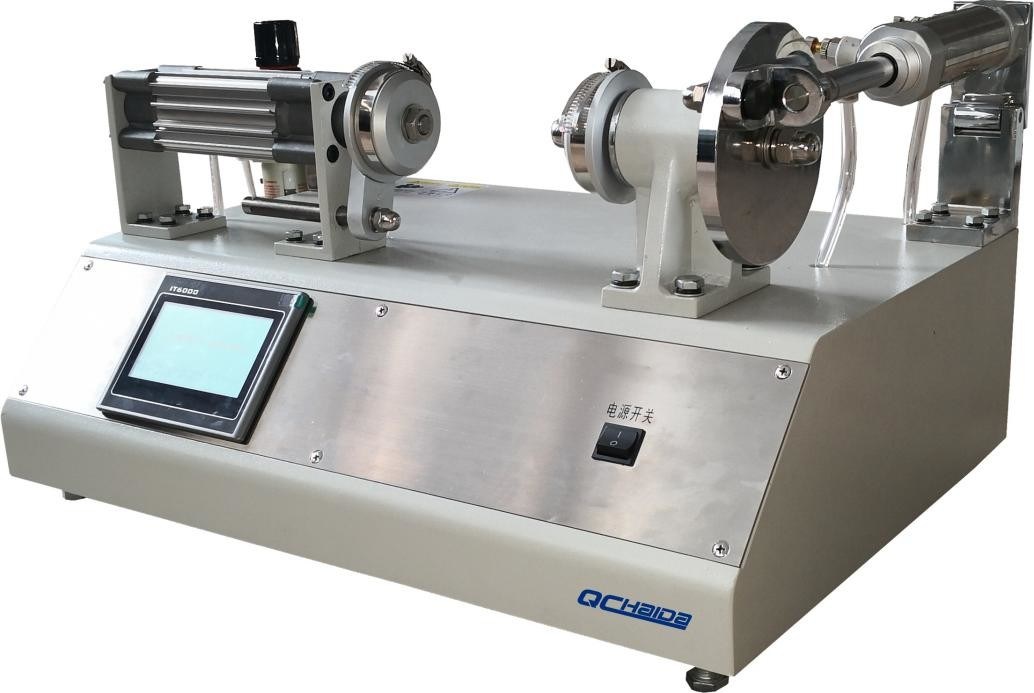

Swing Angle 90degree Textile Testing Equipment For Leather, Rubber






Used for testing the flexural resistance of materials such as leather, rubber, plastic sheet, and coated fabric


Swing Angle 90degree Textile Testing Equipment For Leather, Rubber 0





FZ/T 01052,BS3424 11D,GB2320...





Technical Index HD-W542
Counting 0-999999 times (reciprocating and swinging)
Reciprocating frequency 152±4 times/min (2.53Hz)
Swing frequency 200±10 times/min (3.23Hz)
Reciprocating stroke 70mm
Swing angle 90°
Cylinder specification φ63.5mm,Thickness 15.0mm,Length 28.0mm
Sample size 220×190mm Maximum sample thickness: 8mm
Air source 0.6Mpa
Power source Ac220V 50Hz 20W
Dimensions 650×450×450mm
Weight 35Kg




Haida International Equipment Co,Ltd is a National "High-tech Enterprise"(certified in 2016),integrating R&D,manufacturing and brand marketing.Our textile testing instruments meets with the requirements of ISO, ASTM, AATCC, BS, GB, DIN, EN, JIS. We are committed to providing high quality testing instruments.We always adhered to the strict and professional concept and strictly control the quality of products, and provide our customers with high-quality testing instruments,first-class service and competitive prices.


We can provide you with all kinds of testing equipment for fibers, yarns, leather, fabrics, non-fabric, gloves,cotton,bags etc. So as to bring you high quality and safe textiles.A list of our testing equipment:Air Permeability Tester, Martindale Tester, Sample Cutter, Taber Abrasion Tester, Pilling Tester, Snagging Tester, Softness Tester, Twist Tester, Bursting Tester, Crockmeter,Color Fastness Tester, Flammability Tester, Mask tester and so on.
