| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W810-2 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Flowmeter Range: | 0-10L/min, Accuracy: 3%± |
|---|---|---|---|
| Experimental Area: | 4.9cm²,5.06cm² | Power Supply: | 220V, 50Hz,300W |
| Weight: | 25kg | Use: | Mask |
| High Light: | CE Approval Air Permeability Tester For Textiles,10L/min Air Permeability Tester For Textiles,CE Approval Differential Pressure Tester |
||

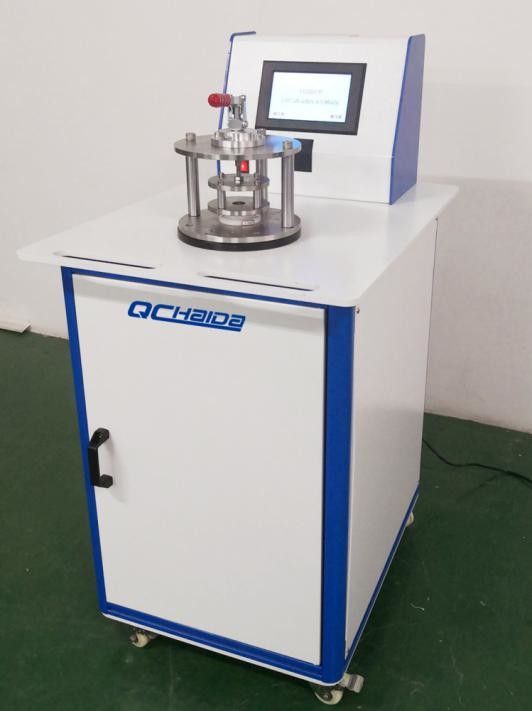

CE Approval 10L/Min Air Permeability Tester For Textiles YY 0469-2011
Usage
Used to measure the pressure difference index of medical surgical masks under specified conditions.
Test standard
YY 0469-2011,Y/T 0969-2013,EN14683:2019
Features and Advantages
1. HD color touch screen.
2. High precision imported digital differential pressure gauge.
3. High-precision imported flowmeter with high flow control accuracy.
Technical parameters
| Technical Index | HD-W810-2 |
| Measuring range | 0-2000Pa, accuracy: 1Pa |
| Flowmeter range | 0-10L/min, accuracy: 3%± |
| Exhaust volume of air pump | 8L/min (1-100L/min adjustable) |
| Experimental area | 4.9cm²,5.06cm² |
| Dimensions | 460 x 500 x 670 mm |
| Power supply | 220V, 50Hz,300W |
| Weight | 25kg |
