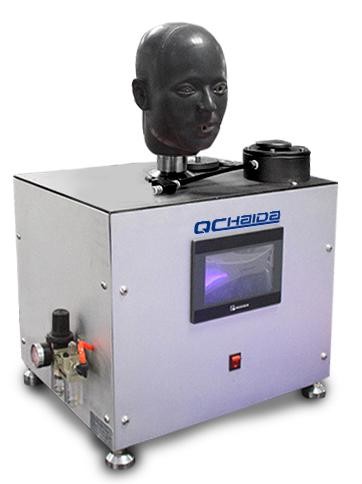

2kPa Air Tightness Tester For Mask Exhalation Valve With A Standard Test Head

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W810-5
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Micro Manometer Range: 0~2kPa, Accuracy 1%, Resolution 1Pa
Timing Range: 0-99.99, Accuracy Is 1%, Resolution Is 0.1S. Power Supply: AC220V, 50Hz
Product Name: Air Tightness Tester Use: Masks And Respirators
High Light:

2kPa Air Tightness Tester


AC220V Air Tightness Tester


CE Air Tightness Tester

Product Description

2kPa Air Tightness Tester For Mask Exhalation Valve With A Standard Test Head






1.The test time can be set. When the set time is up, an automatic alarm prompts.

2.Equipped with a standard test head mold, the standard configuration is a medium head mold. If you need a small or large size, you can purchase it separately. The breathing valve is equipped with a special clamp.

3.Real-time display of the test breathing gas volume.

4.The flow sensor is a digital flow meter with high sensitivity. The chip uses a thermal mass flow meter without temperature and pressure compensation.

5.PLC touch screen control, related operations can be completed through the touch screen.






The Air Tightness Tester is mainly used for air tightness testing of masks and respirators under specified conditions. Applicable to masks, respirators and breathing valve manufacturers, quality supervision, scientific research, wearing and other units.






GB 2626-2019





Technical Parameters


Technical Index HD-W810-5
Pumping rate 0-10L / min ~ 100L / min, adjustable, standard 2 L / min.
Air source professional-grade vacuum pump
Micro Manometer range 0~2kPa, accuracy 1%, resolution 1Pa.
Timing range 0-99.99, accuracy is 1%, resolution is 0.1S.
Power supply AC220V, 50Hz














How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
