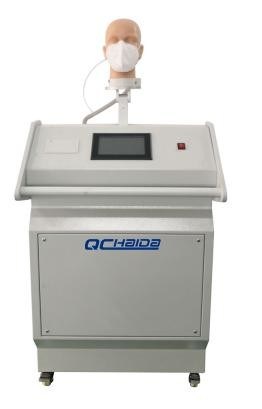

AC220V Mask Respiration Resistance Tester With 7.0-Inch True Color Touch Display

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W810-6
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Flow Range: 0-200 L / Min, Accuracy 3%
Pressure: 0-1500Pa, Accuracy 1Pa Dimensions: 1050*750*1350mm(L*W*H)
Weight: 130kg Power Source: AC220V 50Hz
Use: Face Mask Data: ≤1000 Groups
High Light:

EN149-2001 Mask Testing Equipment


1500Pa Mask Testing Equipment

Product Description

AC220V Mask Respiration Resistance Tester With 7.0-Inch True Color Touch Display






Mask Respiration Resistance Tester is used to measure the inhalation resistance and exhalation resistance of mask protective equipment with valve and valveless particle filter half masks under specified conditions.




Product Description


1. The instrument is composed of an adjustable air source, a standard head mould, an inhaling and exhaling pipe system and a respiratory resistance measurement system.
2. The use of special air path conversion elements ensures the convenient and quick replacement of the call-in system.
3. Respiratory resistance digital display, with zero correction, precision correction and over-range alarm function.
4. Using standard flow meter, high accuracy of flow control. 5. The computer control and acquisition system realizes the real-time detection and output of pressure control, respiratory frequency control and respiratory resistance test data.


EN149-2001 7.16 etc ..




Standard Features


Technical Index HD-W810-5
Display 7.0-inch true color touch display
Flow Range 0-200 L / min, accuracy 3%
Pressure 0-1500Pa, accuracy 1Pa
Ventilation capacity 30L / min 95L / min 160L / min (can be set as required)
Head mold position 5 positions can be adjustable
Micro printer maximum, minimum, average, etc.
Data storag ≤1000 groups
Qualification index reference

Exhalation resistance < 250Pa

Inhalation resistance < 350Pa

Dimensions 1050*750*1350mm(L*W*H)
Weight 130kg
Power source AC220V 50Hz




















Order process


Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.




Our serives


1.Design & Production : Solution Consultation for each order

Recommend the most cost -performance machine

Research & Develop the suitable one for Special- designed Model.

2.Shipping & Delivery: One-Stop Service

Production- Deliver to your door - Installation & Training- Technical Support


1 year warranty with lifetime technology support

4.After-Sale Service

React within 2 Hours

Video inspection & on-site service combined.
