0~5N Textile/Rubber/ Paper Measuring Instrument Friction Coefficient Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W258
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Test Range: 0.01~10N, Accuracy: 0.01N
Slider Size: 63*63mm Slider Mass: 200±2g
Test Stable Size: 170*225mm Force Range: 0~5N
Size: 500*335*220mm Weight: 20kg
High Light:

5N friction coefficient tester


63mm Slider friction coefficient tester


5N textile laboratory equipment

Product Description

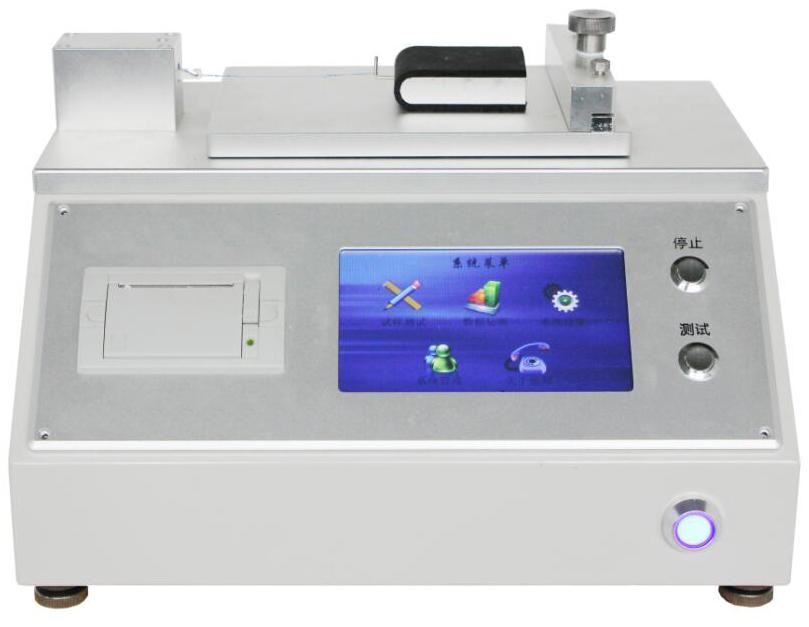

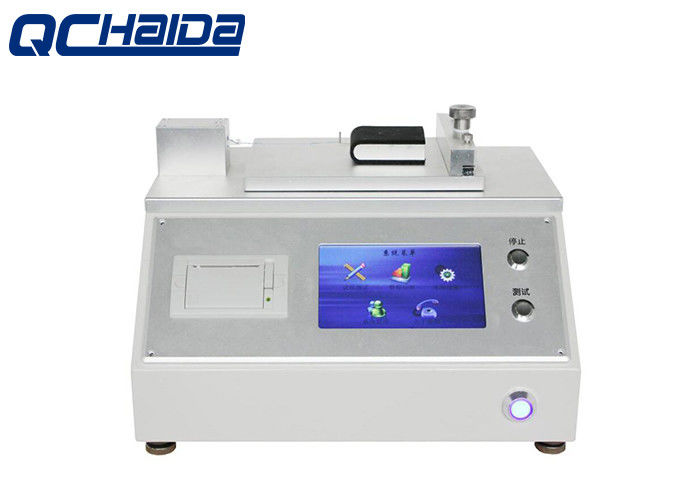

0~5N Textile/Rubber/ Paper Measuring Instrument Friction Coefficient Tester






The friction coefficient tester is mainly used to measure the static friction coefficient and dynamic friction coefficient of plastic film and thin sheet or other similar material. The matching control software can directly understand the films smoothness and opening, and show the distribution of the slipping agent through the curve. The smoothness measurement of material, production process quality indicators can control and adjust the packing bag opening, packing machine, package speed, meet the product requirements.




The friction coefficient tester






Be suitable for measuring the dynamic and static friction coefficient of plastic films and sheets, rubber, paper, cardboard, bags, fabric style, conveyor belts, wood, coatings and other material.





Advantages of the Friction Coefficient Tester


High-precision force sensor, reaching the test precision: 0.001N.


LCD real-time display force value and the dynamic and static friction coefficient.


Grouped data ,built in data statistics and analytical function.


Simple operation, easy to use.





Testing standard


GB/T 22895 ,GB 10006, ASTM D 1894 -01, ISO 8295, TAPPI 816




Technical parameters


Technical Index HD-W258
Test range 0.01~10N, accuracy: 0.01N
Thickness of the specimen ≤0.2mm
Slider size 63*63mm
Slider mass 200±2g
Test stable size 170*225mm
Slider velocity 100±10mm/mim
Slider stroke 0~150mm(adjustable)
Force range 0~5N
Size 500*335*220mm
Power supply AC 220 50Hz
Weight 20kg



Q: How to choose the most suitable products?

A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
