| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W832 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Test Time Control Range: | ≤10000h |
|---|---|---|---|
| Source: | AC380V 50Hz 10KW | Weight: | 350kg |
| Dimensions: | 1200×900×1800mm | Spray Cycle: | ≤1000h |
| Light Cycle: | ≤1000h | Use: | Rubber, Plastic |
| High Light: | 10KW Color Fastness Testing Equipment,AC380V Color Fastness Testing Equipment,AC380V light fastness tester |
||

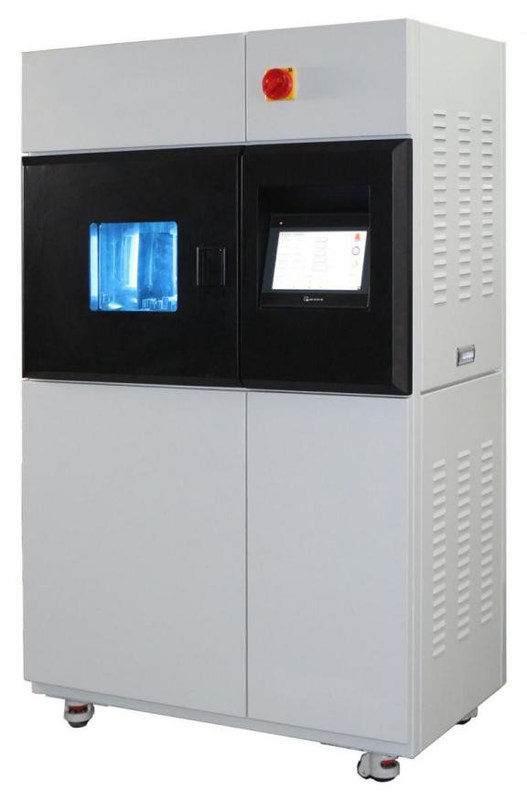

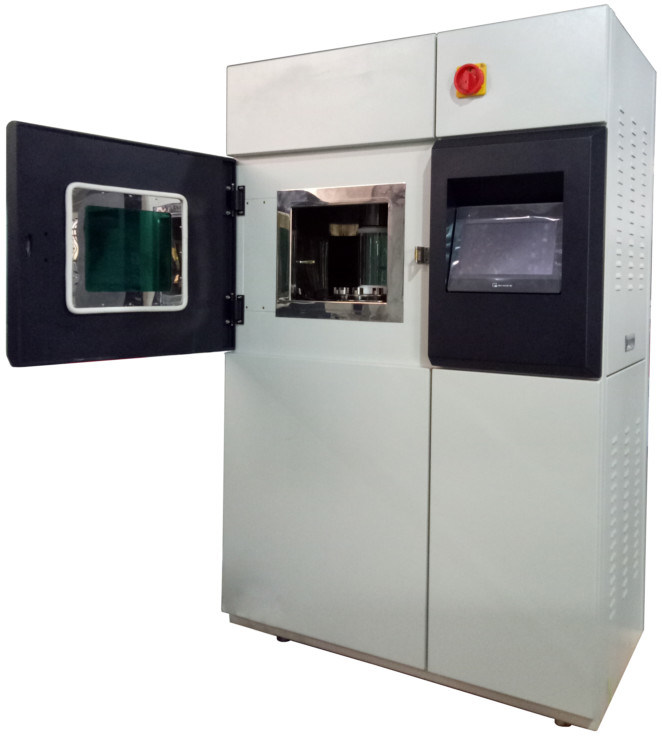

350kg Water Cooling Light Fastness Tester For Rubber/Plastic/Textile,AC380V 10kw
Usage
Used in rubber, plastic, paint, coating, petrochemical, automobile, textile and other industries products and materials to perform solar radiation simulation light fastness, light sweat composite color fastness and light aging tests, through simulated light, rain, spray , Alternating light and dark, temperature and humidity and other climatic conditions to determine the changes in properties such as fading, aging, deterioration, transmittance, peeling, hardness, and softening of material products.
Testing Standard
Textile: GB/T 8427, GB/T 8430, GB/T 14576, GB/T 16991, GB/T 1865, GB/T 15102, GB/T 15104, ISO 105-B02, ISO 105-B04, ISO 105- B06, AATCC TM 16
Artificial board: GB/T 15102, GB/T 15104
Automotive interior: ISO 105, ASE J1885KJ, ISO 11341, ISO 4892, ISO 03917, ISO 11341, ISO 4892-2
Leather: PV 1303, PV 3929, PV 3930, DVM 0067-MA, HES D6601
| Technical Index | HD-W832 |
| Temperature control range of test chamber |
Conventional configuration: 30～90℃; Resolution: 0.1℃ |
| The humidity control range of the test chamber |
Light cycle: 20～70RH%; resolution: 0.1RH% Dark cycle: 30～95RH%; resolution: 0.1RH% |
| Standard blackboard thermometer (optional) |
35～125℃; Accuracy: ±1℃; Resolution: 0.1℃ |
| Blackboard thermometer |
35～120℃; Accuracy: ±2℃; Resolution: 0.1℃ |
| Test time control range | ≤10000h |
| Irradiance control range |
0.60～3.08W/m²@420nm(Standard); Accuracy: ±0.02W/m²@420nm; digital setting, closed loop automatic compensation; 340nm, 300～400nm or 280～800nm)(optional ); |
| Rated power of xenon arc lamp | 6000W |
| Rotation speed of sample holder | 3～7rpm |
| The number of sample holders that can be loaded | 33 pieces of ISO standard, 21 pieces of AATCC standard |
| Separate timing for each sample holder | ≤10000h |
| Light cycle | ≤1000h |
| Spray cycle | ≤1000h |
| Dimensions | 1200×900×1800mm |
| Weight | 350kg |
| Power source | AC380V 50Hz 10KW |
FAQ
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
