| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W805 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Distance From Shafts: | 45 Mm |
|---|---|---|---|
| Speed Of Rotation: | 40 ± 2 Rpm | Control Mode: | LCD Touch Panel |
| Power Supply: | 220V, 50Hz | Weight: | 120Kg |
| Dimensions: | 800 X580 X 1000 Mm | Use: | Cotton, Wool, Silk |
| High Light: | 5KW color fastness tester,45mm color fastness tester,5KW Textile Test Machine |
||

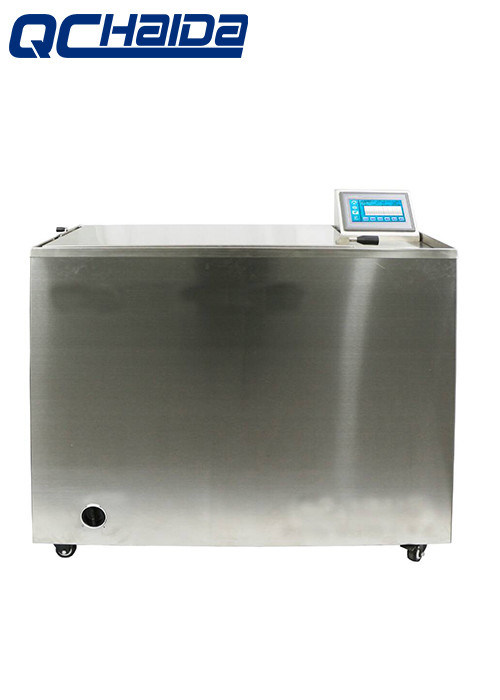

45mm 5KW Color Fastness Tester , Textile Test Machine For Cotton Wool Silk
Application
Colour Fastness Tester is applied to determine the dye washing color fastness, resistant to washing, resistant to dry cleaning and resistant to shrink of cotton, wool, silk jute and chemical fiber textiles.
Testing standard
ISO 105-C06,ISO 105-C08,ISO 105-C09,ISO 105-C10,ISO 105-D01,ISO 105-E03
AATCC 61,190 AATCC 86,132
M&S C04,M&S C05, M&S C10A, M&S C12A, M&S C37
BS 1006,JIS L0844
Technical details
| Technical Index | Type 1 | Type 2 |
| Number of Beakers(Test Vessels) | Total 12Nos.(6 Nos.(For ISO) and 6Nos. For AATCC) | Total 18Nos. (12 Nos.(For ISO) and 6Nos. For AATCC) |
| Standard seal for beakers | 12 no’s special neoprene gaskets | |
| Volume of each breaker | as per ISO:550 ml; as per AATCC:1200ml | |
| Distance from shafts | 45 mm | |
| Speed of rotation | 40 ± 2 rpm | |
| Temperature Controller | TI-LM35 type (up to 99.9°C) L/C – 0.5°C | |
| Temperature Regulation | ± 2.0°C (as per ISO) | |
| Control mode | LCD touch panel | |
| Power supply | 220V, 50Hz | |
| Weight | 100 Kg | 120kg |
| Dimensions | 800 x 500 x 1000 mm | 800 x580 x 1000 mm |
| Power | AC380V,50Hz,5KW | |
Features
1.To determine the Colour Fastness to Washing or Dry Cleaning.
2.Latest Ergonomic design with customer friendly control panel.
3.Robust completely stainless steel body gives long life operations & durability.
4.Temperature upto 95°C with a Digital Temperature Controller.
5.Inching facility for loading and unloading of the beakers.
6.10Beakers of 550 ml. (For ISO)and 10beakers for 1200ml(For AATCC)
7.Special silicon gaskets for the beakers having very long life.
8.Touch control panel equipped with ISO&AATCC testing programs for easy operation.
9. No extra hardware, tools, or adapters are required for 1200ml containers.
10.Operators can enter and store custom designed tests.
11.Water bath is heated by stainless steel heater in a temperature rise rate of 2°C per minute.
12.Door safety switch inside the cabinet automatically stops the rotor from turning if the door is open.
