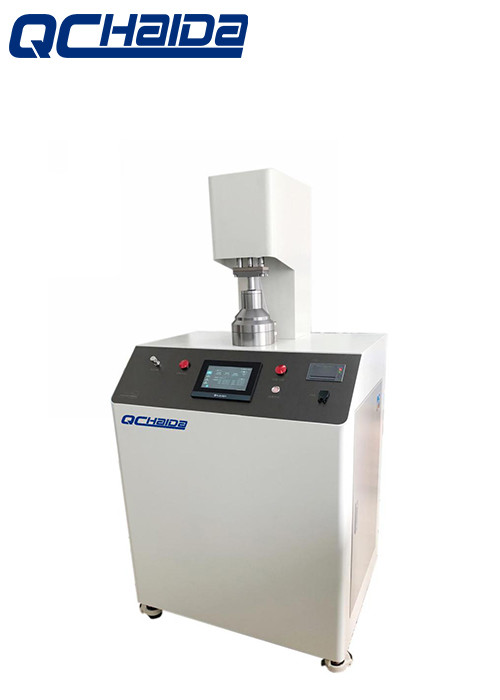

1KW 100L/Min Air Permeability Tester For Textiles PFE Protective Masks 0.3μm

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W810-3
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Est Particle Size: 0.3μm
Fog Dust Source: NaC1,DEHS Dimensions: L800xW600xH1650mm
Weight: 120Kg Approx Use: Mask
High Light:

1KW Air Permeability Tester


100L/Min Air Permeability Tester For Textiles


1KW PFE Tester

Product Description

1KW 100L/Min Air Permeability Tester For Textiles PFE Protective Masks 0.3μm







Particulate Filtration Efficiency is suitable for fast, accurate and stable detection of particulate filtering efficiency of various medical and daily protective masks, respirators, etc.





Test standard


GB/T 19083-2010 5.4,GB/T 32610-2016 ,GB 2626-2019 6.3,GB 19082-2009 5.7

EN 1822-3:2012,EN 149-2001,EN 14683:2005

YY/T 0469-2011 5.6.2,NIOSH 42 CFR Part 84




Technical parameters


Technical Index HD-W810-3
Test flow range 15L / min ~ 100L / min, accuracy 2%
The cross-sectional area through which the air flows 100cm²
Resistance test range 0 ~ 1000Pa, accuracy can reach 0.1Pa
Filtering efficiency test range 0 ~ 99.999%, resolution 0.001%
Est particle size 0.3μm
Aeroso Sodium chloride concentration Salinity 10mg / m~ 25mg / m,Oil 50mg/m~200mg/m
Fog dust source NaC1,DEHS
Test time resistance is tested separately for 5s, efficiency and resistance are tested at the same time for 70s
Structural composition particle generator, flow detection device, concentration detection device
Power 220V, 50Hz, 1KW
Dimensions L800xW600xH1650mm
Weight 120Kg approx
























Instrument characteristics


1. Efficiency detection: use TSI brand imported brand photometer to detect upstream and downstream particle concentration to ensure accurate and stable sampling;

2. Flow detection: The system test flow is mainly provided by external dry and clean compressed air. There is a voltage stabilization device installed inside to ensure the stability of the detection flow, and the automatic control system is simple, fast and stable;

3. Aerosol generation: Collision multi-nozzle design is adopted, which can conduct salt and oil testing on the same instrument to ensure rapid and stable fogging concentration adjustment;

4. Test results; equipped with a 7-inch touch screen, the test results are directly displayed on the interface, and the user can choose to directly or save the data;

5. Data port: external memory card can export data without worrying about data loss;

6. Resistance detection: The resistance pressure difference of the filter material will be obtained through the static pressure ring of the upstream and downstream test chambers, and the high-precision imported brand pressure difference transmitter will be used to ensure the accuracy and stability of the pressure difference;

7. Data port: external memory card can export data without worrying about data loss;

8. Simple operation: the user only needs to place the filter paper in the fixture, press the button, adjust the test flow, and the system will automatically test the resistance and efficiency through the controller (PLC). The whole process is simple, fast and efficient;
