Mask Testing Equipment Synthetic Blood Penetration Resistance Tester 305mm Stroke

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W810-4
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Spray Stroke: 300~305mm
Spray Port Diameter: Ø0.84mm Jet Velocity: 450cm/s、550cm/s、635cm/s
Pressure Range: 6 -30kPa (± 0.2 Kpa) Dimension: 910x420x400mm(L*W*H)
Weight: 50 KG Supply: AC 220V± 10% 50Hz
High Light:

HAIDA Mask Testing Equipment

,

305mm Stroke Mask Testing Equipment

,

ASTM F1862-07 Synthetic Blood Penetration Resistance Tester


Product Description

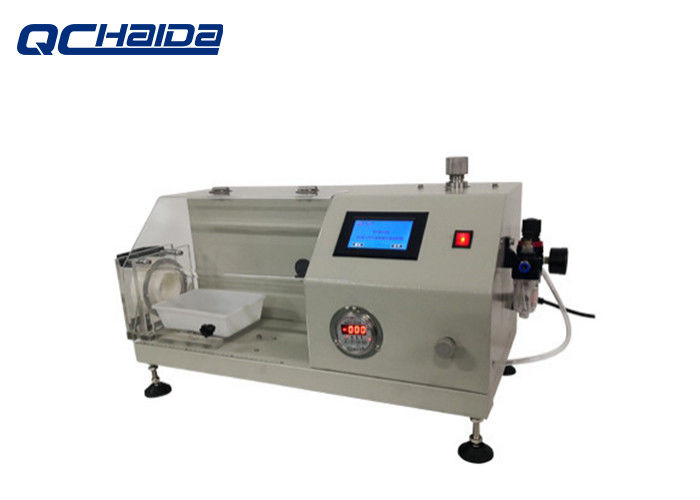

Mask Testing Equipment Synthetic Blood Penetration Resistance Tester 305mm Stroke









Application



Masks Synthetic Blood Penetration Resistance Tester  is used for the resistance of medical masks to the penetration of synthetic blood under different blood pressures, it’s also be used to determine the hemodialysis resistance of other coating materials.







Standard



ISO 22609, ASTM F1862-07







Advantages

  • Using air compression method, compression speed is faster, pressure control precision is higher and the more widely available pressure range.
  • Use the control system software to control the pressure and injection time. After setting the pressure, it can be automatically adjusted. The pressure and spray time are displayed digitally, which can be adjusted accurately according to the actual situation;
  • The nozzle can be adjusted within ± 20mm and can be used for non-standard tests;
  • The main accessories are corrosion-resistant, which can work for a long time in a high humidity environment;
  • Configure the liquid sputtering collection structure, the liquid collection is convenient after the test and the test process will keep clean and tidy;





Standard features



Technical Index HD-W810-4
Spray stroke 300~305mm
Spray port diameter Ø0.84mm
Jet velocity 450cm/s,550cm/s,635cm/s
Pressure range 6 -30kPa (± 0.2 Kpa)
Power AC 220V± 10% 50Hz
Dimension 910x420x400mm(L*W*H)
Weight 50 KG


Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage










We will give you



--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.

--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.

--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
