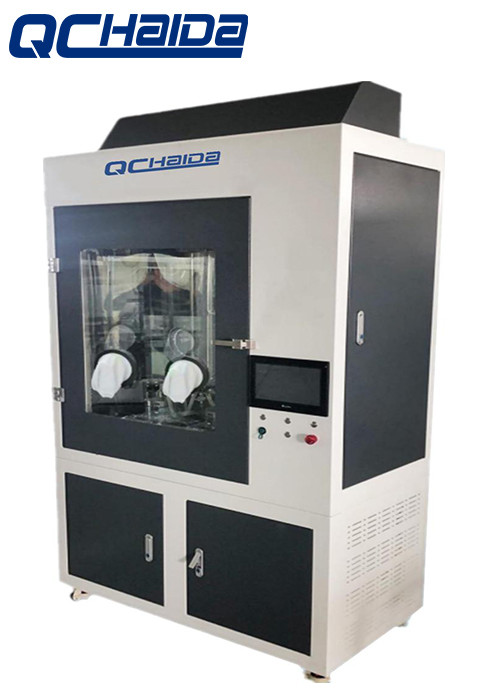

1500W Medical Mask Bacterial Filtration Efficiency Tester 120Pa Negative Pressure

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W810-1
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Working Temperature: 0-50 ℃
Cabinet Negative Pressure: > 120Pa Host Size: 1180 X 650 X1300mm (WxDxH)
Instrument Noise: <65dB (A) Machine Weight: About 150kg
Power Consumption: <1500W Use: Mask
High Light:

Mask Bacterial Filtration Efficiency Tester

,

120Pa Bacterial Filtration Efficiency Tester

,

1500W Bacterial Filtration Efficiency Test Apparatus


Product Description

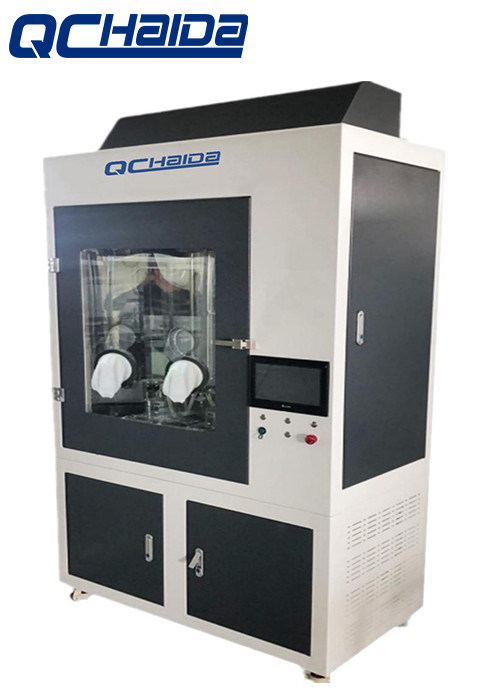

1500W Medical Mask Bacterial Filtration Efficiency Tester 120Pa Negative Pressure







Technical parameters



Technical Index HD-W810-1
Sampling flow 28.3L / min, resolution: 0.1L / min, accuracy: ± 2.5%
Spray flow 8 ~10L / min, resolution: 0.1L / min, accuracy: ± 5%
Peristaltic pump flow 0.006 ~3.0ml / min, resolution: 0.001ml / min, accuracy: ± 2%
Pressure before sampling flowmeter -20 ~0KPa resolution: 0.01KPa, accuracy: ± 2%
Front pressure of spray flow meter 0 ~300KPa, resolution: 0.1KPa, accuracy: ± 2%
Aerosol chamber negative pressure -90 ~-120Pa, resolution: 0.1Pa, accuracy: ± 1%
Working temperature 0-50 ℃
Cabinet negative pressure > 120Pa
Data storage capacity > 500000 sets, capacity can be expanded
High-efficiency air filtration performance

The filtration efficiency of particles above 0.3um is ≥99.995%,

the filtration efficiency of particles above 0.12um is ≥99.9995%

Median mass diameter of aerosol generator 3.0 ± 0.3μm, geometric standard deviation ≤1.5
Dual 6-stage Anderson sampler capture particle size

I> 7μm, II>4.7-7μm, III >3.3-4.7μm,

IV >2.1-3.3μm, V> 1.1-2.1μm, VI >0.6-1.1 μm

Aerosol chamber specifications 60cmX8.5 cmX 3cm (LxWxH)
Total number of positive control sampler particles 2200 ± 500cfu
Ventilation flow of negative pressure cabinet ≥5m3 / min
Negative pressure cabinet door size 1000 X 730mm
Host size 1180 X 650 X1300mm (WxDxH)
Bracket size 1180 X 650 X 600mm (WxDxH), height adjustable within 10 cm
Instrument noise <65dB (A)
Machine weight about 150kg
Power AC220V ± 10%, 50Hz ,power consumption: <1500W































































































Usage



Bacterial Filtration Efficiency Tester is used to detect various medical and daily protective mask materials and filter out the percentage of bacteria-containing suspended particles (BFE) under the specified flow rate.



It is suitable for the performance testing of bacterial filtration efficiency of medical surgical masks by metrological inspection departments, scientific research institutes, medical mask manufacturers and other related departments.







Test standard



YY0469-2004,YY/T 0969-2013,ASTMF2100,ASTMF2101,EN14683 ect.







Order process



Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.







FAQ


How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.



How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.



What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
