Max Elongation 800mm LCD Display Support Yarn Strength Tester For Cotton Yarn

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W862
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Net Weight: 60Kg
Outside Dimension: 520X400X1600mm Max Elongation: 800mm
Draw Speed: 50~1000mm/min Measuring Accuracy: ≤0.2%F·S
High Light:

800mm Elongation Yarn Strength Tester


HAIDA Yarn Strength Tester


800mm Elongation yarn testing equipment

Product Description

Max Elongation 800mm LCD Display Support Yarn Strength Tester For Cotton Yarn





Product description



Yarn Strength Tester is use to determine the breaking force and elongation at break of single yarn made of cotton , wool , jute ,core-spun yarn etc , at the time including synthetic fiber filament , textured yarns .






1.It is suitable for various yarns
2.It can also be connected to computer to achieve more analysis function
3.Adjustable pre-tension according to yarn category
4.Adopt micro-computer control, with automatic data processing, display and printout, accurate, stable and reliable
5.Yarn holder directly driven by motor, stepless speed regulation; Also designed with speed measurement function to accurately determine the rotating speed of yarn holder (motor)




Technical parameter


Technical Index HD-W862
Measuring accuracy ≤0.2%F·S
Measuring accuracy 50N,100N,300N,500N(Optional)
Mode CRE, Microcomputer Control, LCD display Support, online communication
Draw speed 50~1000mm/min
Max Elongation 800mm
Fixture distance 50~500mm,Digital Preset
Pre-exerted tension 0-150cN
Power AC220V 50HZ 250W
Outside dimension 520X400X1600mm
Net Weight 60Kg

Test standard


GB/T 14344,GB/T 3916,ISO 2062,ASTM D 2256...

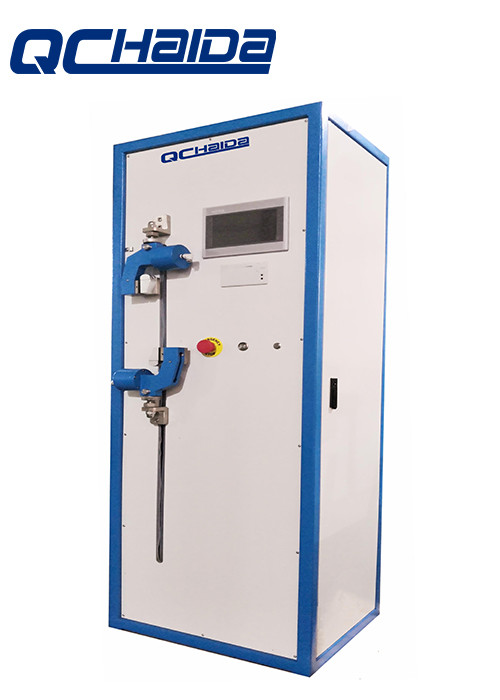

Yarn Strength Tester Image


Yarn Strength Tester
