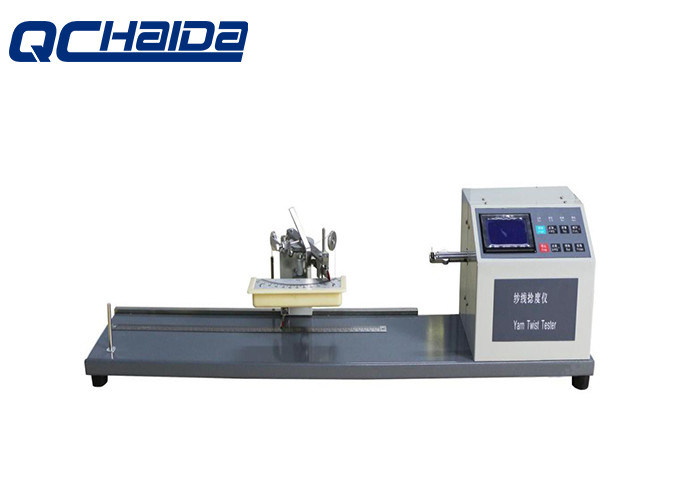

1500r/Min 160.5cN Textile Testing Equipment , Yarn Twist Tester Untwist Retwist Methods

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W815
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Measuring Range: 1 ~ 9999.9 Twist / 10 Cm
Test Speed: 800r/min, 1500r/min Additive Tension: 0.5~160.5cN
Dimension Size: 880x150x175mm Weight: 16kg
High Light:

Yarn Twist Tester


Yarn Twist Test Machine


Yarn Twist Testing

Product Description

1500r/Min 160.5cN Textile Testing Equipment , Yarn Twist Tester Untwist Retwist Methods






Yarn Twist Tester to determine yarn twist in single or plyed yarns, quadrant type with auto stop & reverse for conventional or untwist/retwist methods.




Testing standard


ASTM D1422 Standard Test Method for Twist in Single Spun Yarns by the Untwist-Retwist Method

ASTM D1423 Standard Test Method for Twist in Yarns by Direct-Counting

ISO 2061 Textiles -- Determination of twist in yarns -- Direct counting method

BS 2085 Method of test for determination of twist in yarns, direct counting method

DIN 53832 Testing of textiles -- Determination of the twist of single and plied yarns and of the change of length. untwist method




Technical parameters


Technical Index HD-W815
Test method

Test method 1: Single untwist-retwist method

Test method 2: Double untwist-retwist method

Test method 3: Direct counting method

Test method 4: Multiple untwist-retwist method

Specimen length 25mm,50mm,100mm,250mm,500mm
Rotating speed of grippe 1500 r/min, 800 r/min, slow inching speed.
Measuring range 1 ~ 9999.9 twist / 10 cm
Untwisting elongation range Max. 60mm
Determine maximum twist contraction 20mm
Test speed 800r/min, 1500r/min
Additive tension 0.5~160.5cN
Dimension size 880x150x175mm
Weight 16kg
Power 220V,50Hz
