Air Cooling Thermal Test Chamber , Simulate Environment Hot And Cold Shock Test Chamber

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-E702-800-K40
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Test Condition: 20±20C; 65% RH
Temperature Range: -40~+150℃ Temperature Accuracy: ±1℃
Cooling Method: Air Cooling Lighting: Heat Resistance
Gross Weight: 500kg Supply Source: 380V±10%, 50/60Hz
High Light:

CE Certifiacte thermal test chamber

,

HAIDA thermal test chamber

,

CE Certifiacte thermal vacuum chamber


Product Description

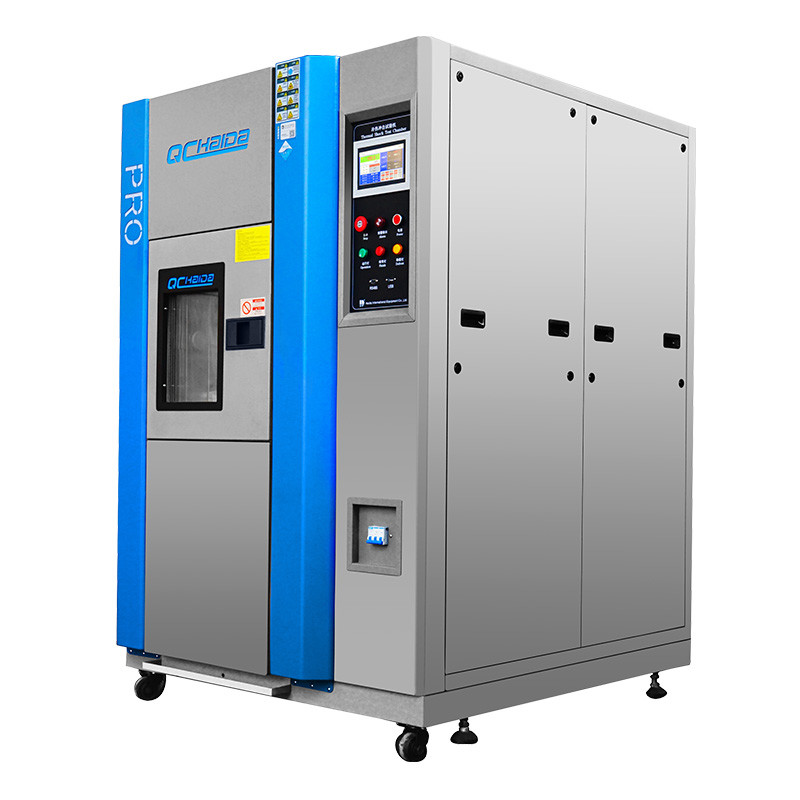

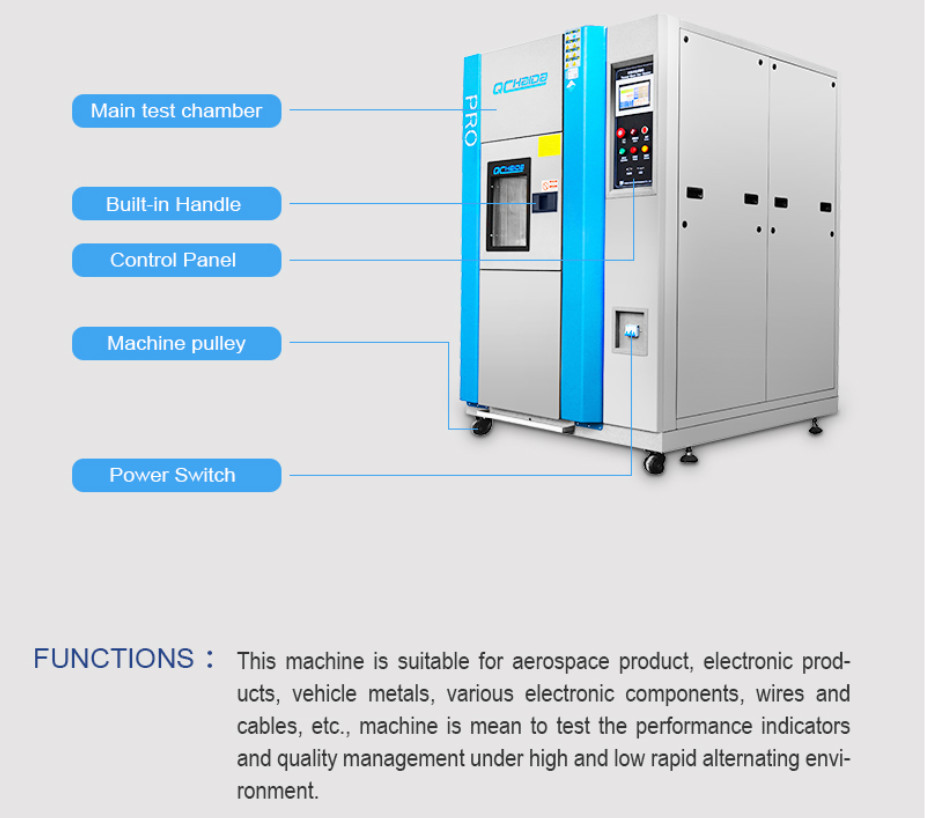

Air Cooling Thermal Test Chamber , Simulate Environment Hot And Cold Shock Test Chamber





Advantages



1. To simulate test environment with different temperature and humidity

2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

4. Uncover test unit weakness in a short-term test with accelerated time effect


Air Cooling Thermal Test Chamber , Simulate Environment Hot And Cold Shock Test Chamber 0



Technical Parameters



Technical Index HD-E702-800-K40
Internal dimension (W*D*H) 1000*800*1000mm
External dimension (W*D*H) 1500*1180*1900mm
Humidity range 20~98%R.H. (Refer Image below)
Humidity accuracy ±3%R.H
Cooling speed 1℃/min in average (without loading)
Heating speed 3℃/min in average (without loading)
Internal chamber material SUS#304 stainless steel, mirror finished
External chamber material Stainless steel with paint spray
Controller

LCD touch screen, programmable control temperature and humidity

Can set different parameter for cyclic test

Insulation material 50mm high density rigid Polyurethane foam
Heater Explosion-proof type SUS#304 stainless steel fins radiator pipe heater

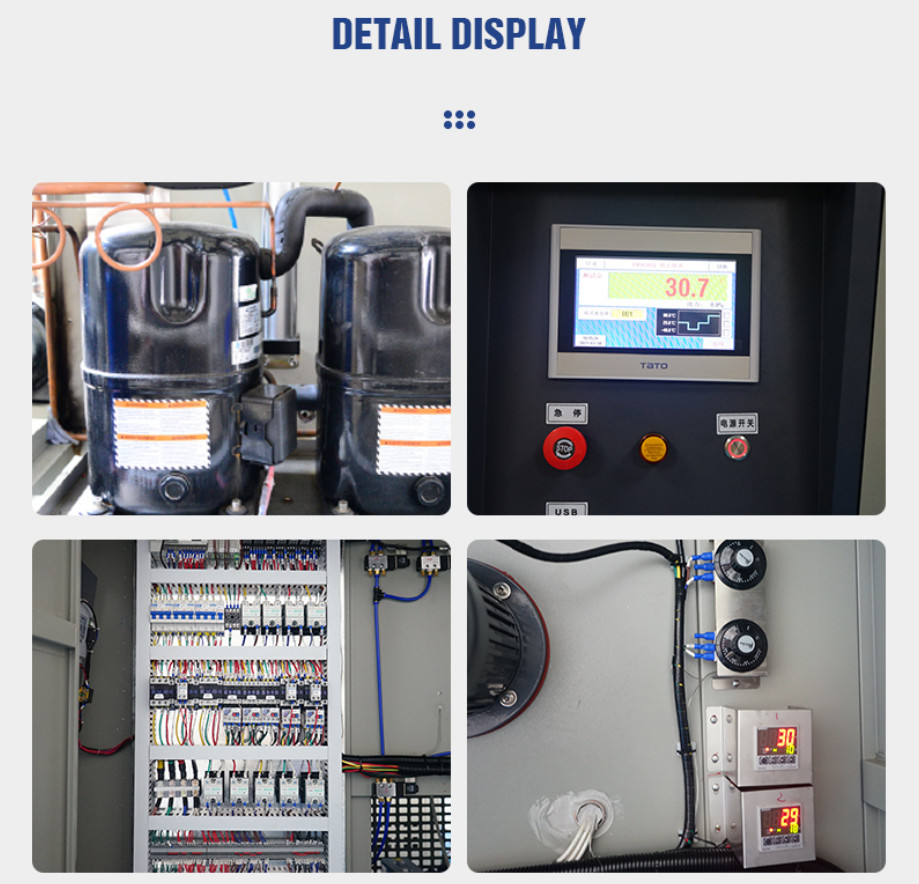

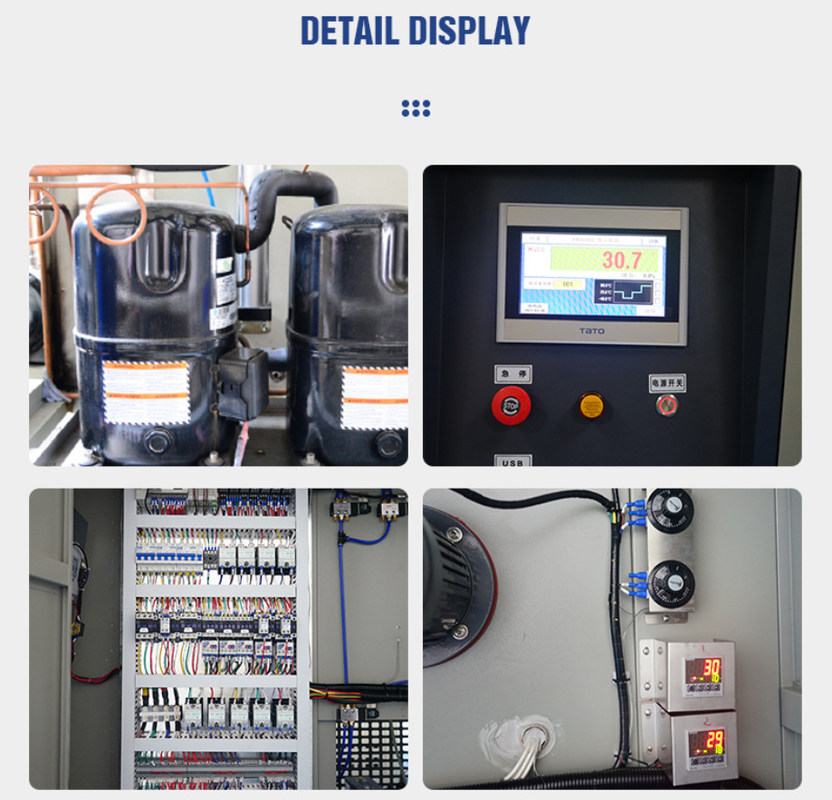

Compressor France Tecumseh compressor
Temperature sensor PT-100 dry and wet bulb sensor
Observation window Tempered glass
Testing hole Diameter 50mm, for cable routing
Power supply source three-phase, 380V±10%, 50/60Hz
Gross Weight 500kg

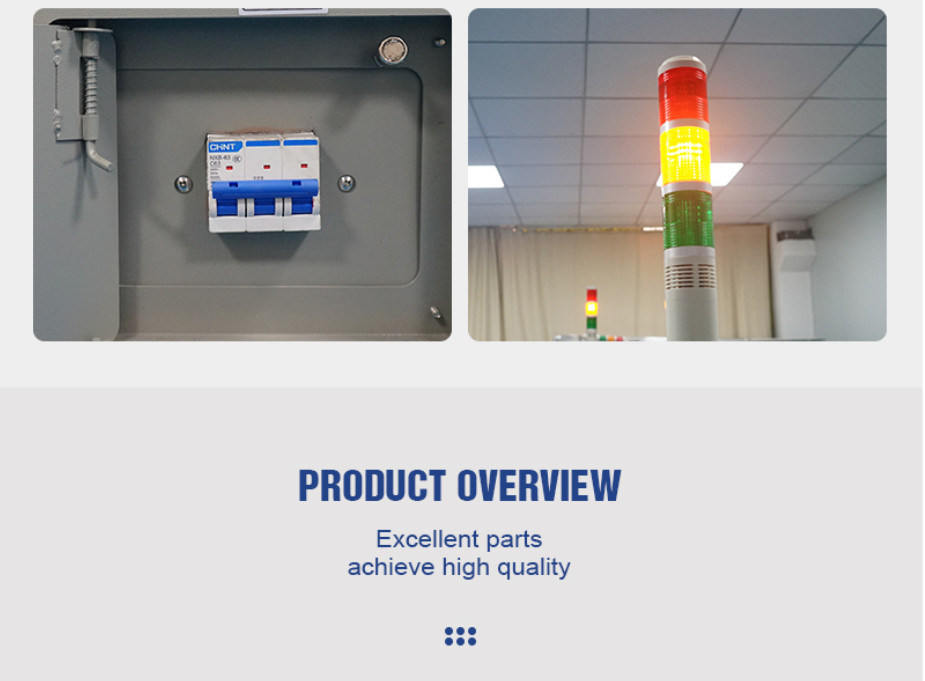

Safety protection device

Protection for leakage

Over-temperature

Compressor overvoltage and overload

Heater short circuit

Water shortage











































































Test Standard



GB/T 11048,ISO 11092,ASTM F 1868-09,ASTM D 1518-85,JIS L1096-2010,ASTM F 1868-02
