2MP Pixel USB2.0 Connect Textile Testing Equipment For Woven Knitted Fabric

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W125
Minimum Order Quantity: 1 Set
Price: Negotiable

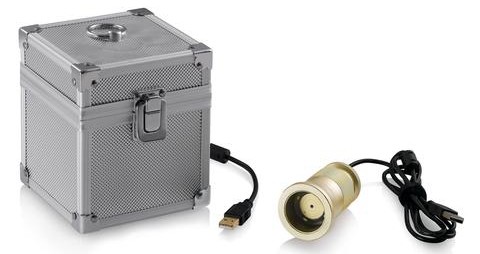

Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Sample Type: Woven Fabric, Knitted Fabric Connect: USB2.0
Dimension: 11cm(L)*11cm(W)*13cm(H) Weight: 600g
Light Source: LED Measurement Direction: Vertical And Horizontal
High Light:

USB2.0 Connect Textile Testing Equipment


2MP Pixel Textile Testing Equipment


Threads/10mm Textile Testing Equipment

Product Description

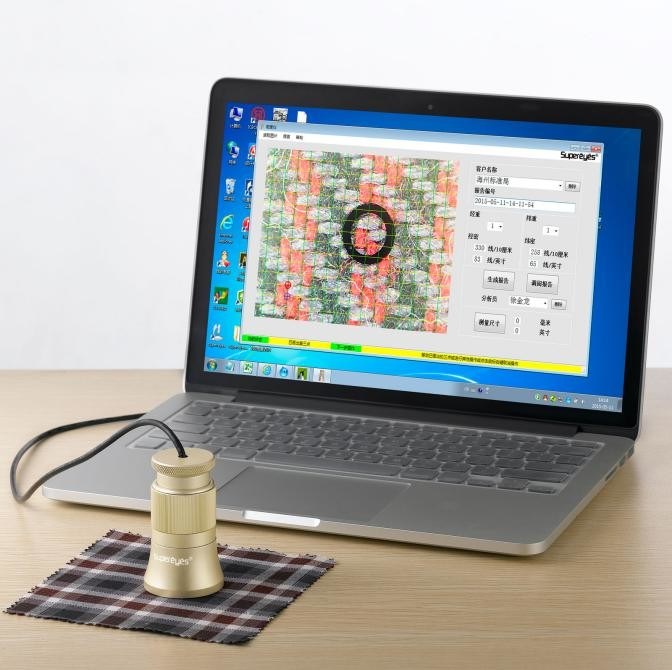

2MP Pixel USB2.0 Connect Textile Testing Equipment For Woven/Knitted Fabric




Application2MP Pixel USB2.0 Connect Textile Testing Equipment For Woven Knitted Fabric 0


Thread Density Counter, to determine the thread density of woven fabrics and wire meshes as well as the loop density of knitted fabrics.



Technical parameters


Technical Index HD-W125
Magnification times of camera 1~50 times
Measurement method 5threads/each or 10threads/each
Sample type woven fabric, knitted fabric
measurement direction Vertical and horizontal
Display threads/10mm and threads/inch
pixel 2MP,1600x1200,640x480.320x240
light source Windows7/Xp/Vista/Mac OS/Linux
light source LED
Connect USB2.0
Dimension 11cm(L)*11cm(W)*13cm(H)
Weight 600g



1. Chinese or English interface can be optional.

2. After the fabric image is amplified, calculated the density by specific software, to solve the traditional problem that caused visual fatigue by observing by human eyes.

3. Portable camera with USB interface can be directly connected with computer;

4. "Automatic Identification", "logo identification", "artificial recognition" three test functions are available to ensure different fabric can be measured.

5. Software has a calibration memory function, user can recognize different image on the same cloth.

6. After calibration, the software automatically shows a standard line, to verify if the calibration from user is accurate.






textile testing equipment
