800kPa Automatic Textile Testing Equipment Hydraulic Bursting Strength Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W813
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Net Weight: 125kg
Air Requirements: 600-800kPa Diaphragm Rubber Thick: ≤ 2 Mm
Pressure Measurement Range: 2000kPa, L/C : 1kPa Use: Textiles,Non-wovens
Dimensions: 550 X 450 X 700 Mm Safety Sensor: Over Scale Auto-stop
High Light:

800kPa Textile Testing Equipment


ASTM D3786 Textile Testing Equipment


Hydraulic Bursting Strength Tester

Product Description

800kPa Automatic Textile Testing Equipment , Hydraulic Bursting Strength Tester





Hydraulic Bursting Strength Tester is used for all kinds of textiles, knitted fabrics, paper, nonwovens, leather and other materials, in the warp and weft and each direction and force at the same time (elastic diaphragm method), tensile resistance, dilatancy performance measurement.



Testing Standard


GB/T7742.1 Textiles -- Bursting properties -- Part 1: Determination of bursting strength and dilatancy -- Hydraulic method, ISO 13938.1, ASTMD3786, JISL1018.6.17


Technical Details


Technical Index HD-W813
Pressure measurement range 2000kPa, L/C : 1kPa
Distension measurement range Up to 75 ± 0.02 mm
Measuring areas 7.55cm² (Ø 31mm) and 50cm² (Ø 79.8mm)
Unit of measurement kPa - kgf/cm² - mmHg - lb/in² - atm
Test methods Constant Rate - Constant Pressure - Constant Distension –Timing
Hydraulic system rate of flow (adjustable) 20-600mL/min
Hydraulic oil Glycerine 85%, distilled water 15%
Safety sensor Over scale auto-stop
Diaphragm rubber thick ≤ 2 mm
Data port RS232 port for printer connection and 3 pin Mini-DIN connector for PC
Dimensions 550 x 450 x 700 mm
Power supply 220V,50Hz
Air requirements 600-800kPa
Net Weight 125kg

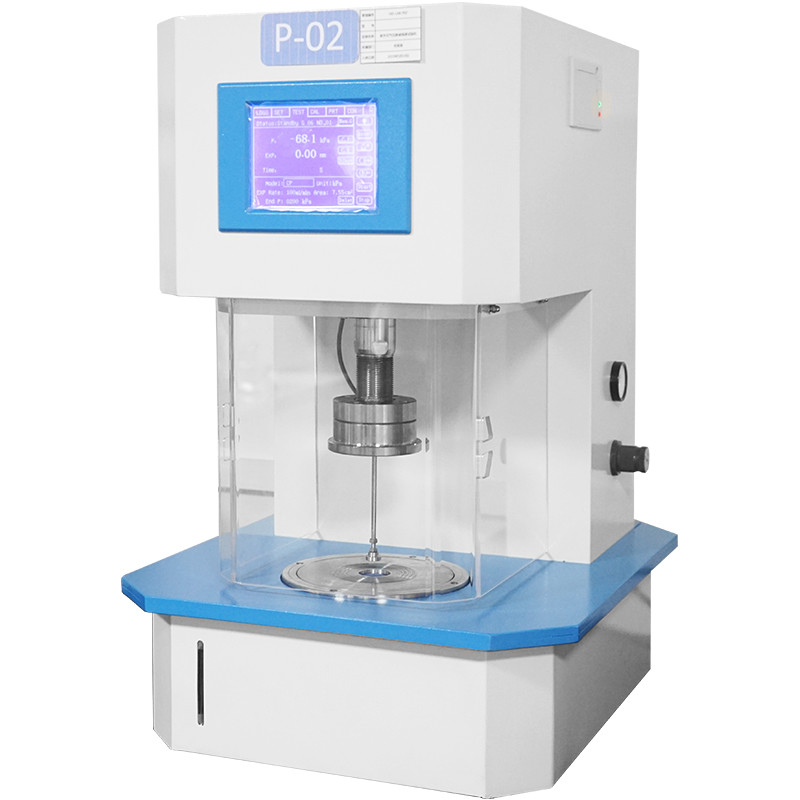

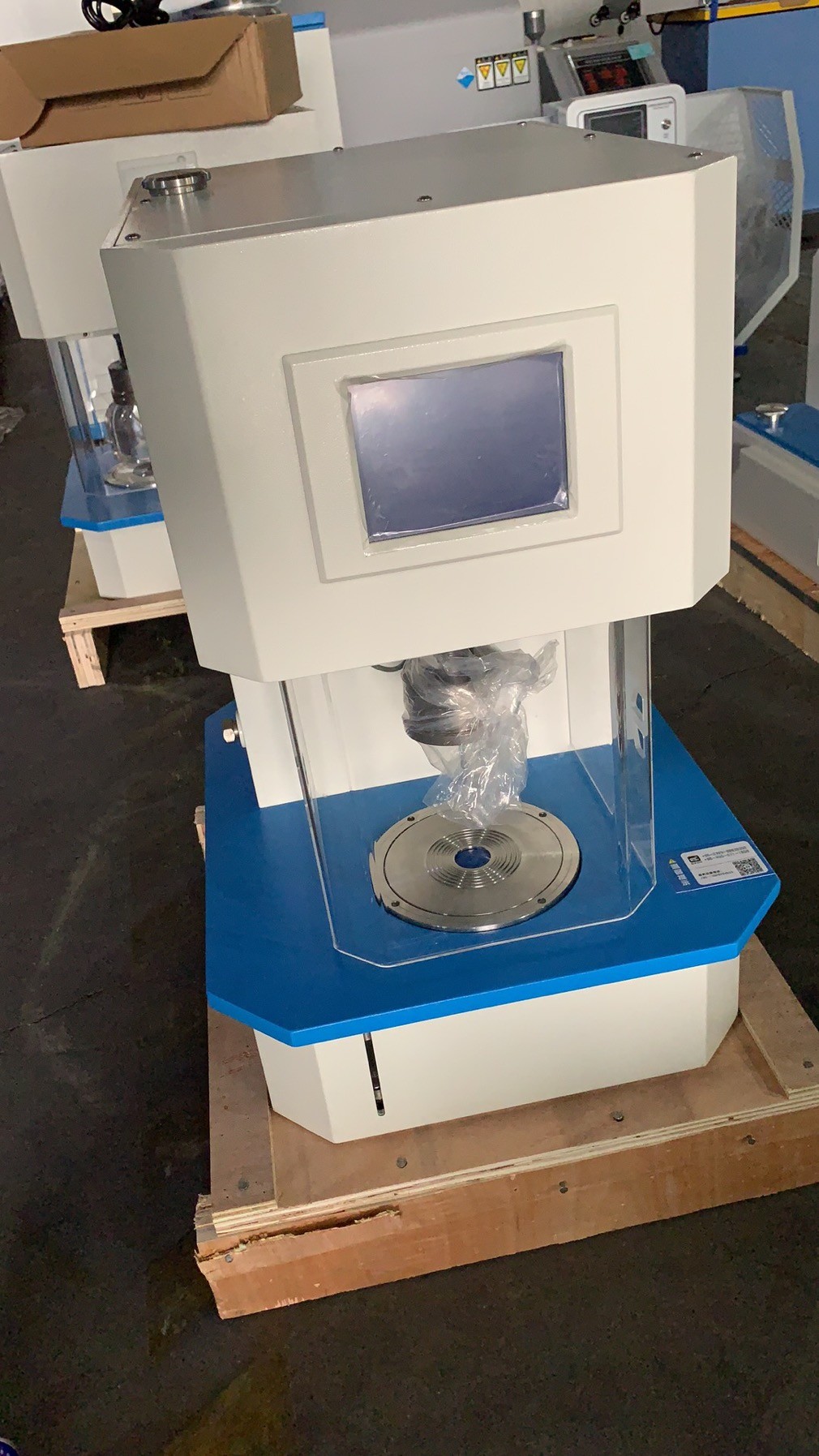

hydraulic bursting strength tester        hydraulic bursting strength tester
