| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W825 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Measuring Range: | 500pa-200kpa |
|---|---|---|---|
| Water Pressure Rise Rate: | 10 Or 60 CmH2O/min | Accuracy: | 0.2%FS |
| Water Tank Capacity: | 3.7Ld | Power Source: | 1phase, AC220± 10%, 50 Hz |
| High Light: | ISO 811 Fabric Hydrostatic Pressure Tester,3.7Ld Fabric Hydrostatic Pressure Tester,200kpa Strength Test Machine |
||
Fabric Hydrostatic Head Pressure Water Penetration Test Machine Hydrostatic Head Tester
Application
Hydrostatic Head Tester, used for determining accurately and swiftly the resistance of fabrics (coated, uncoated & non woven) and films to water penetration under pressure while firmly clamped in the test rig of standard area, by means of dynamic test method and static test method. The bank is linked to a test head to which the specimen is clamped quickly and stably by means of a hand wheel.
Testing standard
AATCC 127, ISO 811, ISO 1420, GB/T4744, FZT01004 , DIN53886 , JIS L1092, EN20811, EN 13726-3
Technical parameters
| Technical Index | HD-W825 |
| Measuring range | 500pa-200kpa |
| Water pressure rise rate | 10 or 60 cmH2O/min |
| Accuracy | 0.2%FS |
| Unit | cmH2O, Pa, kPa, mmHg, mmH2O, PSI, Bar (optional) |
| Sample chuck area | 100cm² |
| Water tank capacity | 3.7Ld |
| Extarnal Dimensions | 600x460x680mm |
| Weight | 50kg |
| Power source | 1phase, AC220± 10%, 50 Hz |
| Test methods | Boost test, Constant pressure timing test, Water leakage test, Deflection test |
Accessories:
| Standard accessories | 1Set | 100cm2 testing sets |
| 1Set | Calibration plate | |
| 1pc | Rubber ring | |
| 1pc | Power line | |
| Optional accessories | Optional | Fixtures of other testing area |
Features
1. This instrument is controlled by microcomputer, digital display, using high precision pressure sensor
2. The cloth sample clamping device is made of high quality stainless steel.
3. Select high-precision pressure sensor, the measurement result is accurate, stable and reliable.
4. The instrument is easy to operate and convenient

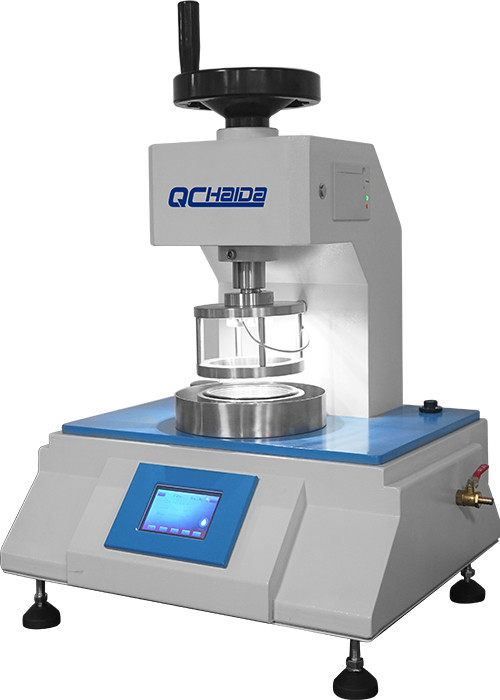

Hydrostatic Pressure Tester Image
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
