LCD Display Backlight Textile Testing Equipment Elmendorf Tearing Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W812
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Net Weight: 58KG
Template Size: As Per ASTM Standard Display: LCD Display Backlight
Dimensions: 490 X 430 X 680 Mm Slit Size: 20 ± 0.2 Mm
High Light:

ASTM Textile Testing Equipment


16N Textile Testing Equipment


Elmendorf Tearing Tester

Product Description

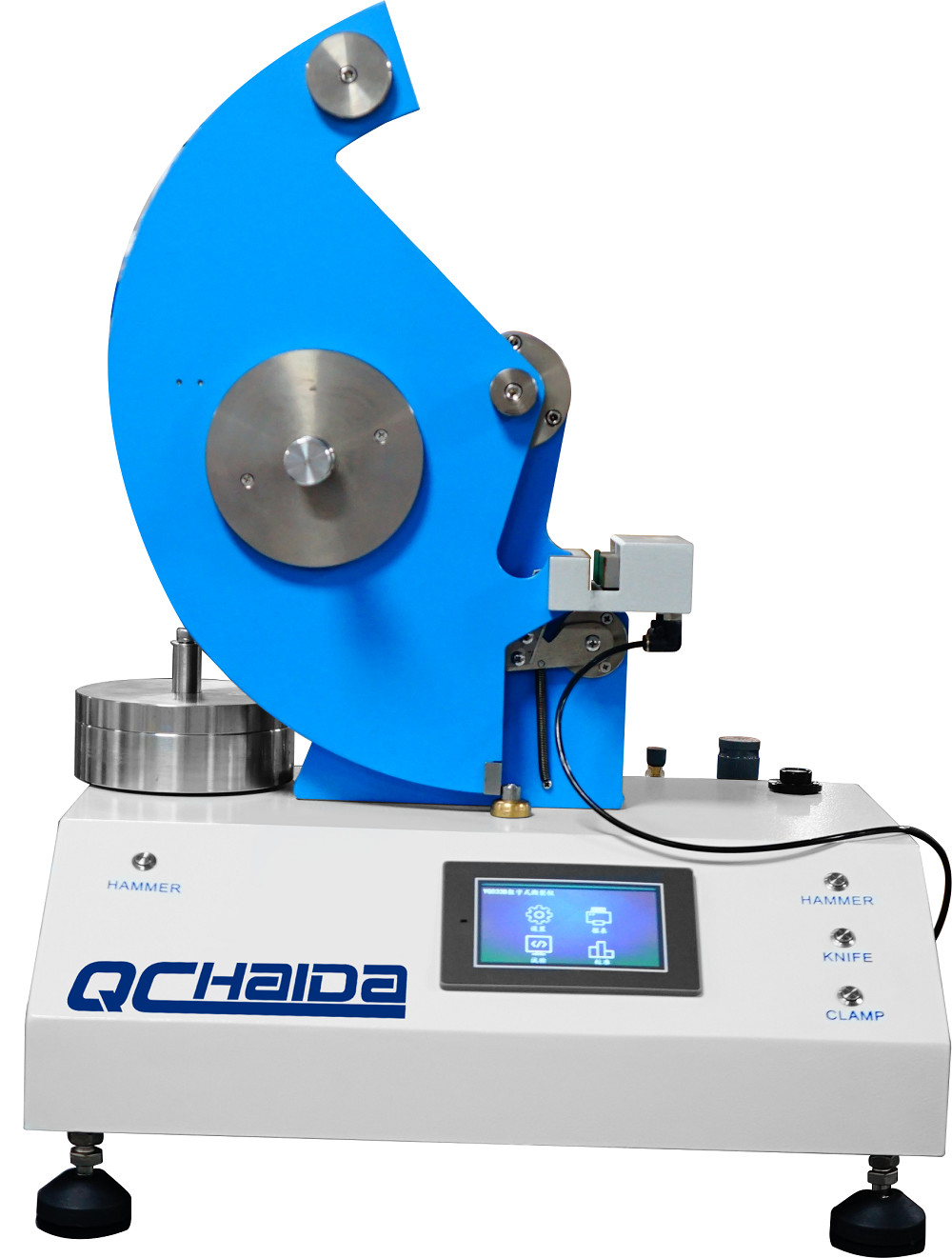

LCD Display Backlight Elmendorf Tearing Tester Textile Test Machine




Textile: ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17

Plastics: ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141

Nonwovens: ASTM D5734, WSP 100.1

Paper: APPITA P 400,ASTM D 689,BS 4468,CSA D9,DIN 53128,EN 21974,ISO 1974




Elmendorf Tearing Tester to determine the ballistic tearing strength of woven fabrics, plastic films, paper, or other similar materials.


Standard Features


Technical Index HD-W812
Measuring pendulum range


32N (By adding Augmenting weight)

64N (By adding Augmenting weight)

Unit of measurement CN, N , gf , lbf
Distance between Clamps 7.0 ± 0.25 mm
Tearing Distance 43 ± 0.15m
Slit Size 20 ± 0.2 mm
Tollerance range 20-80 % of each full scale, settable range or full scale
Angular resolution high resolution digital optical encoder
Display LCD display backlight
Data port RS232 port for printer connection and 3 pin Mini-DIN connector for PC.
Statistics Force min. max. mean, CV%, St. Deviation, Range%
Template Size As per ASTM standard
Dimensions 490 x 430 x 680 mm
Power supply 220V, 50Hz
Net Weight 58KG































1.Latest design with modern sophisticated look.

2.Pneumatic operated clamping and pendulum release ensures repeatable test result.

3.The built-in microcomputer handles all calculations and set-up functions.

4.Tearing force displayed digitally.

5.Selectable units:newtons,grams-force,millinewtons,lbs-force,percentage of pendulum capacity.

6.Easy to calibrate using the check weights(optional).

7.PC & PRINTER connection.



Elmendorf tearing tester
