ISO9073 99.99s±0.01s Timer Tensile Strength Tester For Non Woven 220V Power

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W828
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power Source: 220V, 50Hz Dimensions: 520 X 410 X 630 Mm
Timer: 20~99.99s±0.01s The Size Of The Pierce Disk: 100 X100x25 Mm (LxWxH)
Rate Of Discharge: 25 Ml/ (3.5 ± 0.25)s Base Plate: Made Of Transparent Acrylic Sheet Appro. 125 X 125 (mm) Square And 5 Mm Thick.
High Light:

ISO9073 Tensile Strength Tester

,

520 x 410 x 630 mm Tensile Strength Tester


Product Description

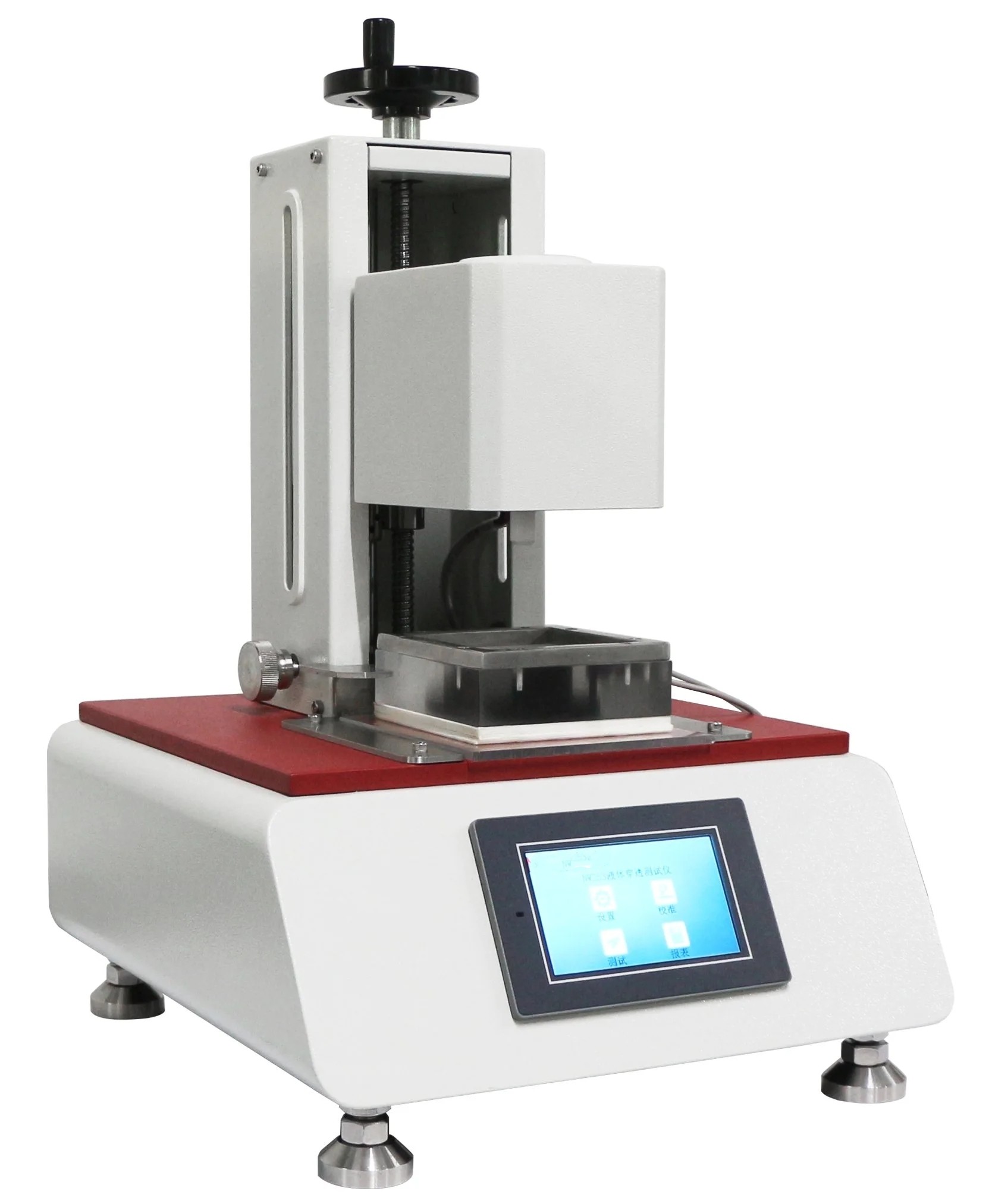

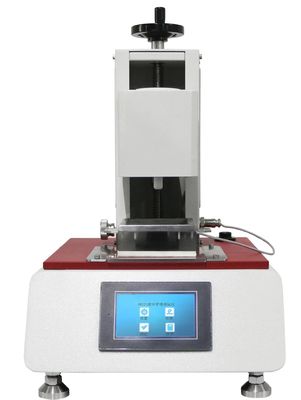

ISO9073 99.99s±0.01s Timer Tensile Strength Tester For Non Woven 220V power​​







Test standards



WSP 70.3, WSP 80.10,GB/T24218.8, GB/T24218.13, ISO9073, FZ/T60017, etc.







Standard parameters​



Technical Index HD-W828
Timer 20~99.99s±0.01s
Base plate

Made of transparent acrylic sheet

Appro. 125 x 125 (mm) square and 5 mm thick.

The size of the pierce disk 100 x100x25 mm (LxWxH)
The total quality of the penetration plate (500± 5) g
Rate of discharge 25 ml/ (3.5 ± 0.25)s
Packaging Dimensions 520 x 410 x 630 mm
Gross Weight 32kg
Power source 220V, 50Hz







































Product Description



The test method is designed to determine the liquid strike through time of non-woven cover stocks.








tensile strength tester        tensile strength tester
