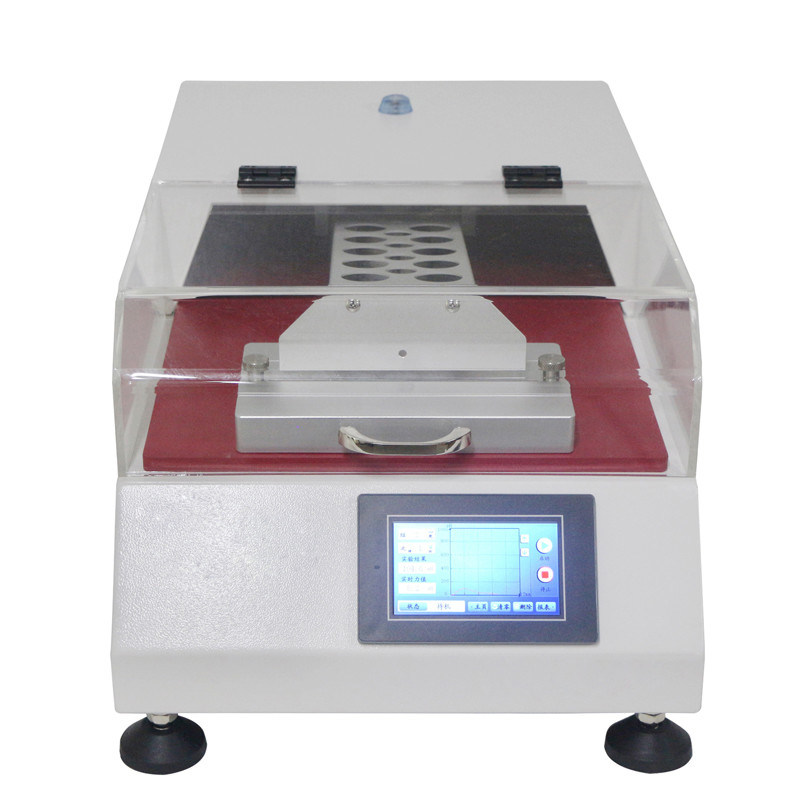

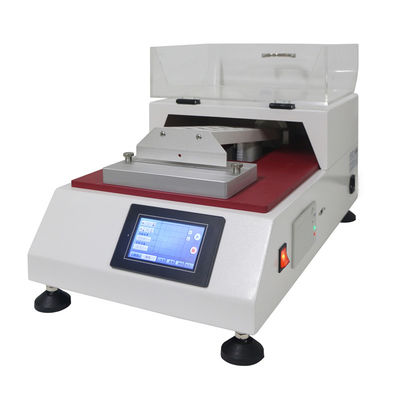

Electronic GB/T 8942 Textile Testing Equipment Softness Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W254
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Indication Error: ≤±1%FS
Variability Of Value: <1% Test Head Stroke: (12±0.24)mm
Test Speed: (1.2±0.24)mm/s Size: 560*340*250
High Light:

GB/T 8942 Textile Testing Equipment


Thermosensitive Micro Printer Textile Testing Equipment

Product Description

GB/T 8942 Softness Tester textile testing tester ISO Certification



Technical parameters


Technical Index HD-W254
Measurement range 10~1000mN; resolving power:0.1mN
Indication error ≤±1%FS
Variability of value <1%
Test Head Stroke (12±0.24)mm
Test Head press depth 8mm+0.5mm
Slit width 5mm; 6.35mm;10mm,20mm(the width error should not exceed ±0.05mm)
Test speed (1.2±0.24)mm/s
Printer Thermosensitive micro printer
Power supply AC 220±10V,50Hz
Weight 25kg
Size 560*340*250
Testing standard


GB/T 8942 the determination of the softness of paper






The softness tester simulates the softness that people feel when they touch a specimen. Used for measuring the softness of paper towels, tobacco and fiber products.
softness tester
Our serives

1.Design & Production : Solution Consultation for each order

Recommend the most cost -performance machine

Research & Develop the suitable one for Special- designed Model.

2.Shipping & Delivery: One-Stop Service

Production- Deliver to your door - Installation & Training- Technical Support


1 year warranty with lifetime technology support

4.After-Sale Service

React within 2 Hours

Video inspection & on-site service combined.
