| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W825 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Measuring Range: | 500pa-200kpa |
|---|---|---|---|
| Water Pressure Rise Rate: | 10 Or 60 CmH2O/min | Accuracy: | 0.2%FS |
| Water Tank Capacity: | 3.7Ld | Power Source: | 1phase, AC220± 10%, 50 Hz |
| High Light: | Fabric Hydrostatic Pressure Tester,200kpa Fabric Hydrostatic Pressure Tester,100cm2 Strength Test Machine |
||

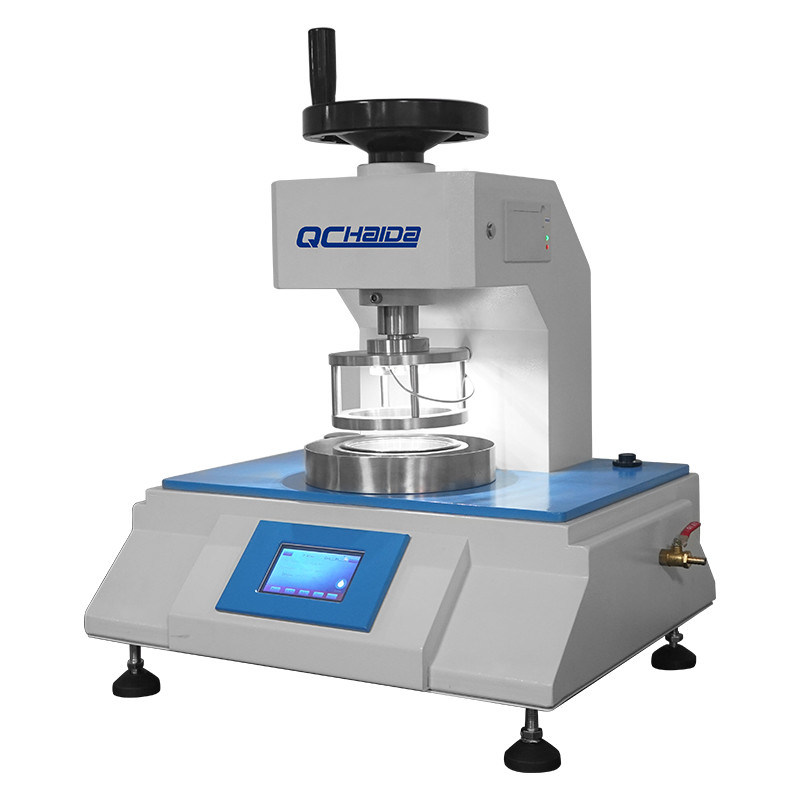

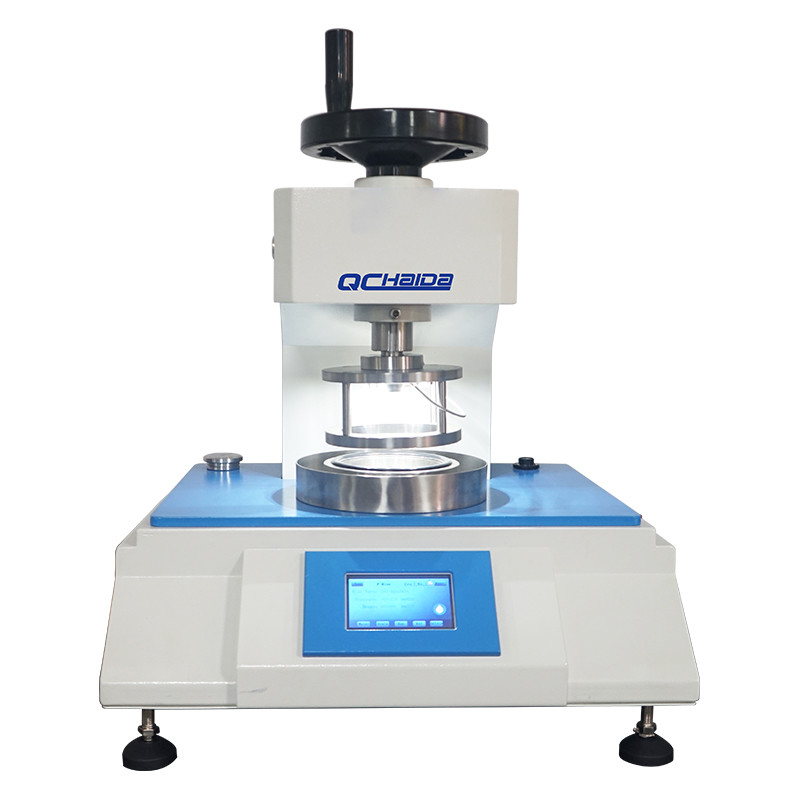

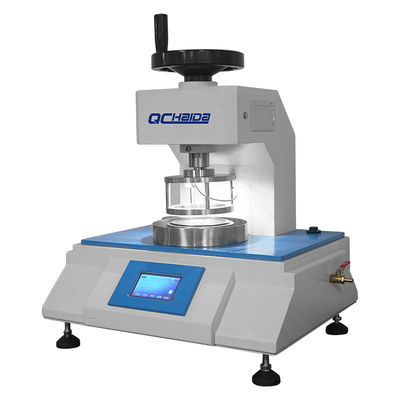

Fabric Hydrostatic Pressure Tester Strength Test Machine Textile Testing Instruments
Fabric Hydrostatic Pressure Tester Testing standard
AATCC 127 DIN 53886 JIS L1092 EN ISO 20811 ISO 811
Technical parameters
| Technical Index | HD-W825 |
| Measuring range | 500pa-200kpa |
| Water pressure rise rate | 10 or 60 cmH2O/min |
| Accuracy | 0.2%FS |
| Unit | cmH2O, Pa, kPa, mmHg, mmH2O, PSI, Bar (optional) |
| Sample chuck area | 100cm² |
| Water tank capacity | 3.7Ld |
| Extarnal Dimensions | 600x460x680mm |
| Weight | 50kg |
| Power source | 1phase, AC220± 10%, 50 Hz |
| Test methods | Boost test, Constant pressure timing test, Water leakage test, Deflection test |
Company Information
Haida International Equipment Co,Ltd is a National "High-tech Enterprise"(certified in 2016),integrating R&D,manufacturing and brand marketing.Our textile testing instruments meets with the requirements of ISO, ASTM, AATCC, BS, GB, DIN, EN, JIS. We are committed to providing high quality testing instruments.We always adhered to the strict and professional concept and strictly control the quality of products, and provide our customers with high-quality testing instruments,first-class service and competitive prices.
We are looking forward to cooperating with customers all over the world. We can not only offer standard textile testing machines, but also customized machines according to your request. Our professional team and global agents(United Kingdom, Vietnam, Bengal, Malaysia&Singapore, Turkey and Pakistan)will provide you with comprehensive pre-sales consultation and timely after-sales service.Don't hesitate to tell us your requirement, we will do our best to meet your needs.
