High Temperature Muffle Furnace Textile Testing Equipment Digital Controller

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-E805
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Supply Source: Single-phase, 220V, 50Hz
Temperature Range: Max. 1200℃ Furnace Materials: Aluminium Oxide
Use: Fabrics, Leather Thermal Insulation Material: Refractory Brick
High Light:

Muffle Furnace Textile Testing Equipment


PID Textile Testing Equipment

Product Description

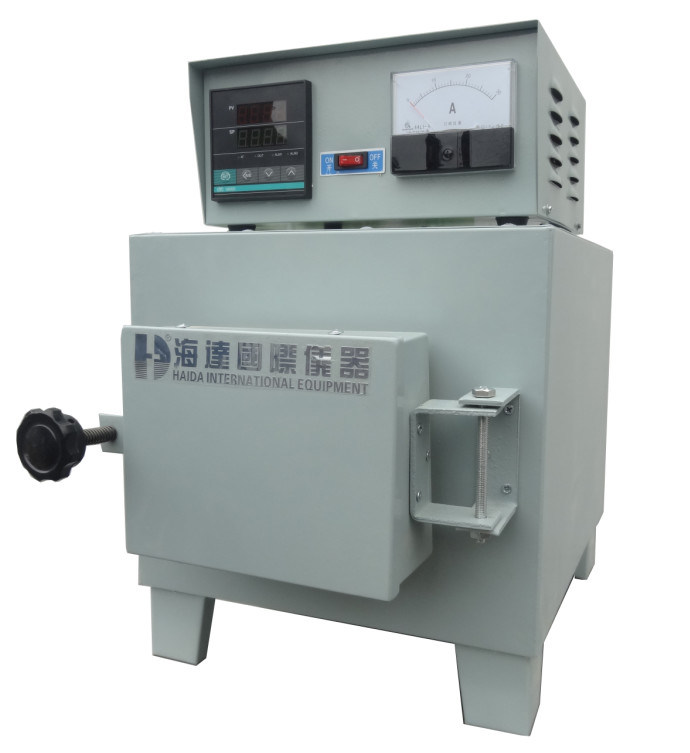

High Temperature Muffle Furnace , Textile Testing Equipment Digital Controller




 Standard Parameters​


Technical Index HD-E805
Inner dimension (W*D*H) 200*300*120mm
Outer dimension (W*D*H) 480*460*630mm
Temperature range Max. 1200℃
Temperature precision +/- 5°C
Controller Digital temperature controller
Heating element thermal fuse
Thermocouple K-thermocouple
Furnace materials aluminium oxide
Thermal insulation material refractory brick
Voltage single-phase, 220V, 50Hz,3kw
Gross weight 120kg





















Product Advantages


High-quality materials and stable furnace temperature control system ensure the reliability of the experimental data. The kiln adopts a new type of ceramic fiber material as the furnace material and a high-quality silicon carbide rod as the heating element, the temperature controller uses the microcomputer PID control module, has the precise temperature control and the constant temperature request.

High Temperature Muffle Furnace                         High Temperature Muffle Furnace





company information


Haida International Equipment Co,Ltd is a National "High-tech Enterprise"(certified in 2016),integrating R&D,manufacturing and brand marketing.Our textile testing instruments meets with the requirements of ISO, ASTM, AATCC, BS, GB, DIN, EN, JIS. We are committed to providing high quality testing instruments.We always adhered to the strict and professional concept and strictly control the quality of products, and provide our customers with high-quality testing instruments,first-class service and competitive prices.





How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
