220V LCD Touch Panel Color Fastness Tester Textile Testing Machine AATCC 61

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W805
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Distance From Shafts: 45 Mm
Control Mode: LCD Touch Panel Power Supply: 220V, 50Hz
Dimensions: 800 X580 X 1000 Mm Use: Cotton, Wool, Silk
High Light:

LCD Touch Panel Color Fastness Tester


AATCC 61 Color Fastness Tester


45mm Distance Color Fastness Tester

Product Description

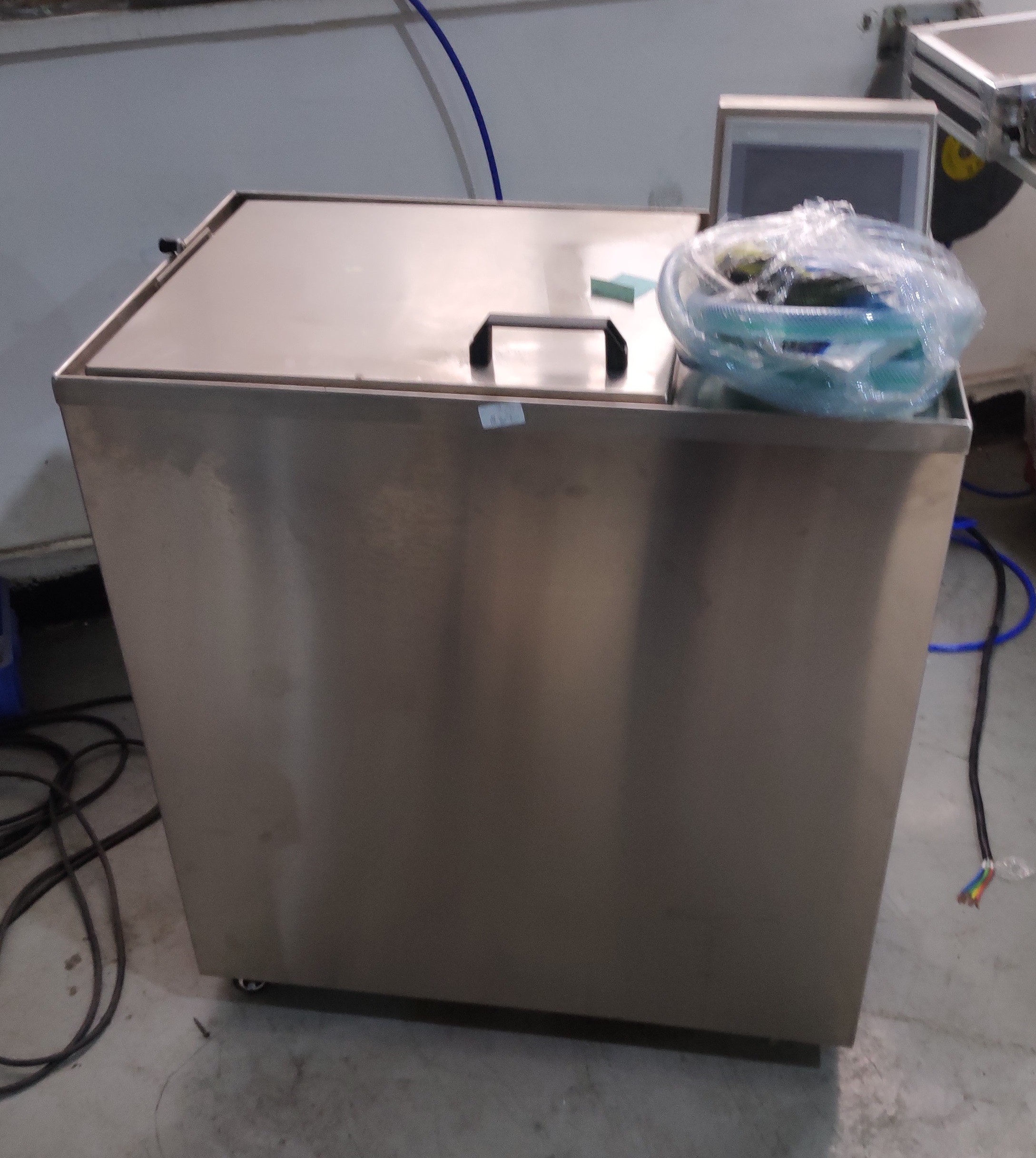

220V LCD touch panel Color Fastness Tester , Textile Test Machine AATCC 61





Testing standard


ISO 105-C06,ISO 105-C08,ISO 105-C09,ISO 105-C10,ISO 105-D01,ISO 105-E03

AATCC 61,190 AATCC 86,132

M&S C04,M&S C05, M&S C10A, M&S C12A, M&S C37

BS 1006,JIS L0844




Technical details


Technical Index Type 1 Type 2
Number of Beakers(Test Vessels) Total 12Nos.(6 Nos.(For ISO) and 6Nos. For AATCC) Total 18Nos. (12 Nos.(For ISO) and 6Nos. For AATCC)
Standard seal for beakers 12 no’s special neoprene gaskets
Volume of each breaker as per ISO:550 ml; as per AATCC:1200ml
Distance from shafts 45 mm
Speed of rotation 40 ± 2 rpm
Temperature Controller TI-LM35 type (up to 99.9°C) L/C – 0.5°C
Temperature Regulation ± 2.0°C (as per ISO)
Control mode LCD touch panel
Power supply 220V, 50Hz
Weight 100 Kg 120kg
Dimensions 800 x 500 x 1000 mm 800 x580 x 1000 mm
Power AC380V,50Hz,5KW



Color Fastness Tester is applied to determine the dye washing color fastness, resistant to washing, resistant to dry cleaning and resistant to shrink of cotton, wool, silk jute and chemical fiber textiles.






  color fastness equipment            color fastness equipment



1.To determine the Colour Fastness to Washing or Dry Cleaning.

2.Latest Ergonomic design with customer friendly control panel.

3.Robust completely stainless steel body gives long life operations & durability.

4.Temperature upto 95°C with a Digital Temperature Controller.

5.Inching facility for loading and unloading of the beakers.

6.10Beakers of 550 ml. (For ISO)and 10beakers for 1200ml(For AATCC)

7.Special silicon gaskets for the beakers having very long life.

8.Touch control panel equipped with ISO&AATCC testing programs for easy operation.

9. No extra hardware, tools, or adapters are required for 1200ml containers.

10.Operators can enter and store custom designed tests.

11.Water bath is heated by stainless steel heater in a temperature rise rate of 2°C per minute.

12.Door safety switch inside the cabinet automatically stops the rotor from turning if the door is open.
