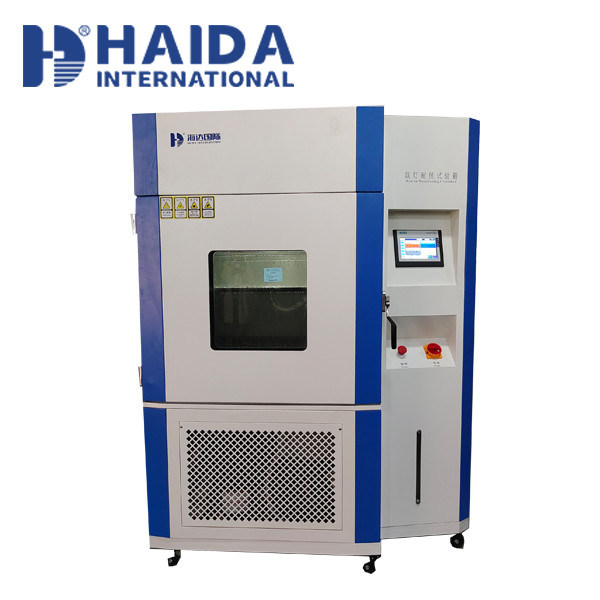

Electronic Textile Testing Air Cooling Light Fastness Tester

Basic Information
Place of Origin: China
Brand Name: Haida
Certification: CE ISO
Model Number: HD-E711
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 15 days after order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 set per month
Detail Information
Irradiance Strength: 0.55~1.3W/m2 Irradiance Accuracy: ±0.03W/m2/
Xenon Lamp Power: 2500W Rack Rotating Speed: 15 Liters
Weight: 5r/min Test Positions: 10 Pieces Of 145x 45mm, 5 Pieces Of 145x 75mm
High Light:

Light Color Fastness Testing Equipment


15 Liters Color Fastness Testing Equipment


Air Cooling Color Fastness Testing Equipment

Product Description

Electronic Textile Testing Air Cooling Light Fastness Tester




general specifications
Package size: (W x D x H) 1280×1150×2200mm
Power supply: AC380V±10%, 50/60Hz (can be specified)
Gross weight: 400kg


This machine is designed to meet the requirements of ISO 105 B02 and AATCC Test Method 16 standards. It has a rotating sample holder that allows precise control of key test parameters including spectrum, irradiance, relative humidity, chamber temperature and black standard temperature.

Determines the fading resistance of textile colors when exposed to artificial light (xenon arc lamps) representative of natural sunlight.


Testing standards

ISO 105-B02 Textiles -- Tests for color fastness -- Part B02: Color fastness to artificial light: Xenon arc fading lamp test

ISO 105-B04 Textiles -- Tests for color fastness -- Part B04: Color fastness to artificial weathering: Xenon arc fading lamp test

AATCC TM 16 – Option 3 Colorfastness to Light: Xenon-Arc

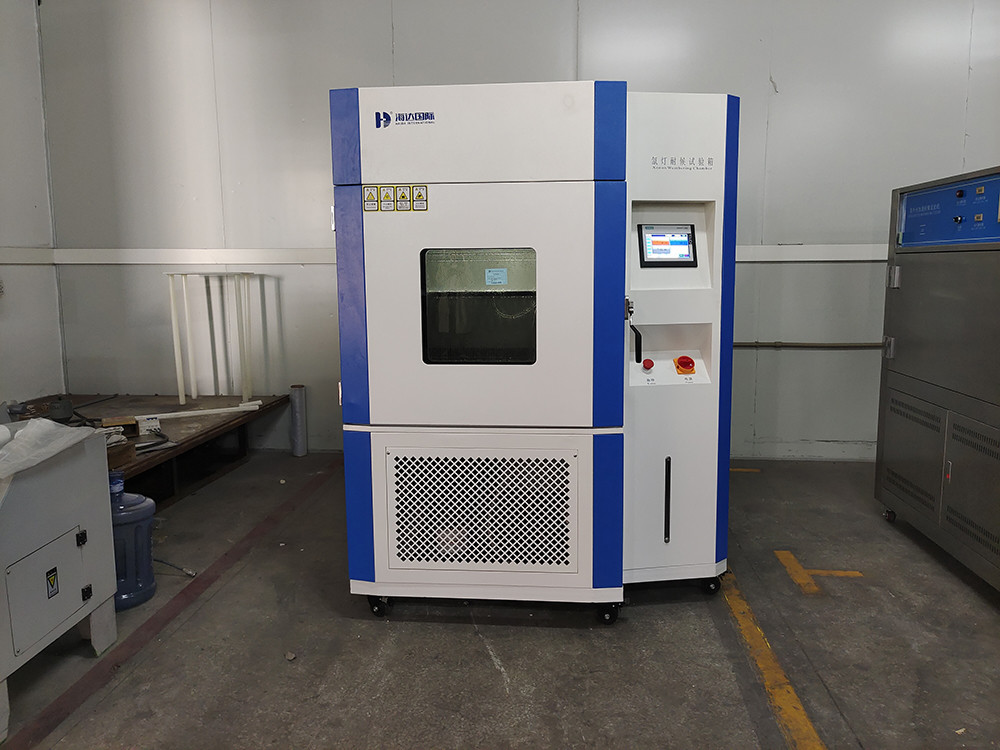

Electronic Textile Testing Air Cooling Light Fastness Tester 0




Color fastness testing equipment designed to meet the requirements of ISO 105 B02/B04/B06 and AATCC Test Method 16 standards. The Light & Xenon Test Chamber, to determine the color fastness, aging resistance of textiles, plastics, rubber products or materials by objecting to the simulated conditions of nature weather (daylight, rain, temperature and humidity, etc.).


Air Cooling Light fastness tester is also called xenon arc test chamber since it adopts a air-cooled long-arc-xenon lamp and rack sprays to provide both light and dark cycles and nature weather conditions. Due to its final testing purpose is to check the color fading features, people also name it as Fadeometer.

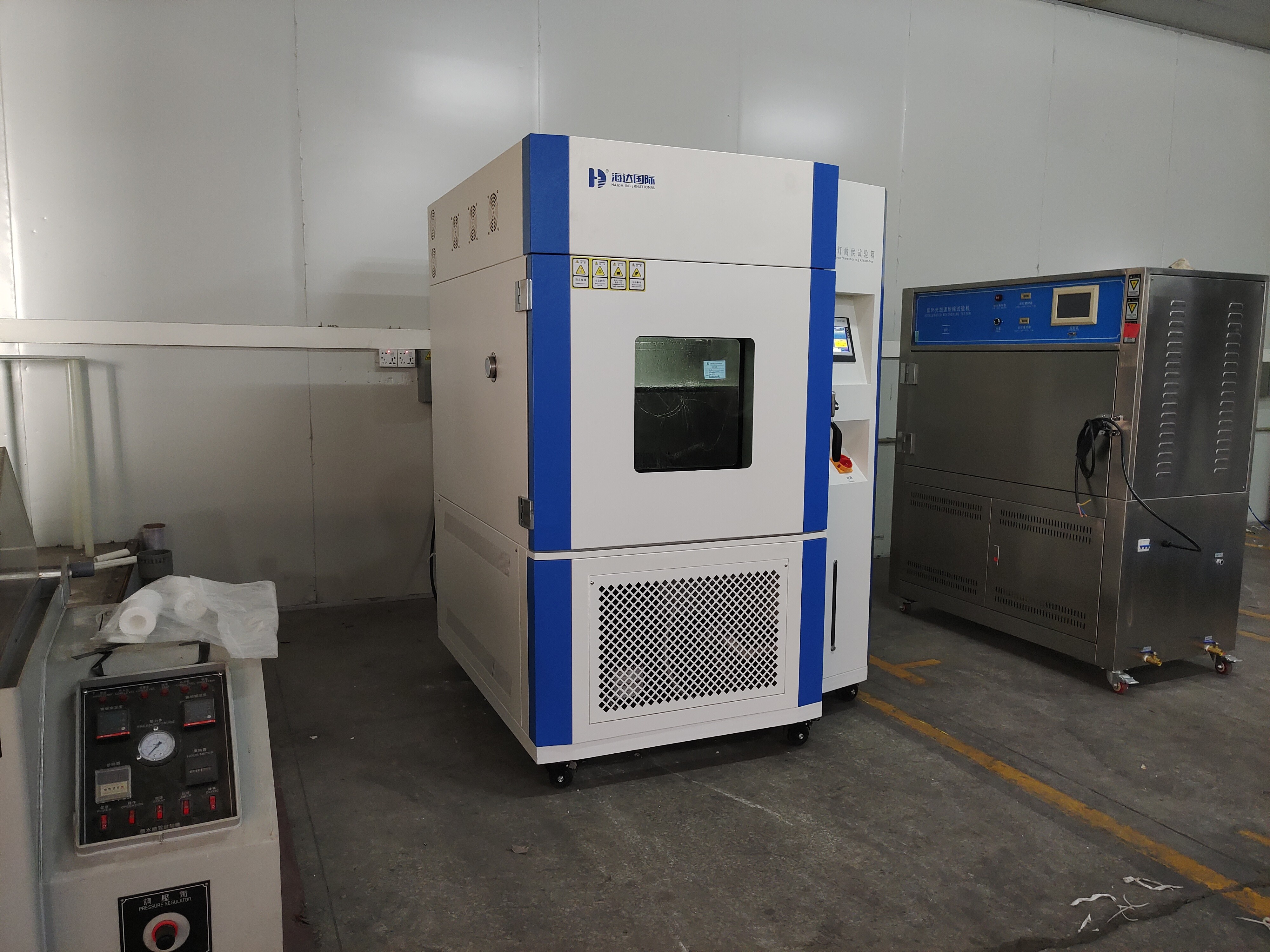

Electronic Textile Testing Air Cooling Light Fastness Tester 1


Technical parameters


Internal Dimension (W*D*H) 600×600×800
External Dimension (W*D*H) 1220×1100×2100
performance indicators Chamber temperature 10~95℃
Temperature accuracy ±5℃
Black panel temperature 30~110℃
Chamber humidity range 15%RH~85%RH
Humidity accuracy ±5%RH
Irradiance Range 420nm
Irradiance strength 0.55~1.3W/m2
Irradiance accuracy ±0.03W/m2/
Xenon lamp power 2500W air-cooled xenon arc lamp (recommend replacing lamps every 1200 hours)
Rack rotating speed 5r/min
Test Positions 10 pieces of 145x 45mm, 5 pieces of 145x 75mm
Exposure Area of each Test Position

ISO 65.25cm² (145 x 45) mm

AATCC 108.75cm² (145 x 75) mm

operation control system water spray system The water spray time can be set in 999 minutes, and the spray stop time can be set in 999 minutes
Accuracy range Setting/indication accuracy: temperature 0.1℃, humidity 1%RH
Temperature and humidity sensor Platinum resistance.PT100Ω/MV
Heating system Fully independent system, nickel-chromium alloy electric heating heater
humidification system External isolation, all stainless steel shallow surface evaporative humidifier
blackboard temperature Bimetal Blackboard Thermometer
circulatory system Temperature-resistant and low-noise air-conditioning motor. Multi-blade centrifugal fan
material Internal chamber material High-quality carbon steel plate, phosphating electrostatic spray treatment / stainless steel matte line hairline treatment
External chamber material SUS 304 # Stainless Steel, anti-rust
Sample holder material SUS 304 # Stainless Steel, anti-rust
Standard accessories radiation-proof glass windows-1 set, Xenon lamp-1 PC
safety protection Leakage, short circuit, over temperature, water shortage, motor overheating, overcurrent protection
Power supply AC380V±10% 50±0.5Hz,13W





1. Light intensity set digitally, real-time monitoring, automatically adjust to meet the different standards required for testing the stability of light source (420nm as standard,optional 340nm or 300 ~ 400nm or 300~800nm band monitoring)

2.Blackboard Thermometer (BPT), the Standard Blackboard Thermometer (BST), Irradiance detector and samples placed in the same position, a true reflection of the sample under test conditions, the data displayed as figures, charts, curves on the large color screen, no need to stop for observation.

3. Large colorful display, a variety of test monitoring modes (animation, digital, graphics) operate easily and clearly.

4. Sample holders can be timed independently to achieve different tests simultaneity in the same machine

5. Equipped with air-cooled rated 2500W arc-xenon- lamp, truly simulates the daylight spectrum.

6. Professional air circulation system, reduce operating costs.

7. Industrial temperature control (cooling) system offers quickly and smoothly control

8. Ultrasonic humidifier, professional dehumidification system to ensure accurate and stable humidity conditions.

9. Equipped with self-circulation system and air filtration system, significantly reducing the environmental requirements.

10.Quality assurance of 1000 hours continuous running.7. Refined software which perfectly reflects the needs of the operator.






Electronic Textile Testing Air Cooling Light Fastness Tester 2Electronic Textile Testing Air Cooling Light Fastness Tester 3Electronic Textile Testing Air Cooling Light Fastness Tester 4
