Knitted Fabric Cotton Rubbing Fastness Tester Silk Knitting Textile Testing Machine

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W804
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 30 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 20 Sets per Month Haida
Detail Information
Power: Electronic Control Way: Electrical Control
Diameter Of The Rubbing Finger: 16 ± 0.2 Mm Force On The Finger: 9 N ± 0.2 N (917.43 Gms)
Size Of Crock Square: (5 X 5) Cms Counter (Re-settable): 1~9999×100
Size Of Test Specimen: 25 X 5 Cm Dimensions: 750X200X200mm
High Light:

Cotton Rubbing Fastness Tester


Electronic Rubbing Fastness Tester


Silk Knitting Textile Testing Machine

Product Description

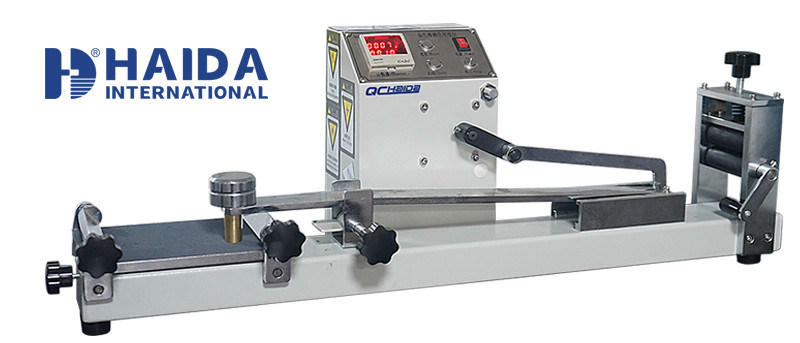

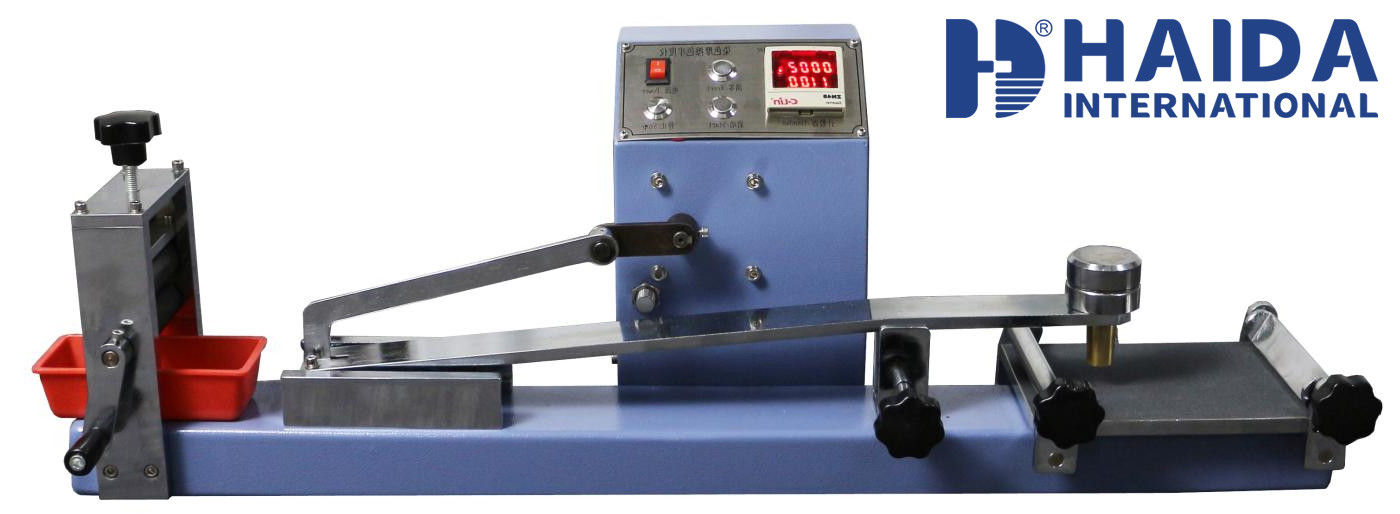

Knitted Fabric Cotton Rubbing Fastness Tester Silk/Knitting Textile Testing Machine




roducts description:

This machine is used for testing the transference of color from the surface of one material to another by either wet or dry rubbing. Specimens are rubbed with dry, standard cotton cloth (Crocking cloth) and again, if applicable, with wet cloth. The staining of the crocking cloths is assessed with a Grey Scale



To determine color fastness of textile to dry or wet rubbing.


Testing standard

AATCC 8 Colorfastness to Crocking: AATCC Crockmeter Method

AATCC 165 Colorfastness to Crocking: Textile Floor Coverings—Crockmeter Method

ISO 105-X12 Textiles -- Tests for colour fastness -- Part X12: Colour fastness to rubbing

BS 2543, BS 3424: Part 14, M&S C08, IKEA IOS-TM-0002, Mercedes Benz DBL 7384


Test procedure

1. A coloured test specimen is clamped and is rubbed,under controlled conditions, against a white crocking cloth.

2. Colour transferred to the crocking cloth is assessed with a suitable Grey Scale.



Knitted Fabric Cotton Rubbing Fastness Tester Silk Knitting Textile Testing Machine 0



Products parameter:

Mode HD-W804-1
Control way Electrical control
Diameter of the Rubbing Finger 16 ± 0.2 mm
Force on the Finger 9 N ± 0.2 N (917.43 gms)
Size of Crock Square (5 x 5) cms
Test speed 60r/min
Center to center Traverse of the Finge 104 ± 3 mm
Counter (Re-settable) 1~9999×100
Size of Test Specimen 25 x 5 cm
Dimensions 750X200X200mm
Weight 21kg


Accessories supplied with this instruments

  • Main Unit: 01 No.
  • Crocking Cloths (Pack of 200 Nos.):02 Pkts.
  • S.S Spring Clips (For mounting Crock squares):02 Nos.
  • Sandpaper:02 Nos.
  • ‘U’ Shape Specimen Holder: 01 No.
  • This User’s Manual: 01 No.
  • Inspection & Conformance Certificate:01 No.
