| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-A801 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 300 Sets per Month Haida |
| Measuring Pendulum Range: | 16N 32N (By Adding Augmenting Weight) 64N (By Adding Augmenting Weight) | Unit Of Measurement: | CN, N , Gf , Lbf |
|---|---|---|---|
| Distance Between Clamps: | 7.0 ± 0.25 Mm | Tearing Distance: | 43 ± 0.15m |
| Slit Size: | 20 ± 0.2 Mm | Tollerance Range: | 20-80 % Of Each Full Scale, Settable Range Or Full Scale |
| Angular Resolution: | High Resolution Digital Optical Encoder | Display: | LCD Display Backlight |
| Blade: | Steel | Data Port: | RS232 Port For Printer Connection And 3 Pin Mini-DIN Connector For PC. |
| High Light: | HD Tensile Strength Test Equipment,64N Tensile Strength Test Equipment |
||

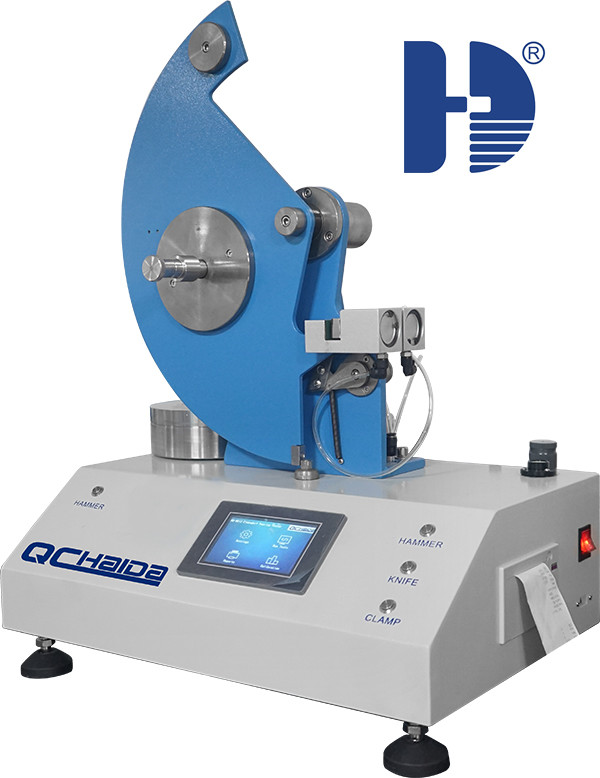

16N-64N HD Digital Display Paper Tear Test Tensile Strength Test Equipment
Application
To determine the ballistic tearing strength of woven fabrics, plastic films, paper, or other similar materials.
Standards
Textile: ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17
Plastics: ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141
Nonwovens: ASTM D5734, WSP 100.1
Paper: APPITA P 400,ASTM D 689,BS 4468,CSA D9,DIN 53128,EN 21974,ISO 1974
Features
1.Latest design with modern sophisticated look.
2.Pneumatic operated clamping and pendulum release ensures repeatable test result.
3.The built-in microcomputer handles all calculations and set-up functions.
4.Tearing force displayed digitally.
5.Easily interchangeable pendulums.
6.Selectable units:newtons,grams-force,millinewtons,lbs-force,percentage of pendulum capacity.
7.Easy to calibrate using the check weights(optional).
8.PC & PRINTER connection.
9.Cutting template supplied for preparing samples.
10.Supplied with calibration & inspection certificates.
Technical parameters:
| Measuring pendulum range |
16N 32N (By adding Augmenting weight) 64N (By adding Augmenting weight) |
| Unit of measurement | CN, N , gf , lbf |
| Distance between Clamps | 7.0 ± 0.25 mm |
| Tearing Distance | 43 ± 0.15m |
| Slit Size | 20 ± 0.2 mm |
| Tollerance range | 20-80 % of each full scale, settable range or full scale |
| Angular resolution | high resolution digital optical encoder |
| Display | LCD display backlight |
| Blade | steel |
| Data port | RS232 port for printer connection and 3 pin Mini-DIN connector for PC. |
| Statistics | Force min. max. mean, CV%, St. Deviation, Range% |
| Language | English |
| Template Size | As per ASTM standard |
| Dimensions | 490 x 430 x 680 mm |
| Power supply | 220V, 50Hz |
| Weight | 58KG |
Accessories:
1.Main Unit:01 No.
2.Augmenting weight for 32N:01 No.
3.Augmenting weight for 64N:01 No.
4.Spare Cutting Blade:01 No.
5.Specimen cutting template:01 No.
6.USB software:01 No.
7.Power Cord:01 No.
8.This User’s Manual:01 No.
9.Inspection & Conformance Certificate:01 No.
LCD CONTROL PANEL
