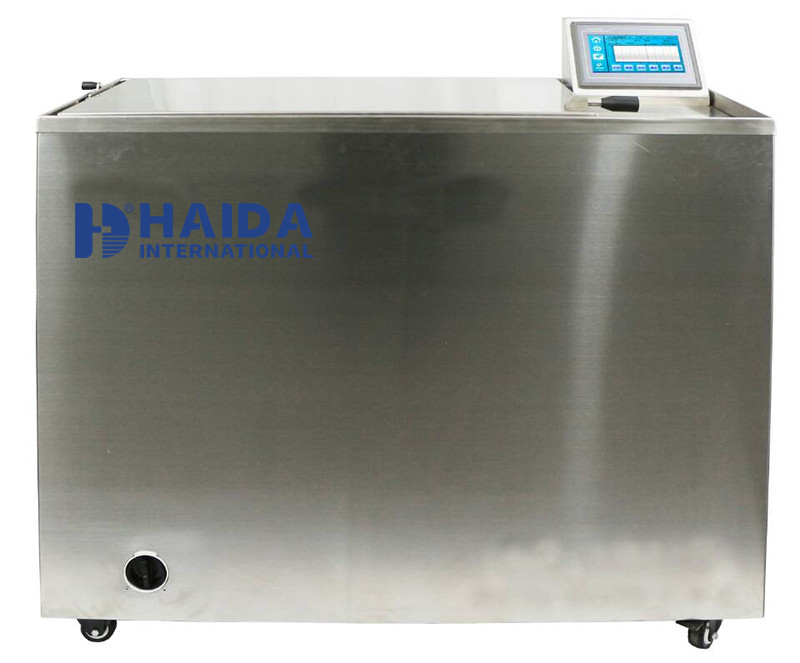

Laboratory Textile Resistant Colour Fastness Testing Equipment To Washing Resistant To Dry Cleaning Shrink

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W805
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Dimensions: 800 X 500 X 1000 Mm
Weight: 100kg Control Mode: LCD Touch Panel
Temperature Regulation: ± 2.0°C (as Per ISO) Speed Of Rotation: 40 ± 2 Rpm
Distance From Shafts: 45 Mm Standard Seal For Beakers: 12 No’s Special Neoprene Gaskets
Volume Of Each Beaker: As Per ISO:550 Ml; As Per AATCC:1200ml Temperature Controller: TI-LM35 Type (up To 99.9°C) L/C – 0.5°C
High Light:

Laboratory Colour Fastness Testing Equipment

,

LCD Touch Colour Fastness Testing Equipment


Product Description

Laboratory Textile Resistant Testing Equipment To Washing/Resistant To Dry/Cleaning Shrink/Colour Fastness To Washing





Application

Colour Fastness to Washing Tester is applied to determine the dye washing color fastness, resistant to washing, resistant to dry cleaning and resistant to shrink of cotton, wool, silk jute and chemical fiber textiles.



Testing standard:

ISO 105-C06,ISO 105-C08,ISO 105-C09,ISO 105-C10,ISO 105-D01,ISO 105-E03

AATCC 61,190 AATCC 86,132

M&S C04,M&S C05, M&S C10A, M&S C12A, M&S C37

BS 1006,JIS L0844



Feature:

1.To determine the Colour Fastness to Washing or Dry Cleaning.

2.Latest Ergonomic design with customer friendly control panel.

3.Robust completely stainless steel body gives long life operations & durability.

4.Temperature upto 95°C with a Digital Temperature Controller.

5.Inching facility for loading and unloading of the beakers.

6.10Beakers of 550 ml. (For ISO)and 10beakers for 1200ml(For AATCC)

7.Special silicon gaskets for the beakers having very long life.

8.Touch control panel equipped with ISO&AATCC testing programs for easy operation.

9. No extra hardware, tools, or adapters are required for 1200ml containers.

10.Operators can enter and store custom designed tests.

11.Water bath is heated by stainless steel heater in a temperature rise rate of 2°C per minute.

12.Door safety switch inside the cabinet automatically stops the rotor from turning if the door is open.





Technical parameters:

Number of Beakers(Test Vessels) Total 20Nos. (10 Nos.(For ISO) and 10Nos. For AATCC)
Standard seal for beakers 12 no’s special neoprene gaskets
Volume of each beaker as per ISO:550 ml; as per AATCC:1200ml
Distance from shafts 45 mm
Speed of rotation 40 ± 2 rpm
Temperature Controller TI-LM35 type (up to 99.9°C) L/C – 0.5°C
Temperature Regulation ± 2.0°C (as per ISO)
Control mode LCD touch panel
Power supply 220V, 50Hz
Weight 100 Kg
Dimensions 800 x 500 x 1000 mm




Accessories:

1.Main Unit:01 No.

2.Beakers (Pots):10 Nos for ISO, 10 Nos. for AATCC

3.Gaskets – (Fitted in the Beakers):12 Nos.

4.Stainless Steel Balls (Pack of 100):01 No.

5.Measuring Plastic Beaker (100 ml):01 No.

6. Beaker:10No 550ml, 10No. 1200ml

7.Filter Unit – For taking out the S.S. balls from the beaker after testing:01 No.

8.Plastic Tubing (1½ Meters each) - for Outlet & Overflow Valves:01 No.

9.This User’s Manual:01 No.

10. Inspection & Conformance Certificate:01 No.



Accessories supplied with the instrument:

Laboratory Textile Resistant Colour Fastness Testing Equipment To Washing Resistant To Dry Cleaning Shrink 0





Laboratory Textile Resistant Colour Fastness Testing Equipment To Washing Resistant To Dry Cleaning Shrink 1

Stainless Steel Balls

Laboratory Textile Resistant Colour Fastness Testing Equipment To Washing Resistant To Dry Cleaning Shrink 2        Laboratory Textile Resistant Colour Fastness Testing Equipment To Washing Resistant To Dry Cleaning Shrink 3

500mlBeakers  1200ml Beakers





Touch Control panel

Laboratory Textile Resistant Colour Fastness Testing Equipment To Washing Resistant To Dry Cleaning Shrink 4Laboratory Textile Resistant Colour Fastness Testing Equipment To Washing Resistant To Dry Cleaning Shrink 5

Laboratory Textile Resistant Colour Fastness Testing Equipment To Washing Resistant To Dry Cleaning Shrink 6 Laboratory Textile Resistant Colour Fastness Testing Equipment To Washing Resistant To Dry Cleaning Shrink 7
