| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W841 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Test Stations: | 5 | Machine Material: | Aluminium Alloy |
|---|---|---|---|
| Materials Of Gripper: | Stainless Steel | Load Weight: | 5 Lb, 2.27kg One Set 10 Lb,B 4.54kg One Set |
| Gripper Effective Clamping Width: | ≥135m | Gripper Number Of Hooks: | 10 |
| Dimensions: | 1100x500x1350mm | Weight: | 60 Kg |
| Highlight: | Stainless Steel Textile Tensile Strength Equipment,Textile Tensile Strength Equipment |
||

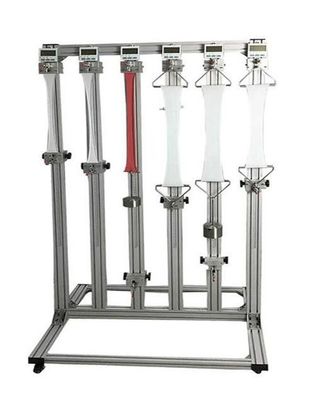

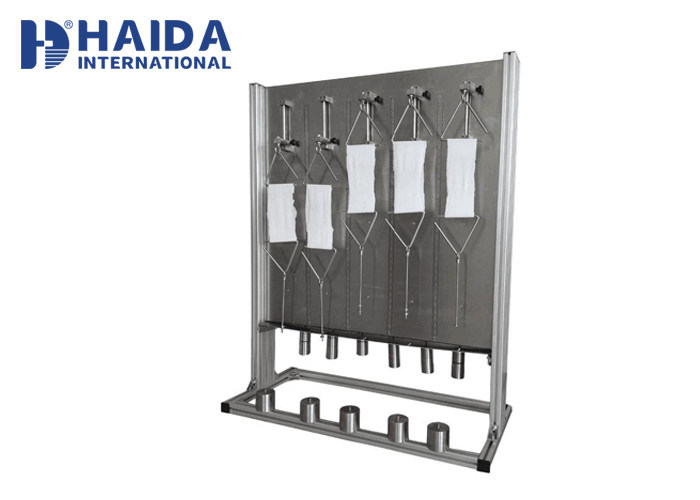

High Precision Stainless Steel Textile Tensile Strength Equipment For Textile Industry
Introduction
Used to measure the growth of low-elastic knitted fabrics, fabric elongation and fabric recovery properties (constant load performance and constant elongation performance).
To determine the elastic fabric under a certain tension to stretch the specified elongation and then recovery
Standard : ASTM D2594
Standard Features
| Test stations | 5 |
| Machine material | Aluminium alloy |
| Materials of gripper | Stainless Steel |
| Load weight |
5 lb, 2.27kg one set 10 lb,B 4.54kg one set |
| Gripper effective clamping width | ≥135m |
| Gripper Number of hooks | 10 |
| Dimensions | 1100x500x1350mm |
| Weight | 60 Kg |
Features
Certain elongation rate test, certain loading test, sample clamp free slide, equipped with slider, can be fixed on any place of rail, uses adjustable knob clamp design, suitable for different samples test.
The Introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
