SS316 Color Fastness Perspiration Tester For Leather Textile Testing Instrument

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008
Model Number: HD-W809
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: cach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Frame Construction: Special Stainless Steel (grade 316) Load On The Test Specimen(as Per ISO/AATCC): 5 Kg/10 Lb
Size Of Test Specimen: 100 X 40 Mm Size Of Acrylic Separator Plate (each): 115 X 60 Mm
Number Of Separator Plates: 21 + 21 No’s Dimensions: 240 X 100 X 160 Mm
High Light:

Color Fastness Perspiration Tester


SS316 Color Fastness Perspiration Tester


5kg/10lb Textile Testing Instrument

Product Description

Color Fastness Perspiration Tester For Textiles Leather Textile Testing Instrument


Products description:

Dyed & printed textile fabric & garments stain other materials when comes in contact with water and the human perspiration either acidic or alkaline. This important property of textiles is evaluated keeping the sample with adjacent fabrics wetted in perspiration solution under standard pressure. The Perspirometer applies a specified pressure to a package of test specimens separated by acrylic or glass plates. The spring loaded mechanism ensures the correct pressure is maintained when the loading Weight is removed. Two loading Weights are available to accommodate the requirements of the ISO and AATCC test methods.

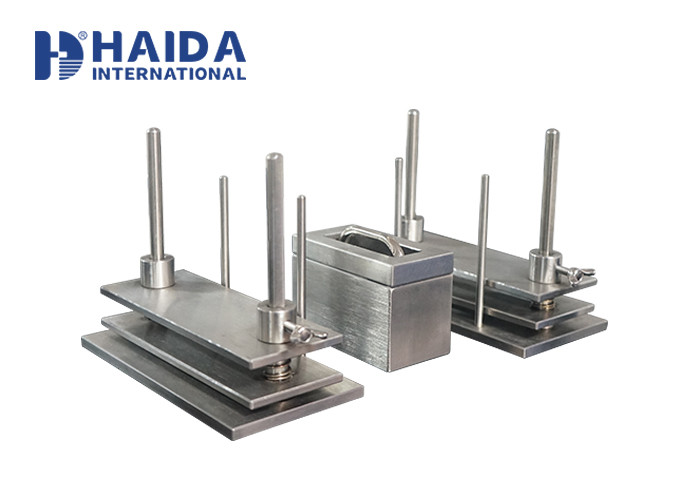

SS316 Color Fastness Perspiration Tester For Leather Textile Testing Instrument 0





To determine color fastness to water and perspiration in textiles. It’s also employed to predict the potential of white or pastelcoloured textiles to yellow in transit or storage.



Test procedure

To test colour fastness to perspiration, specimens (fabric, yarn or fibre) in contact with Multifibre Adjacent Fabric, are treated in two different solutions containing histidine, one alkaline and one acidic. The specimens are subsequently drained and placed under constant pressure between separator plates in the Perspirometer. Up to 20 test specimens can be accommodated.

The units are then placed in an Incubator for 4 hours at 37˚C (body heat).

After drying, change in colour of the specimens and staining of the adjacent fabrics are assessed with Grey Scales.

Separate Perspirometer units must be used for alkaline and acidic tests to avoid chemical interaction.




Products parameter:


Frame construction Special stainless steel (grade 316)
Load on the test specimen(as per ISO/AATCC) 5 kg/10 lb
Size of test specimen 100 x 40 mm
Size of acrylic separator plate (each) 115 x 60 mm
Number of separator plates 21 + 21 No’s
Dimensions 240 x 100 x 160 mm
color fastness perspiiration tester

Haida International Equipment Co,Ltd is a National "High-tech Enterprise"(certified in 2016),integrating R&D,manufacturing and brand marketing.Our textile testing instruments meets with the requirements of ISO, ASTM, AATCC, BS, GB, DIN, EN, JIS. We are committed to providing high quality testing instruments.We always adhered to the strict and professional concept and strictly control the quality of products, and provide our customers with high-quality testing instruments,first-class service and competitive prices.

SS316 Color Fastness Perspiration Tester For Leather Textile Testing Instrument 2
