| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W825 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Measuring Range: | 500pa-200kpa | Accuracy: | 0.2%FS |
|---|---|---|---|
| Unit: | 600x460x680mm | Water Tank Capacity: | 3.7Ld |
| Water Column Pressure Increasing Rate: | 10-300 Cm/min | Sample Chuck Area: | 100cm² |
| Display Unit: | Pa | ||
| Highlight: | 300cm / Min Fabric Tensile Testing Equipment,Water Resistance Tensile Testing Equipment,Hydrostatic Pressure Tensile Testing Equipment |
||

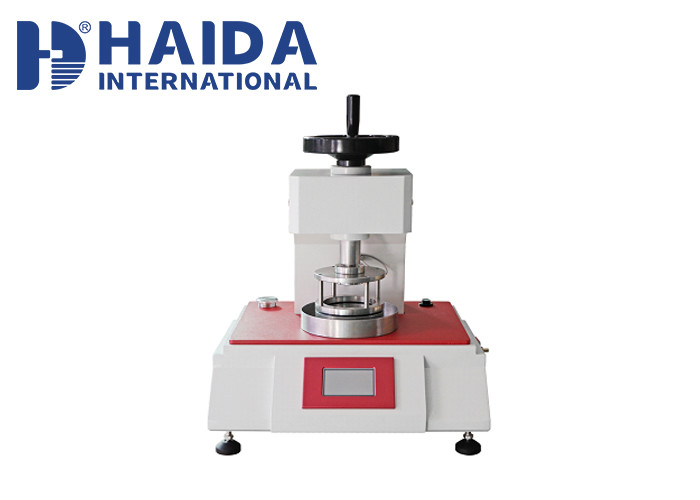

Textile Water Resistance Test Hydrostatic Pressure Tester Fabric Tensile Testing Equipment
PRODUCT DESCRIPTION:
It is used for testing the water permeability resistance to the compact cloth such as canvas, linoleum, tenting, tarpaulin, non-woven fabrics, rain resistant dress fabrics, coating fabrics and so on.
DESIGN CRITERIA:
AATCC 127 DIN 53886 JIS L1092
TECHNICAL PARAMETER :
| Measuring range | 500pa-200kpa |
| Accuracy | 0.2%FS |
| Unit | Pa, Kpa, mmHg, cmH2O |
| Water column pressure increasing rate | 10-300 cm/min |
| Sample chuck area | 100cm2 |
| Display unit | Pa |
| Water tank capacity | 3.7Ld |
| Extarnal Dimensions | 550x400x500 |
| Weight | 50kg |
| Power source | 1phase, AC220± 10%, 50 Hz |
Accessories:
| Standard accessories | 1Set | 100cm2 testing sets |
| 1Set | Calibration plate | |
| 1pc | Rubber ring | |
| 1pc | Power line | |
| Optional accessories | Optional | Fixtures of other testing area |
Feature:
1. Touch screen control with English menu
2. Seven test units can be switched,Pa, kPa, mmHg, mmH2O, cmH2O, PSI, Bar
3. Five working modes: Pressurization, constant pressure and constant timing, constant pressure timing, water seepage and leakage, deflection test
4. Built-in LED lighting device for easy observation. The water drop recording button, which can record multiple water drop pressure results
5. Built-in thermal printer
Application Industries:
Canvas Coated fabrics Non-woven fabrics
Rain-proof Fabrics hood fabric Geotextiles
About us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
