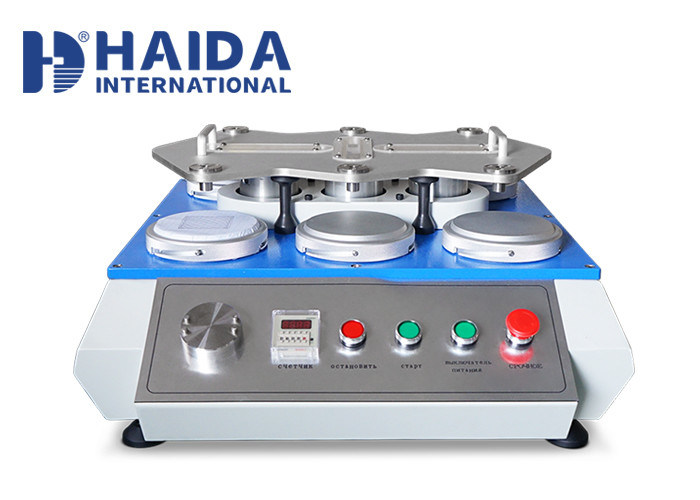

Automatic Textile Abrasion Testing Machine Martindale Abrasion Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P306-6
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Diameter Of Abrasion Fabric: 140mm Model: HD-P306-6
Stations:: 6 Stations Count Display: Cumulative Count: 0 ~ 99 9999 Times
Maximum Stroke: 24 ± 0.5mm, 60.5 ± 0.5mm Diameter Of Specimen: 38mm
Power: AC 220V/50Hz Weight: 76 KG
High Light:

Automatic Textile Abrasion Testing Machine

,

6 Stations Abrasion Testing Machine

,

220V Pilling Testing Machine


Product Description

Automatic Textile Abrasion Testing Machine Pilling Testing Machine Martindale Abrasion Tester





GENERL SPECIFICATIONS

Packaging Dimensions: (W x D x H)70cmx75cmx47cm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 110KG





PRODUCT DESCRIPTION:

Martindale Abrasion Tester mainly applies to the resistance test of textile and outside layer, lining or under layer of the footwear or the similar fabric. Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.





TEST STANDARD :

ASTM D4970, ISO12945-2 and other pilling degree test;

ASTM D4966, ISO12947 and other fabric abrasion tests.





Automatic Textile Abrasion Testing Machine Martindale Abrasion Tester 0







PRODUCT FEATURES:



1, Adopt with LCD touch screen, clear and easy to operate;

2, With pill and abrasion testing progress, can meet various international standards;

3, Use reduce and increase counting testing method for easy operation;

4, With imported PLC, reliable and suitable for long time test.





STANDARD PARAMETER



Technical Index HD-P306-4 HD-P306-6 HD-P306-8
Consumables Baize 4,Testing Cotton 4 Baize 6,Testing Cotton 6 Baize 8 ,Testing Cotton 8
Interface LCD display
Count display Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times
Maximum stroke 24 ± 0.5mm, 60.5 ± 0.5mm
Loading : a. Holder:200±1g
b. Dress material counter weight: 395±2g
c. Furnishings/Leather material counter weight: 594±2g
d. Stainless steel butterfly slice: 260±1g
Abrasion chunk effective rub diameter A model: 200g(1.96N,9KPa) , abrasion head¢ 28.8 -0.084mm
Pace speed of the holder 50-2r/min
Sample loading pressure hammer 2385±10g
Diameter of abrasion fabric 140mm
Diameter of Specimen 38mm
Power AC 220V/50Hz
Dimension 600x650x320mm 750x960x520mm /





Accessories kit:



Automatic Textile Abrasion Testing Machine Martindale Abrasion Tester 1 Automatic Textile Abrasion Testing Machine Martindale Abrasion Tester 2


Automatic Textile Abrasion Testing Machine Martindale Abrasion Tester 3





Automatic Textile Abrasion Testing Machine Martindale Abrasion Tester 4Automatic Textile Abrasion Testing Machine Martindale Abrasion Tester 5
   Abrasion head for pilling test        Abrasion head for abrasion test
