Textile Test Fabric Strength Analyzer Martindale Abrasion Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO,CE
Model Number: HD-P306
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 80 Sets per Month
Detail Information
Drive System: PLC,programmable Control With Large Touch-screen Max Stroke Of Movement: 60.5+/-0.5mm
Power: AC220V 50HZ Working Stations: 4/6/8
Weight Of Holder And Spindle: 200+/-1g Name: Martindale Abrasion Tester
Mounting Weight: 2.5+/-0.5kg, For Both Abrasion And Pilling Test Type: Testing Equipment

Product Description

Product Description:

The scrubbing resistance test is relevant mainly to fabrics and outer layers, linings, or underlayers of footwear and similar fabrics. Tests that comply with standards could be classified as dry tests and wet tests. Test samples must be subjected to Lissajous-oriented testing for the prescribed times, afterwards, the differences between the tested samples and the originals must be observed and used to decide the grade of scrubbing resistance.

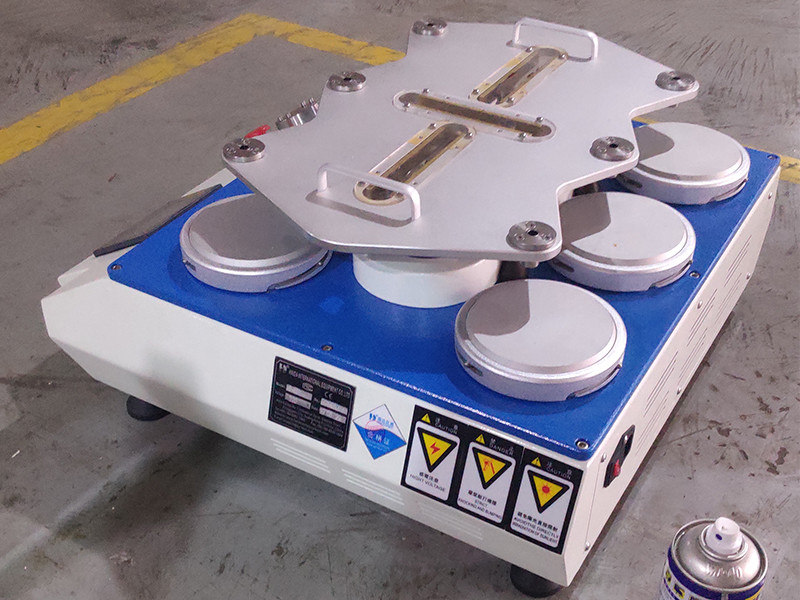

Martindale Abrasion Tester


This product adopts an LCD touch screen, which makes operation very clear and simple to operate.

It also has pill and abrasion testing processes which can meet multiple international standards.

The reduction and increase counting testing method used ensures easy operation.

What's more, it uses imported PLCs to ensure long-term reliability.


Technical Parameters:

Technical Index HD-P306-4 HD-P306-6 HD-P306-8
Consumables Baize 4,Testing Cotton 4 Baize 6,Testing Cotton 6 Baize 8 ,Testing Cotton 8
Interface LCD display
Count display Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times
Maximum stroke 24 ± 0.5mm, 60.5 ± 0.5mm

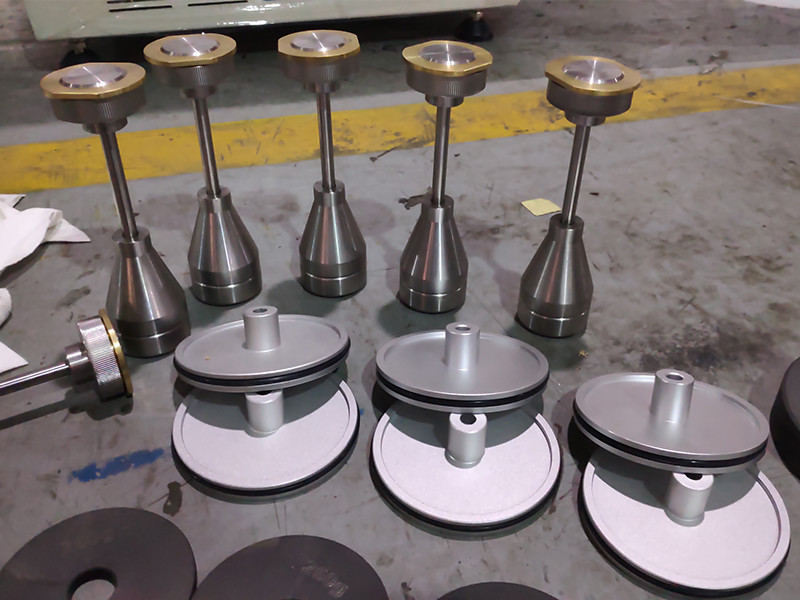

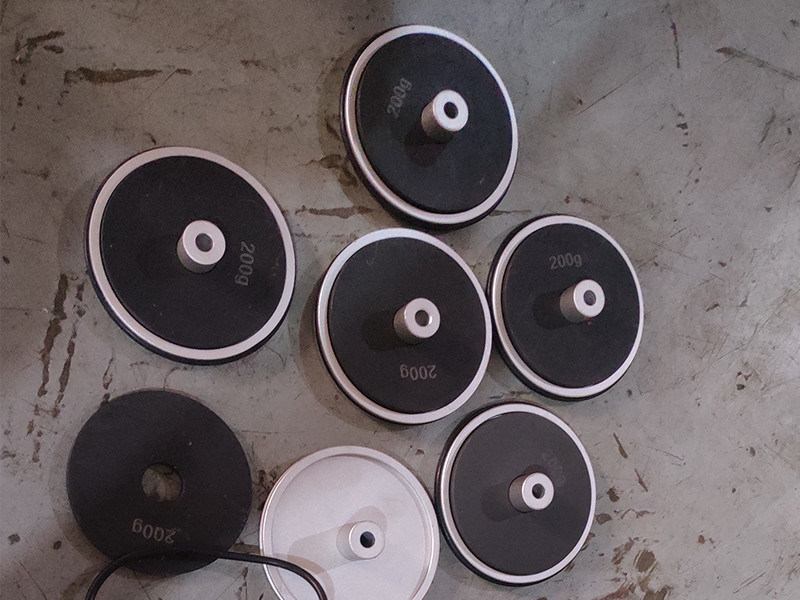

Loading : a. Holder:200±1g
b. Dress material counter weight: 395±2g
c. Furnishings/Leather material counter weight: 594±2g
d. Stainless steel butterfly slice: 260±1g
Abrasion chunk effective rub diameter A model: 200g(1.96N,9KPa) , abrasion head¢ 28.8 -0.084mm
Pace speed of the holder 50-2r/min
Sample loading pressure hammer 2385±10g
Diameter of abrasion fabric 140mm
Diameter of Specimen 38mm
Power AC 220V/50Hz
Dimension 600x650x320mm 750x960x520mm /


The Martindale Abrasion Tester is designed to meet a variety of fabric testing needs. It is ideal for the fabric testing industry, such as apparel manufacturers, fabric suppliers, textile mills, and any other organizations needing to evaluate the quality of their fabrics. It is also used for quality control in laboratories and research centers. With its reliable performance and competitive price, this fabric test instrument is a must-have for any fabric testing needs.

Packing and Shipping:

Packaging and Shipping of Textile Testing Equipment:

Textile Testing Equipment is securely packaged in a double-walled corrugated box, designed to withstand the rigors of transport. Each box is clearly labeled with the contents, and it is surrounded by bubble wrap for extra protection.

All Textile Testing Equipment is shipped via a reputable courier service of choice. Delivery times depend on the destination, but most orders will arrive within 1-3 business days.

Textile Test Fabric Strength Analyzer Martindale Abrasion Tester 1


Q: What is the Brand Name of the Textile Testing Equipment?
A: The Brand Name of the Textile Testing Equipment is HAIDA.
Q: What is the Model Number of the Textile Testing Equipment?
A: The Model Number of the Textile Testing Equipment is HD-P306.
Q: Where is the Place of Origin of the Textile Testing Equipment?
A: The Place of Origin of the Textile Testing Equipment is Guangdong, China (Mainland).
Q: What Certifications does the Textile Testing Equipment have?
A: The Textile Testing Equipment has ISO and CE Certifications.
Q: What is the Minimum Order Quantity for the Textile Testing Equipment?
A: The Minimum Order Quantity for the Textile Testing Equipment is 1set.
