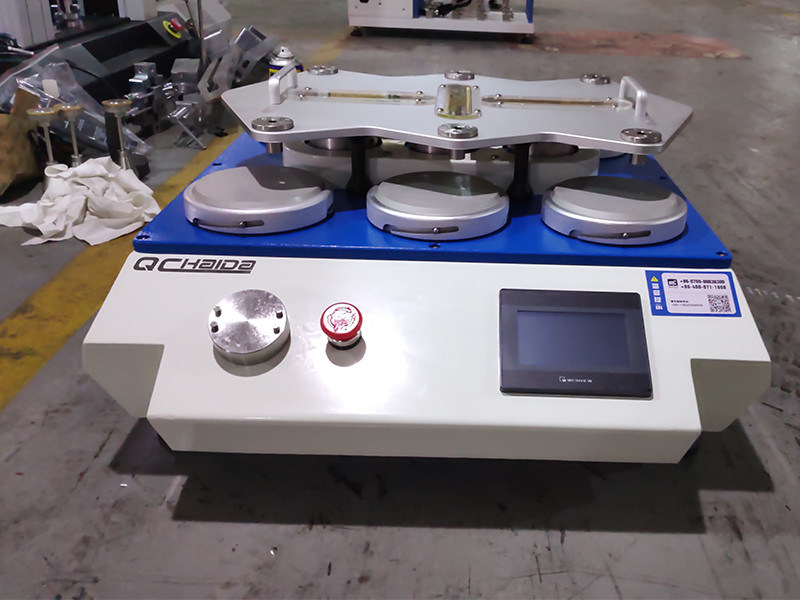

Martindale Abrasion Test Machine For Abrasion And Pilling Test Textile Testing Equipment

Martindale Abrasion Test Machine For Abrasion And Pilling Test Textile Testing Equipment

Brand Name: HAIDA
Model Number: HD-P306
MOQ: 1set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 80 Sets per Month
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
ISO,CE
Working Stations:
4/6/8
Power:
AC220V 50HZ
Weight Of Holder And Spindle:
200+/-1g
Drive System:
PLC,programmable Control With Large Touch-screen
Name:
Martindale Abrasion Tester
Mounting Weight:
2.5+/-0.5kg, For Both Abrasion And Pilling Test
Max Stroke Of Movement:
60.5+/-0.5mm
Type:
Testing Equipment
Packaging Details:
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Supply Ability:
80 Sets per Month
Product Description

Product Description:

The test of scrubbing resistance applies primarily to textile, the outside layer, lining or under layer of the footwear or the similar fabric. This test can be classified into dry test and wet test. For each sample, it has to go through the test meeting the standard for a number of times. After the test, the difference between the tested sample and the original sample will be observed for arriving at the grade of scrubbing resistance.

Martindale Abrasion Test Machine For Abrasion And Pilling Test Textile Testing Equipment 0

Features:

Martindale Abrasion Tester adopts LCD touch screen, making it easy to operate. Furthermore, it includes both pill and abrasion testing processes, which can meet the requirements of various international standards. It also uses a reduce and increase counting testing method for convenient operation, and its imported PLC component provides it with reliability that can stand the test of long-term use.



Technical Parameters:

Technical Index HD-P306-4 HD-P306-6 HD-P306-8
Consumables Baize 4,Testing Cotton 4 Baize 6,Testing Cotton 6 Baize 8 ,Testing Cotton 8
Interface LCD display
Count display Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times
Maximum stroke 24 ± 0.5mm, 60.5 ± 0.5mm

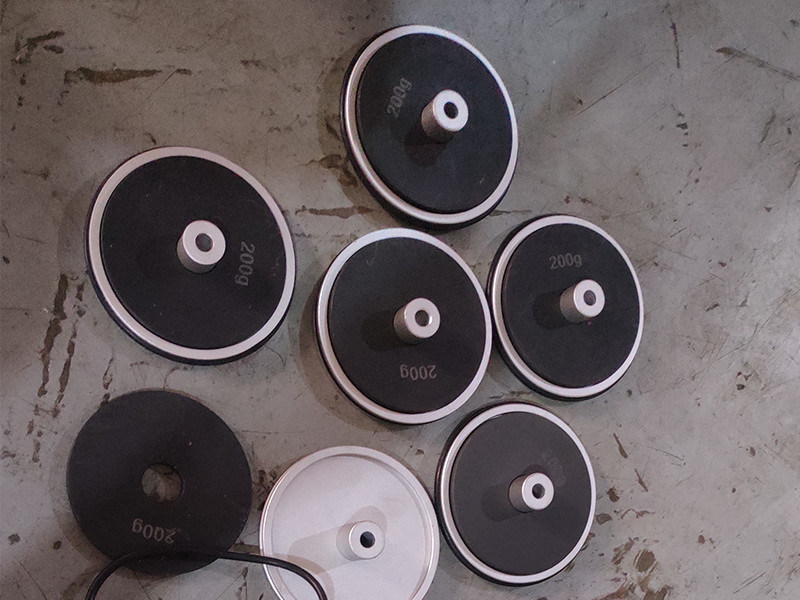

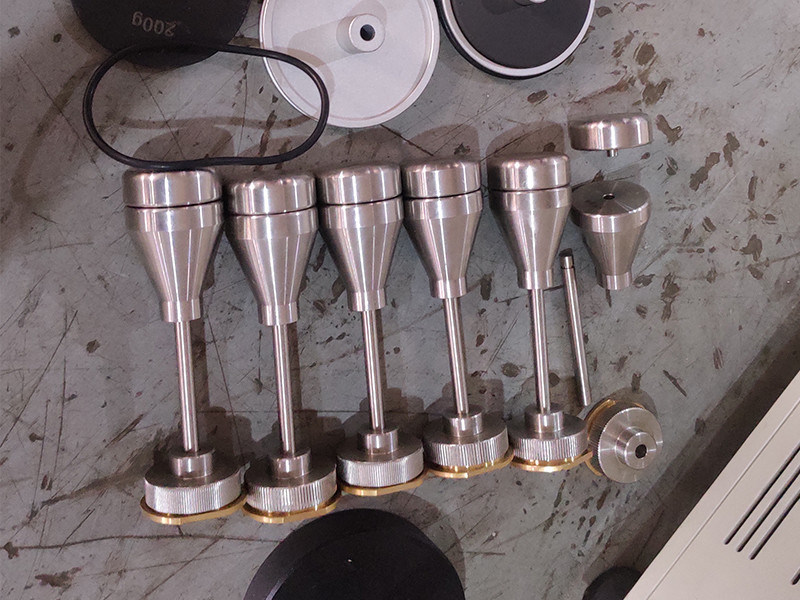

Loading : a. Holder:200±1g
b. Dress material counter weight: 395±2g
c. Furnishings/Leather material counter weight: 594±2g
d. Stainless steel butterfly slice: 260±1g
Abrasion chunk effective rub diameter A model: 200g(1.96N,9KPa) , abrasion head¢ 28.8 -0.084mm
Pace speed of the holder 50-2r/min
Sample loading pressure hammer 2385±10g
Diameter of abrasion fabric 140mm
Diameter of Specimen 38mm
Power AC 220V/50Hz
Dimension 600x650x320mm 750x960x520mm /


Applications:

Textile Testing Equipment, provided by HAIDA with model number HD-P306, is certified by ISO and CE and is available in a variety of configurations to meet specific industry needs. It is a highly capable testing machine, specifically designed for the testing of leather, fabric strength and fabric. It is packaged in a set, protected with resin fiber and PP film, and then put into a strong wooden case with operation manual. Delivery time is 20 days after order confirmation and payment terms are L/C, D/A, D/P, T/T, Western Union, MoneyGram, In cash, escrow, and Supply Ability is 80 sets per month.



Packing and Shipping:

Packaging and Shipping for Textile Testing Equipment:

Our textile testing equipment is securely packaged to ensure that it is delivered to you in perfect condition. All of our products are shipped with the highest quality shipping materials and methods, including bubble wrap and a sturdy cardboard box. We use reputable carriers such as UPS, DHL, FedEx, and USPS, and tracking information is provided for all shipments.



FAQ:

Q: What is the Brand Name of the Textile Testing Equipment?
A: The Brand Name of the Textile Testing Equipment is HAIDA.
Q: What is the Model Number of the Textile Testing Equipment?
A: The Model Number of the Textile Testing Equipment is HD-P306.
Q: Where is the Textile Testing Equipment from?
A: The Textile Testing Equipment is from Guangdong, China (Mainland).
Q: What certifications does the Textile Testing Equipment have?
A: The Textile Testing Equipment has ISO and CE certifications.
Q: What is the Minimum Order Quantity for the Textile Testing Equipment?
A: The Minimum Order Quantity for the Textile Testing Equipment is 1set.
