| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | ISO，CE |
| Model Number: | HD-P306 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 80 Sets per Month |
| Type: | Testing Equipment | Name: | Martindale Abrasion Tester |
|---|---|---|---|
| Working Stations: | 4/6/8 | Drive System: | PLC,programmable Control With Large Touch-screen |
| Max Stroke Of Movement: | 60.5+/-0.5mm | Weight Of Holder And Spindle: | 200+/-1g |
| Mounting Weight: | 2.5+/-0.5kg, For Both Abrasion And Pilling Test | Power: | AC220V 50HZ |
The scrubbing resistance test is designed to evaluate the durability of textiles, and the outside layer, lining, or under layer of footwear or similar fabric. The test is completed in either dry or wet condition and based on a Lissajous-oriented standard. After testing the sample for the specified number of cycles, the difference between the original sample and the tested sample is observed. The results are then used to determine the grade of scrubbing resistance.

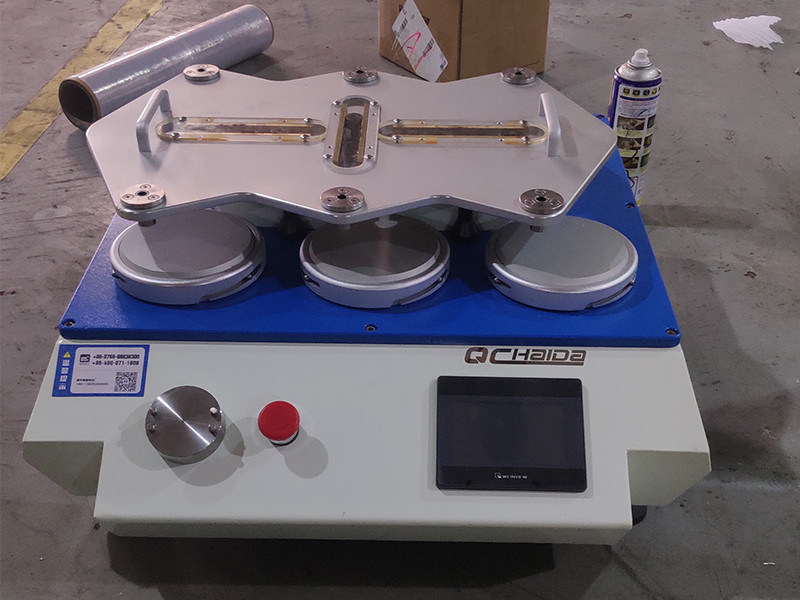

This instrument adopts a LCD touch screen, which makes it clear and easy to operate. Its pill and abrasion testing progress complies with a range of international standards. Furthermore, its reduce and increase counting testing method provides easy operation. The use of an imported PLC ensures its reliability and suitability for long time testing.
| Technical Index | HD-P306-4 | HD-P306-6 | HD-P306-8 |
| Consumables | Baize 4,Testing Cotton 4 | Baize 6,Testing Cotton 6 | Baize 8 ,Testing Cotton 8 |
| Interface | LCD display | ||
| Count display | Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times | ||
| Maximum stroke | 24 ± 0.5mm, 60.5 ± 0.5mm | ||

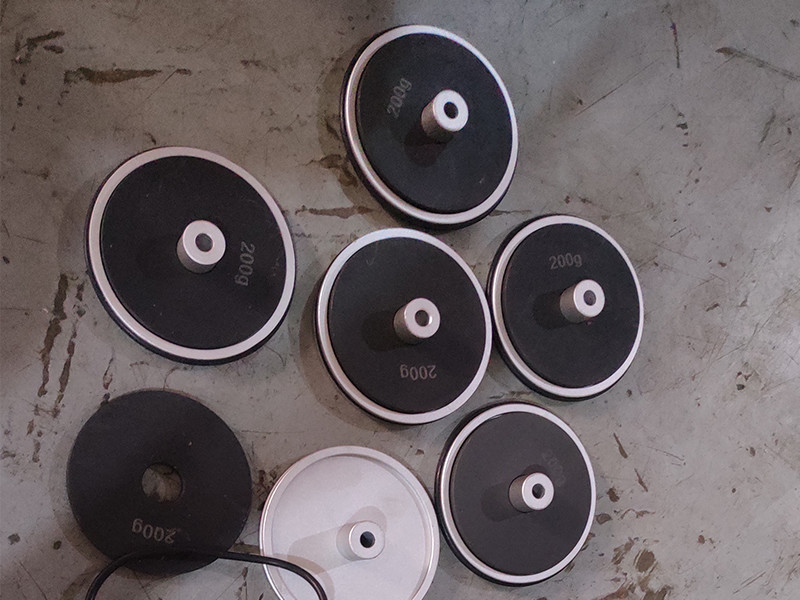

| Loading : | a. Holder:200±1g | ||
| b. Dress material counter weight: 395±2g | |||
| c. Furnishings/Leather material counter weight: 594±2g | |||
| d. Stainless steel butterfly slice: 260±1g | |||
| Abrasion chunk effective rub diameter | A model: 200g(1.96N,9KPa) , abrasion head￠ 28.8 -0.084mm | ||
| Pace speed of the holder | 50-2r/min | ||
| Sample loading pressure hammer | 2385±10g | ||
| Diameter of abrasion fabric | 140mm | ||
| Diameter of Specimen | 38mm | ||
| Power | AC 220V/50Hz | ||
| Dimension | 600x650x320mm | 750x960x520mm | / |
Textile Testing Equipment from HAIDA is a reliable testing solution for the industry, which is designed for testing material, fabric, leather, and other textile products. It has been certified with ISO and CE quality standards, and it comes with a minimum order quantity of 1 set. It comes with a competitive price that is negotiable, and it is well-packaged in a strong wooden case with operation man and resin fiber and PP film protection. The delivery time is 20 days after order confirmed, and the payment terms include L/C, D/A, D/P, T/T, Western Union, MoneyGram, and in cash, escrow. It is capable of producing 80 sets per month, and it is equipped with working stations of 4/6/8. The max stroke of movement is up to 60.5+/-0.5mm, and the drive system is PLC, programmable control with a large touch-screen. The weight of holder and spindle is 200+/-1g. Textile Testing Equipment from HAIDA is the perfect choice for reliable material testing.
Textile Testing Equipment Packaging and Shipping:
The product is packed in a secure cardboard box or plastic container with foam inserts to protect it from damage during shipping. The box or container is then sealed with packing tape and labeled with the destination address. The package is then shipped via a reputable courier service or freight carrier.
A1: The brand name of the Textile Testing Equipment is HAIDA.
A2: The model number of the Textile Testing Equipment is HD-P306.
A3: The place of origin of the Textile Testing Equipment is Guangdong, China (Mainland).
A4: The certifications of the Textile Testing Equipment are ISO and CE.
A5: The payment terms for the Textile Testing Equipment are L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow.
