| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | ISO，CE |
| Model Number: | HD-P306 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 80 Sets per Month |
| Max Stroke Of Movement: | 60.5+/-0.5mm | Type: | Testing Equipment |
|---|---|---|---|
| Drive System: | PLC,programmable Control With Large Touch-screen | Weight Of Holder And Spindle: | 200+/-1g |
| Working Stations: | 4/6/8 | Power: | AC220V 50HZ |

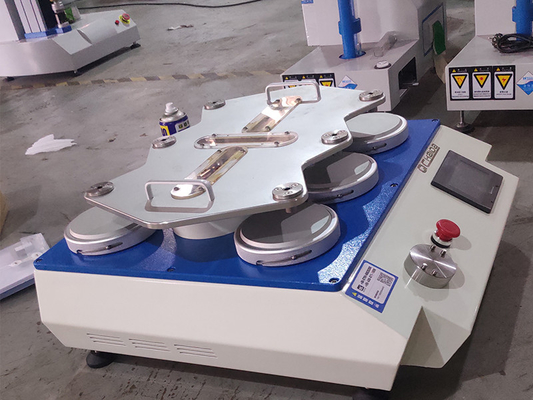

| Name: | Martindale Abrasion Tester | Mounting Weight: | 2.5+/-0.5kg, For Both Abrasion And Pilling Test |
This test mainly applies to the resistance test of textiles and the outer layer, lining, or underlayer of footwear or similar fabrics. Tests are carried out according to the standard, and they can be classified into dry tests and wet tests. Samples are tested along an Lissajous-oriented path for a set amount of time. Finally, the difference between the tested samples and the original samples is compared in order to assign a rubbing resistance grade.
The LCD touch screen is adopted for ease of operation; its clarity allows users to operate with confidence.
With seamless pill and abrasion testing processes to comply with several international standards,all without causing unnecessary inconvenience.
To make operations smoother,the reduce and increase counting method is used.
The imported PLC is dependable and fit for long-term testing.
| Technical Index | HD-P306-4 | HD-P306-6 | HD-P306-8 |
| Consumables | Baize 4,Testing Cotton 4 | Baize 6,Testing Cotton 6 | Baize 8 ,Testing Cotton 8 |
| Interface | LCD display | ||
| Count display | Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times | ||
| Maximum stroke | 24 ± 0.5mm, 60.5 ± 0.5mm | ||

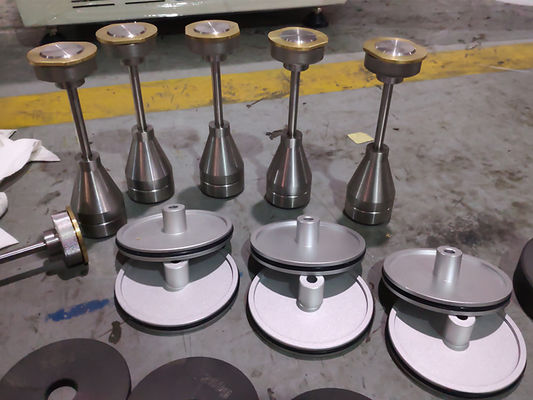

| Loading : | a. Holder:200±1g | ||
| b. Dress material counter weight: 395±2g | |||
| c. Furnishings/Leather material counter weight: 594±2g | |||
| d. Stainless steel butterfly slice: 260±1g | |||
| Abrasion chunk effective rub diameter | A model: 200g(1.96N,9KPa) , abrasion head￠ 28.8 -0.084mm | ||
| Pace speed of the holder | 50-2r/min | ||
| Sample loading pressure hammer | 2385±10g | ||
| Diameter of abrasion fabric | 140mm | ||
| Diameter of Specimen | 38mm | ||
| Power | AC 220V/50Hz | ||
| Dimension | 600x650x320mm | 750x960x520mm | / |
The HAIDA HD-P306 is a fabric strength testing machine that can be used for Martindale Abrasion Test and Pilling Test. It is certified by ISO and CE to ensure the accuracy and reliability. The minimum order quantity is 1set, and the price is negotiable. The package is protected with resin fiber and PP film, then put into strong wooden case with operation manual. The delivery time is 20 days after order confirmed, and the payment terms include L/C, D/A, D/P, T/T, Western Union, MoneyGram, In cash, escrow. It has a maximum supply ability of 80 sets per month. This machine has a working station of 4/6/8, with a mounting weight of 2.5 +/- 0.5kg , and a maximum stroke of movement of 60.5 +/- 0.5mm. The weight of the holder and spindle is 200 +/- 1g. This fabric strength testing machine is perfect for testing the strength of fabrics, as it is highly accurate and reliable.
Packaging and Shipping for Textile Testing Equipment:
Textile testing equipment is packaged in sturdy, waterproof containers to avoid damage during shipping. The containers are marked with the type of equipment and any special instructions for handling, such as "Fragile, Handle with Care". All shipments are insured for full value, and tracking numbers are provided to customers for easy tracking of their orders.
