PLC Drive Martindale Abrasion Tester Fabric Testing Machines Testing Equipment

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO,CE
Model Number: HD-P306
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 80 Sets per Month
Detail Information
Max Stroke Of Movement: 60.5+/-0.5mm Weight Of Holder And Spindle: 200+/-1g
Drive System: PLC,programmable Control With Large Touch-screen Type: Testing Equipment
Mounting Weight: 2.5+/-0.5kg, For Both Abrasion And Pilling Test Working Stations: 4/6/8
Power: AC220V 50HZ Name: Martindale Abrasion Tester

Product Description

Product Description:

Scrubbing resistance testing is a method used to evaluate the durability of textile materials and footwear components. This typically involves testing the samples of fabric or leather in accordance with established standards, which can usually be grouped into either dry or wet tests.

The Lissajous-oriented test assesses the degree of resistance to scrubbing or abrasion by measuring the variation between the original sample and the sample after it has been subjected to a set number of scrubbing cycles.

Textiles and footwear materials rated as having good scrubbing resistance generally have high durability, ensuring optimum performance in the intended application.

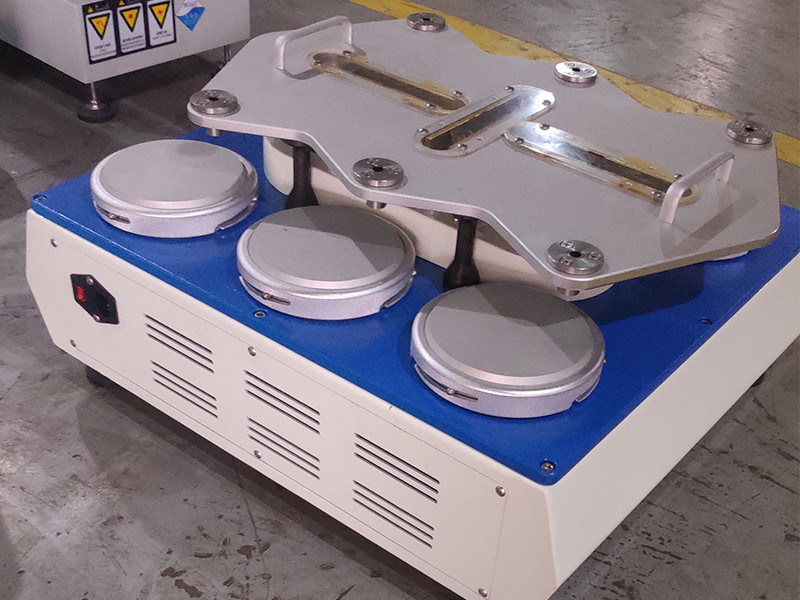

Martindale Abrasion Tester


This machine adopts an LCD touch screen, making it easy to understand and navigate. With pill and abrasion testing abilities it can live up to the standards of a variety of international regulations. The use of a "reduce and increase counting" testing method is easy to use. The machine is powered with an imported PLC making it consistently reliable for long testing sessions.


Technical Parameters:

Technical Index HD-P306-4 HD-P306-6 HD-P306-8
Consumables Baize 4,Testing Cotton 4 Baize 6,Testing Cotton 6 Baize 8 ,Testing Cotton 8
Interface LCD display
Count display Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times
Maximum stroke 24 ± 0.5mm, 60.5 ± 0.5mm

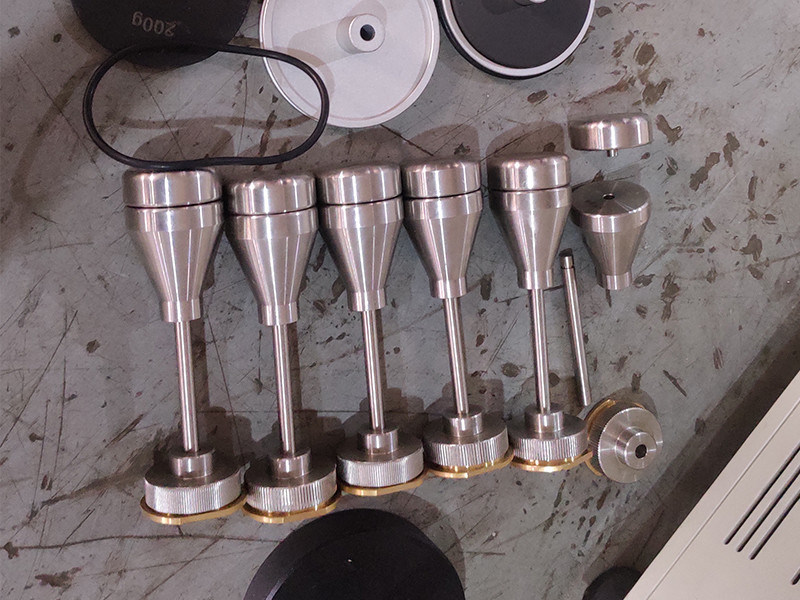

Loading : a. Holder:200±1g
b. Dress material counter weight: 395±2g
c. Furnishings/Leather material counter weight: 594±2g
d. Stainless steel butterfly slice: 260±1g
Abrasion chunk effective rub diameter A model: 200g(1.96N,9KPa) , abrasion head¢ 28.8 -0.084mm
Pace speed of the holder 50-2r/min
Sample loading pressure hammer 2385±10g
Diameter of abrasion fabric 140mm
Diameter of Specimen 38mm
Power AC 220V/50Hz
Dimension 600x650x320mm 750x960x520mm /


Textile testing equipment is essential for quality assurance purposes when it comes to fabric evaluation. With the right instruments, fabric testing could help to ensure the safety, durability, and quality of textile products. HAIDA's HD-P306 Martindale Abrasion Tester is a type of testing equipment designed for evaluating the abrasion resistance of fabrics. It is designed with PLC, programmable control with large touch-screen drive system, and a weight of holder and spindle of 200+/-1g. This device comes with a minimum order quantity of 1 set, and the price is negotiable. It is also certified with ISO and CE, and the package is ach set protected with resin fiber and PP film, then put into strong wooden case with operation man. The supply ability is 80 sets per month, and the delivery time is 20 days after order confirmed. This textile evaluation instrument is the perfect choice for those who are looking for reliable fabric testing equipment.


Packing and Shipping:

Textile Testing Equipment should be packaged and shipped carefully, with the appropriate protective packaging materials for the product. Appropriate packaging materials include shock-absorbing foam, bubble wrap, and plastic or corrugated cardboard. Prior to shipping, products should be carefully inspected to ensure there are no damages, and all components are included.



Q1: What is the brand name of the Textile Testing Equipment?

A1: The brand name of the Textile Testing Equipment is HAIDA.

Q2: What is the model number of the Textile Testing Equipment?

A2: The model number of the Textile Testing Equipment is HD-P306.

Q3: Where is the Textile Testing Equipment from?

A3: The Textile Testing Equipment is from Guangdong, China (Mainland).

Q4: What certifications does the Textile Testing Equipment have?

A4: The Textile Testing Equipment has ISO and CE certifications.

Q5: How is the Textile Testing Equipment packaged?

A5: The Textile Testing Equipment is packaged with each set protected with resin fiber and PP film, then put into a strong wooden case with operation manual.
