8040-HD Medical Needle Tip Strength and Piercing Force Tester

Name: 8040-HD Medical Needle Tip Strength and Piercing Force Tester
Brand: Haida Equipment Co., Ltd
SKU: 8040-HD
Availability: InStock

Brand Name:	HAIDA
Model Number:	8040-HD
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability:	30 Sets per Month Haida

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE,ISO

Power:

Electronic

Range:

0 ~ 1000g

Test Speed:

1 ~ 40mm/s, Arbitrary Settings

Dimensions:

500 X 400 X 600 Mm

Source:

220V, 50Hz

Printing System:

Embedded Thermal Printer

Packaging Details:

ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Supply Ability:

30 Sets per Month Haida

Highlight:

medical needle piercing force tester

HD needle strength tester

textile testing equipment with warranty

Product Description

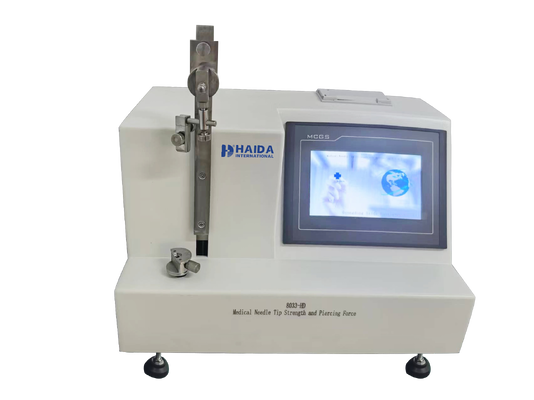

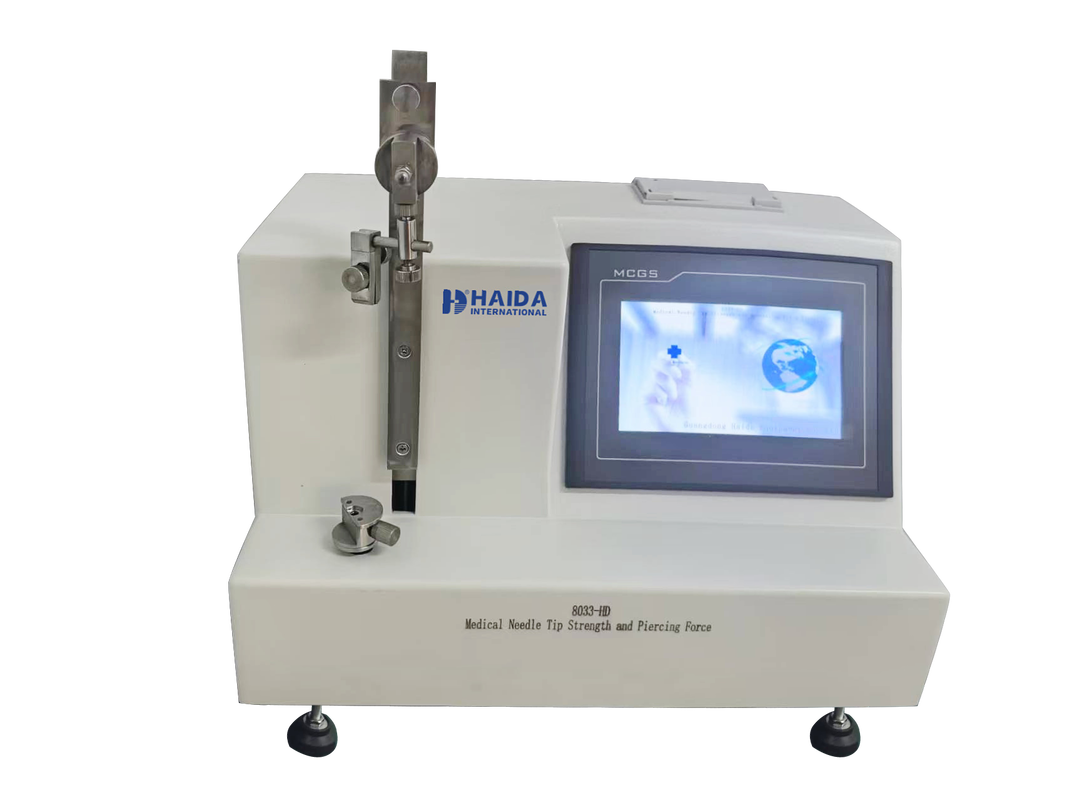

8040-HD Medical Needle Tip Strength and Piercing Force Tester

Product Features

Medical Needle Tip Strength and Piercing Force Tester is used to test the puncture force performance of the syringe tip, evaluate whether the sharpness of the syringe meets the standard requirements, and is also known as the Syringe puncture force tester.

TECHNICAL PARAMETERS

Feature	Description
Product Features
Display	7-inch K600+ core / dot matrix 65-color, 800*480 resolution touch screen, dynamically displays loading force value via PLC control system.
User Interface	Selectable: Chinese / English / Chinese-English switchable.
Control & Data Acquisition	Digital closed-loop control, AD sampling speed of 500KHz, internal resolution of 500,000.
Data & Protection	High-precision clock chip, power-off storage; Overload alarm and automatic shutdown protection.
Touch Controls	Nominal specification, Test item, Applied load, Print, Test, Up, Down, Time, Calibration.
Printing	Built-in printer outputs test results.
Standards & Testing
Execution Standard	Designed and manufactured per standard "YY0043-2016" (Medical Suture Needles).
Test Items	Strength, Puncture Force.
Specifications
Nominal Specification	0.2 ~ 2.4 mm (can be arbitrarily selected).
Set Load	0.01 ~ 2.0 N, error not greater than ±1%.
Die Hole Diameter	Ø5 mm.
Loading Rate	Speed ≤ 10 mm/s when loading to the set value.
Steel Block Hardness	HRC ≥ 60.
Test Consumable	Aluminum foil.
Printing Method	Each print can output 3 puncture force test data points, their average value, and the strength test result.
Shipping List & Power
Shipping List	Main unit x1, Qualification certificate x1, Matching fixtures, Operation manual x1, Printer paper x1 roll, Matching weights.
Power Supply	220V / 50Hz.
Data & Physical
Data Saving	Built-in needle printer / Can be saved to U drive for computer storage.
Net Weight	12 kg.
Overall Dimensions	400 * 240 * 240 (mm).
