8042-HD Medical Suture Tension and connection Force Tester

Name: 8042-HD Medical Suture Tension and connection Force Tester
Brand: Haida Equipment Co., Ltd
SKU: 8041-HD
Availability: InStock

Brand Name:	HAIDA
Model Number:	8041-HD
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability:	30 Sets per Month Haida

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE,ISO

Power:

Electronic

Range:

0 ~ 1000g

Test Speed:

1 ~ 40mm/s, Arbitrary Settings

Dimensions:

500 X 400 X 600 Mm

Source:

220V, 50Hz

Printing System:

Embedded Thermal Printer

Packaging Details:

ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Supply Ability:

30 Sets per Month Haida

Highlight:

medical suture tension tester

suture connection force tester

textile testing equipment with warranty

Product Description

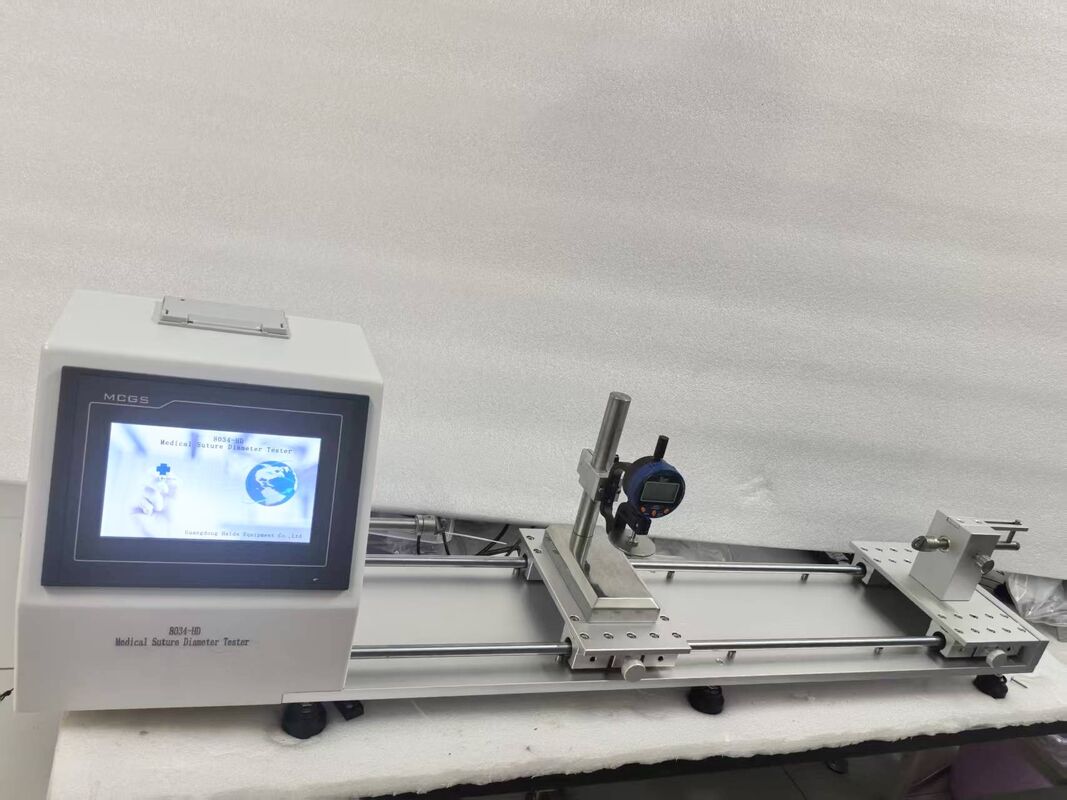

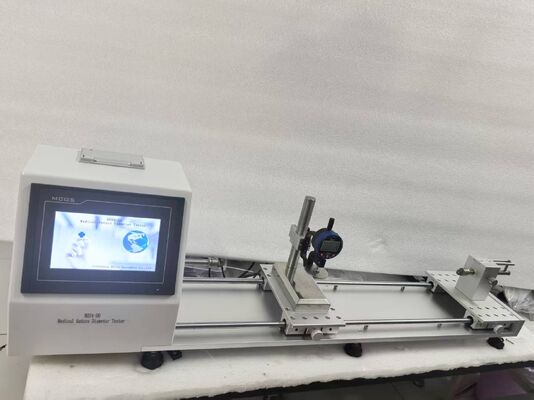

8041-HD Medical Suture Diameter Tester

8042-HD Medical Suture Tension and connection Force Tester 0

Product Features

Equipped with a 7-inch K600+ core/dot matrix 65-color touchscreen display at 800*480 resolution. The PLC control system dynamically displays the loading force value. The operable interface is selectable: Chinese/English/Chinese-English switchable. It features digital closed-loop control, an AD acquisition speed of 500KHz, and an internal resolution of 500,000 counts. Includes a high-precision clock chip for power-off storage and overload alarm with automatic shutdown protection. Touch controls include: Nominal Size, Test Load, Print, Test, Move Left, Move Right, Time, and Calibration. Utilizes weight loading for tension, automatically records diameter data, automatically outputs data reports, and prints test results via the built-in printer.

Design Standards

Manufactured in accordance with the clauses related to diameter testing in standards YY1116-2020 "Absorbable Surgical Suture" and YY0167-2020 "Non-Absorbable Surgical Suture".

Technical Parameters

Parameter	Specification
Nominal Size Range	12-0 to 10 medical sutures
Diameter Measurement Range	0–5 mm
Measurement Error	≤ ±1‰
Resolution	0.001 mm
Presser Foot Diameter	12.7 ± 0.02 mm
Reference Plate Diameter	50 mm
Presser Foot & Plate Flatness	≤ ±0.005 mm
Presser Foot & Plate Parallelism	≤ 0.5%
Loading Weights Range	0–2 Kg
Weight Accuracy	±0.1 g
Presser Foot Load	≤60 g, 210 g ± 3 g
Print Method	Can print 3-point (1/4, 1/2, 3/4 positions) measurement data and average value; Can print the average of 10 tests, their overall average, and deviation.
Shipping List	Main unit x1, Certificate of Conformity x1, Matching fixtures, Operation manual x1, Printer paper x1 roll, Matching hook weights.
Power Supply	AC 90V-240V / 50Hz
Data Saving	Onboard dot matrix printer / USB export to computer
Net Weight	38 kg
Overall Dimensions	320 × 1200 × 280 (mm)
