EQUIPMENT DETAILS OF 5149-HD METAL DETECTOR

Name: EQUIPMENT DETAILS OF 5149-HD METAL DETECTOR
Brand: Haida Equipment Co., Ltd
SKU: 5149-HD
Availability: InStock

Brand Name:	HAIDA
Model Number:	5149-HD
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability:	30 Sets per Month Haida

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE,ISO

Power:

Electronic

Range:

0 ~ 1000g

Test Speed:

1 ~ 40mm/s, Arbitrary Settings

Dimensions:

500 X 400 X 600 Mm

Source:

220V, 50Hz

Printing System:

Embedded Thermal Printer

Packaging Details:

ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Supply Ability:

30 Sets per Month Haida

Highlight:

5149-HD metal detector equipment

textile testing metal detector

HD metal detector with warranty

Product Description

EQUIPMENT DETAILS OF 5149-HD METAL DETECTOR

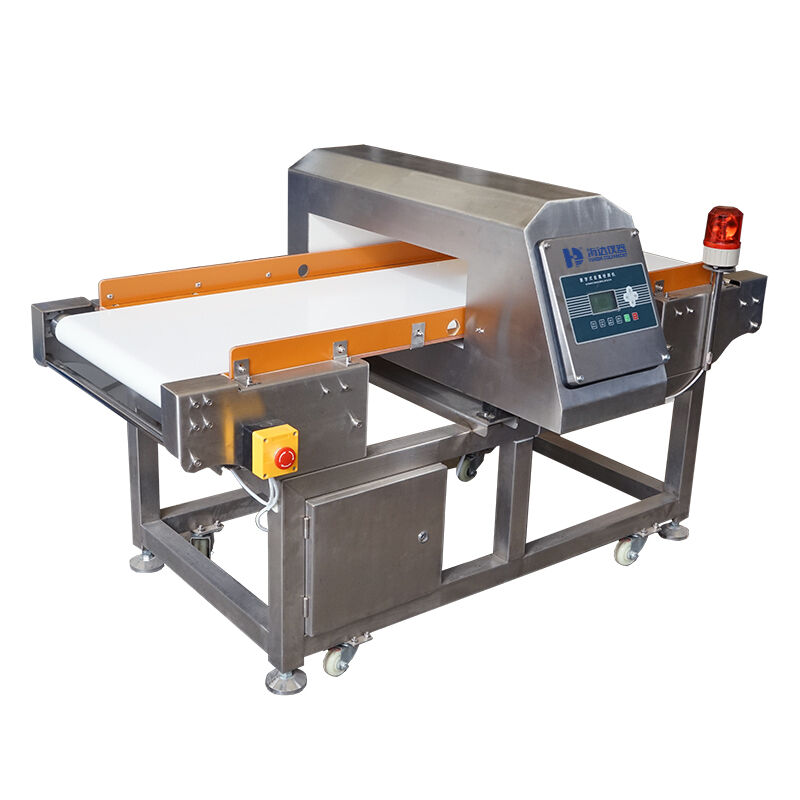

EQUIPMENT DETAILS OF 5149-HD METAL DETECTOR 0

----Picture for reference

MACHINE PRODUCTION

Detecting all metal contaminants in packaged and non-packaged products, including ferrous metal (Fe), non-ferrous metals(Copper, Aluminum etc.) and stainless steel.

STANDARD FEATURES:

1. It adopts abroad more balanced principle of the metal detector and has a more stable and reliable, the performance is better.

2. Phase regulation technology, it can adjust product and effectively restrain the product effect.

3. Combining the DSP and MCU to detect signal data sampling and data processing, improve the detection effect.

4. It has the good man-machine conversation interface.

5. To detect iron, stainless steel, copper, aluminum and other non-ferrous metals and other materials, with self-learning function, material scope of detection.

6. It has memory function and also can store 20 kinds of products inspection parameters.

TECHNICAL PARAMETERS AND SPECIFICATIONS:

Model		5149-HD
Alarm		Buzzer & Lamp
Detect Height		100mm
Detect Width		500mm
Sensitivity (Channel Center)	Fe Φ Diameter	≥1mm
	NFe Φ Diameter	≥1.5 mm
	SUS304 Diameter	≥2.0mm
Belt speed		28m/min
Weight(Approx.)		210 kg
Power		220V 50HZ 60W

CONFIGURATION LIST:

High accuracy detector	1 set
Drive belt	1 Pc
Electronic box	1 set
Drive motor	1 set
LCD controller	1 set
Standard test piece	Fe 1mm, NFe 1.5mm, SUS304 2mm
Emergency stop switch	1 Pc
Machine Rack	304# Stainless steel
Power line	1 Pc
Operation manual(English)	1 Copy
Factory calibration	1 Copy
