Tensile Testing Machine
Created with Pixso.

10kN 20kN 30kN 50kN UTM Universal Tensile Testing Machine Mechanical Materials Tensile Strength Test Equipment for Metal Wire

10kN 20kN 30kN 50kN UTM Universal Tensile Testing Machine Mechanical Materials Tensile Strength Test Equipment for Metal Wire

10kN 20kN 30kN 50kN UTM Universal Tensile Testing Machine Mechanical Materials Tensile Strength Test Equipment for Metal Wire

Brand Name: HAIDA
MOQ: 1
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Load Capacity:
10kN, 20kN, 30kN, 50kN
Force Reading:
Kgf, Ibf, N, KN, T
Load Accuracy:
≤0.5% F.S
Test Speed:
0.1-300mm/min
Horizontal Space:
≤420mm
Max Stroke:
1000mm
Load Resolution:
1/250,000
Control System:
PC
Power Supply:
AC 220V, 50Hz
Frame Capacity:
5000kg
Motor Type:
Panasonic Servo Motor
Dimensions:
910*820*2210mm
Gross Weight:
350kg
Power Consumption:
500W
Voltage:
220V
Highlight:

10kN universal tensile testing machine

,

metal wire tensile strength tester

,

mechanical materials test equipment

Product Description

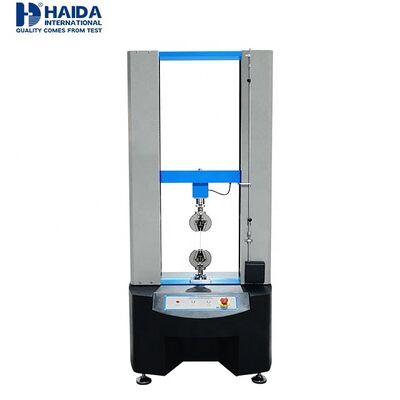

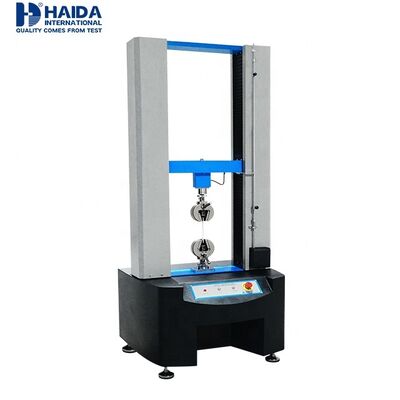

Universal Tensile Testing Machine
The HD-B615-S Universal Testing Machine performs tension, compression, bend, adhesion, shear, and peel tests with various clamps. Suitable for metal, wire, steel, cable, plastic, and other materials.
10kN 20kN 30kN 50kN UTM Universal Tensile Testing Machine Mechanical Materials Tensile Strength Test Equipment for Metal Wire 0
Applications
  • Tested samples: laminated materials, wood, leather, rubber & plastic, metal materials

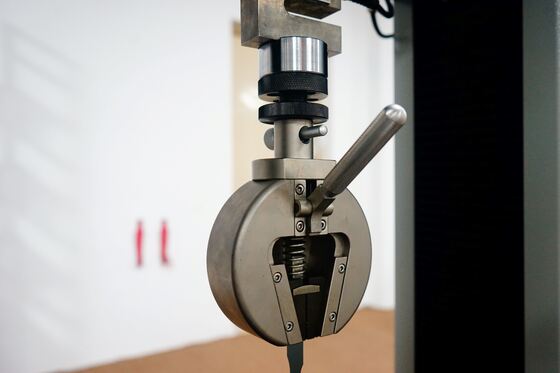

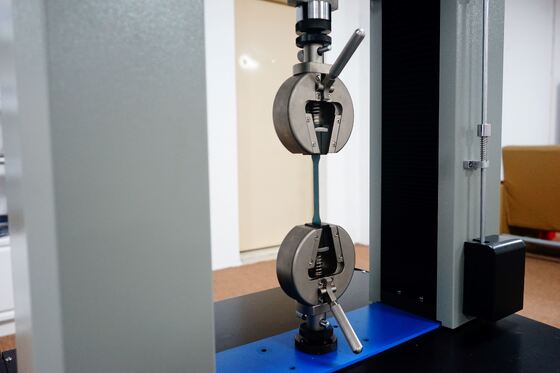

  • Various tests with different grips: tensile, peel, tear, heat seal, adhesive, bend, and open force
  • Deformation under defined load: Measure deformation of tested samples under specified loads
  • Load under defined deformation: Test load under specified deformation of samples
  • Software generates Word/Excel reports with results for maximum force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Standard Features
ItemDescription
Frame capacity5000kg
Load cell brandGermany brand load cell for high accuracy 50kN (10kN, 20kN, 30kN optional)
Load accuracy0.5% F.S
Load resolution1/250,000
Control systemPC with Windows system
MotorPanasonic servo motor with AC variable speed drive system and high-precision mechanical ball screw rod
Force readingkgf, lbf, N, kN, T etc
Vertical test space (Max. stroke)1000mm excluding clamp
Horizontal test space≤420mm
Test speed0.1~300mm/min (adjustable)

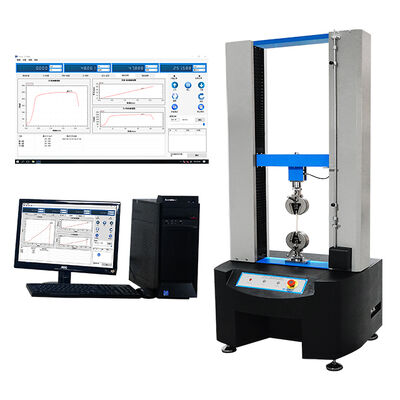

SoftwareTM 2101
Curves displayLoad-elongation, Elongation-time, Time-elongation, Stress-strain
Data displayMax. force, speed, sample information strength (Kpa, Mpa, N/mm, N/mm²) etc.
Safety featuresE-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
Dimensions (W*D*H)910*820*2210mm
Power supply sourceSingle-phase, 220V±10%, 50/60Hz (customizable)
Gross Weight350kg
HS Code9024800000
10kN 20kN 30kN 50kN UTM Universal Tensile Testing Machine Mechanical Materials Tensile Strength Test Equipment for Metal Wire 1
Company Information
HAIDA INTERNATIONAL is a professional manufacturer of various testing equipment with over 20 years of experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products, and other industries, applicable to all scientific research units, quality inspection institutions, and academic fields.
10kN 20kN 30kN 50kN UTM Universal Tensile Testing Machine Mechanical Materials Tensile Strength Test Equipment for Metal Wire 2
Our Services
Haida Equipment Service:
  • 48-hour response and 3-day solution for testing problems
  • Operation videos and English operation manuals
  • Video conference support
Onsite Service:
  • Device installation
  • Equipment operation test technology training
  • Equipment calibration
  • Daily maintenance and equipment maintenance
Additional Services:
  • Free technical training for visiting factories
  • 24-hour online contact
  • Free software upgrades
  • Free documentation: Product instructions, operation instructions/videos, experiment test applications and reports
Device Problem Handling:
  • Social media 24-hour online communication
  • Seamless email support
  • Video conferencing
  • Free on-site technical service
10kN 20kN 30kN 50kN UTM Universal Tensile Testing Machine Mechanical Materials Tensile Strength Test Equipment for Metal Wire 3
