Tensile Testing Machine
Created with Pixso.

100kn Electric Universal Testing Machine

100kn Electric Universal Testing Machine

100kn Electric Universal Testing Machine

Brand Name: Haida
Model Number: HD-B612-10S
MOQ: 1
Price: $3,800-7,899
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ISO
Frame Capacity:
100KN(10T)
Load Cell:
10T Imported Load Cell
Load Accuracy:
±0.5%
Horizontal Test Space:
≤450mm
Test Speed:
0.1mm/min ~ 500mm/min
Displacement Resolution:
0.001mm
Max. Stroke:
1100mm (excluding Fixture)
Motor:
Panasonic Servo Motor
Screw:
High Precise Ball Screw
Elongation Accuracy:
0.001mm
Power Supply:
1 ø, AC220V, 50HZ
Weight:
Approx.600kg
Resolution:
1/250,000
Unit Switchover:
G, KG, N, LB
Data Transmission:
RS232
Highlight:

100kn electric tensile testing machine

,

universal testing machine with warranty

,

electric universal testing machine 100kn

Product Description

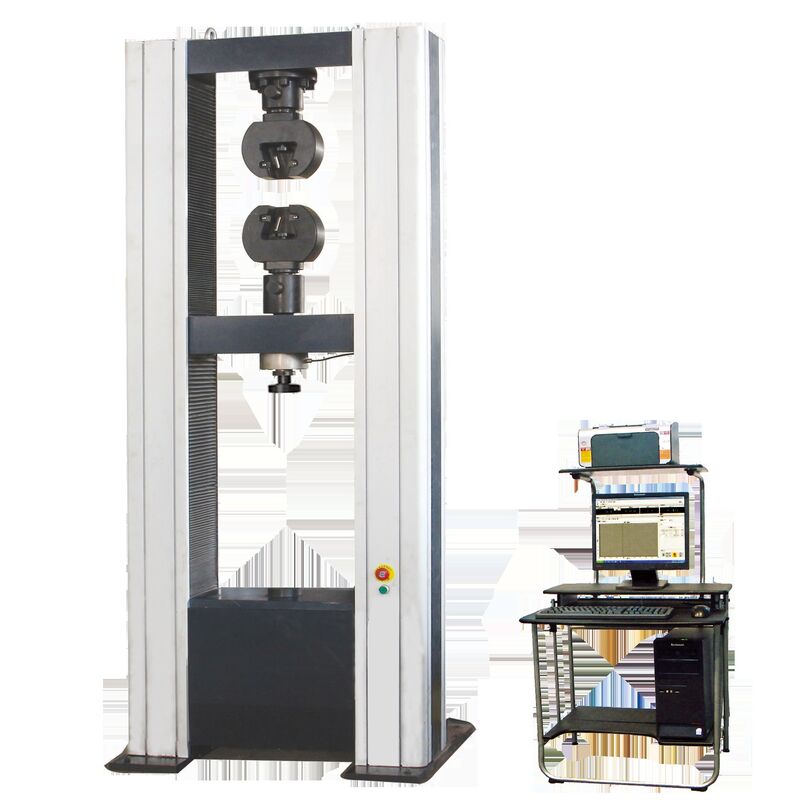

100kN Electric Universal Testing Machine
The 100kN Electric Universal Testing Machine is a precision mechanical testing instrument designed for static load testing including tension, compression, bending, shear, tearing, and peeling applications. This versatile equipment is suitable for testing various materials including plastic sheets, pipes, profiles, plastic films, rubber, wires and cables, steel, and glass fibers. It serves as essential testing equipment for material development, physical testing, teaching research, and quality control applications.
100kn Electric Universal Testing Machine 0
Key Features
  • Motor System: Panasonic servo motor with servo driver and high-precision ball screw from Taiwan
  • Control System: Computer-controlled with TM2101 software, automatic return to origin after testing, automatic or manual data storage
  • Data Transmission: RS232 interface
  • Displacement Resolution: 0.001mm precision
  • Graph Optimization: Automatic graph scaling with dynamic switching between force-elongation, force-time, elongation-time, and stress-strain displays
  • Comprehensive Data: Automatic or manual result saving with display of maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum/minimum/average values
  • Custom Parameters: User-configurable material parameters including length, width, thickness, radius, and area
  • Multi-language Support: Simplified Chinese and Traditional Chinese language options
Technical Specifications
Items Specification
Sensor Celtron load cell
Unit Switchover G, KG, N, LB
Display Device PC
Resolution 1/250,000
Accuracy ±0.5%
Max. Stroke 1100mm (excluding fixture)
Test Speed 0.01-500mm/min (adjustable)
Motor Panasonic Servo Motor
Screw High Precise Ball Screw
Elongation Accuracy 0.001mm
Power 1 ø, AC220V, 50HZ
Weight Approx. 600kg
Accessories One set tensile clamp, one set Lenovo computer, English software CD, operation video CD, English user manual
100kn Electric Universal Testing Machine 1
Applications
  • Tested Samples: Laminated materials, wood, leather, rubber & plastic, metal materials
  • Various Tests: Tensile, peel, tear, heat seal, adhesive, bend and open force with specialized grips
  • Deformation Testing: Measure deformation under defined load conditions
  • Load Testing: Measure load under defined deformation conditions
  • Reporting: Software generates Word/Excel reports with results for maximum force, elongation, tensile strength, peel strength, tear strength, compression strength

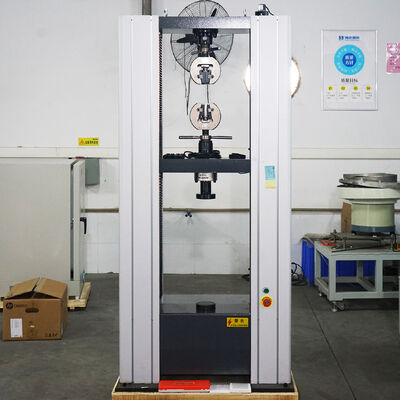

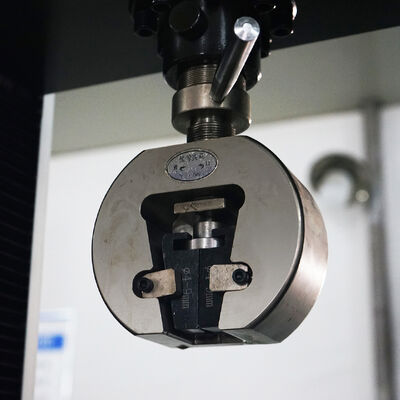

Tensile Testing Machine Images
100kn Electric Universal Testing Machine 2 100kn Electric Universal Testing Machine 3 100kn Electric Universal Testing Machine 4 100kn Electric Universal Testing Machine 5
Company Information
HAIDA INTERNATIONAL is a professional manufacturer of various testing equipment with over 15 years of industry experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries. Our equipment is applicable to all scientific research units, quality inspection institutions and academic fields.
100kn Electric Universal Testing Machine 6
Packaging & Shipping
Test machines are carefully protected with air bubble film before being securely packed in wooden cases. We offer multiple transportation options including sea, air, and land freight to meet your shipping requirements.
100kn Electric Universal Testing Machine 7
Our Services
Haida Equipment Service: If you encounter any problems during testing, we guarantee a response within 48 hours and solution provision within 3 working days. We provide operation videos, English operation manuals, and video conference support.
Onsite Services
  • Device installation and setup
  • Equipment operation and technical training
  • Equipment calibration services
  • Daily maintenance and equipment upkeep
Additional Support
  • Free technical training for factory visits
  • 24-hour online contact availability
  • Free software upgrades
  • Comprehensive documentation: Product instructions, operation manuals/videos, experiment test applications and reports
Problem Resolution
  • 24-hour online communication via social media
  • Seamless email support
  • Video conferencing assistance
  • On-site technical service when required
100kn Electric Universal Testing Machine 8
Why Choose HAIDA?
  • Considerate Service: International plug compatibility, manual voltage change from 110V to 220V, insurance indicators
  • Excellent After-sales Service: 12-month warranty, free controller repairs, free replacement parts even for non-factory components
  • Comprehensive operation videos and English manuals
  • Video conference technical support
Contact Information
Please feel free to contact us with any requirements. Visit our official website at: www.haidatestequipment.com
For more information, please leave a message below and click "CONTACT SUPPLIER". Thank you for your time and attention!
