10kn Computer Electronic Laboratory Universal Tensile Testing Machine for Lab Price

Brand Name:	HAIDA
Model Number:	HD-B604-S
MOQ:	1
Price:	$3,000-5,800

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE,ISO

Software:

TM 2101

Control System:

PC With Windows 7 System

Horizontal Test Space:

≤400mm

Load Accuracy:

0.5% F.S

Power:

Electronic

Frame Capacity:

2000kg

Load Cell Brand:

Germany Brand Load Cell

Motor:

Panasonic Servo Motor W/AC Variable Speed Drive System

Force Reading:

Kgf, Ibf, N, KN, T Etc

Vertical Test Space:

1200mm Including Fixture

Test Speed:

0.1~500mm/min (adjustable)

Curves Display:

Load-elongation, Elongation-time, Time-elongation, Stress-strain

Data Display:

Max. Force, Speed, Sample Information, Strength(Kpa, Mpa, N/mm, N/mm2) Etc

Safety Features:

E-Stop, Over-load Protection, Upper And Lower Limit Switches, Load Sensor With Automatic Retreat

Mechanical Properties:

Static Load, Tensile, Compression, Bending, Shearing, Tearing, Peeling

Highlight:

10kn tensile testing machine for lab

electronic laboratory tensile tester

universal tensile testing machine with warranty

Product Description

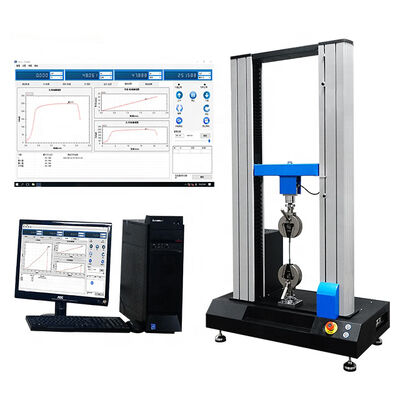

10kN Computer Electronic Laboratory Universal Tensile Testing Machine

Professional testing equipment for comprehensive material mechanical property analysis in laboratory environments.

Product Overview

The Computerized Double Column Tensile Testing Machine is designed for testing mechanical properties of various materials including static load, tensile, compression, bending, shearing, tearing, and peeling. This versatile equipment is suitable for plastic plates, pipes, profiles, plastic films, rubber, wires, cables, steel, fiberglass, and other materials requiring physical and mechanical performance testing.

Technical Specifications

Frame capacity	2000kg
Load cell brand	Germany brand load cell for high accuracy 2000kg (500kg, 1000kg optional)
Load accuracy	0.5% F.S
Control system	PC with Windows 7 system
Motor	Panasonic servo motor with AC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, lbf, N, kN, T etc
Vertical test space	1200mm including fixture
Horizontal test space	≤400mm
Test speed	0.1~500mm/min (adjustable)
Software	TM 2101

Software Capabilities

Curves Display

Load-elongation, Elongation-time, Time-elongation, Stress-strain

Data Display

Maximum force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm²) and more

Reporting Features

Software generates Word/Excel reports with results for maximum force, elongation, tensile strength, peel strength, tear strength, compression strength, and other parameters.

Safety Features

Emergency Stop (E-Stop)
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat

Applications

Tested samples: laminated materials, wood, leather, rubber & plastic, metal materials, etc.
Different tests with specialized grips: tensile, peel, tear, heat seal, adhesive, bend and open force
Deformation under defined load: Test deformation under specified load conditions
Load under defined deformation: Test load under specified deformation conditions
