Tensile Sale Equipment Test Price Bench Strength Tester Manufacturer Rubber Peel Plastic Film Used Pvc Universal Testing Machine

Brand Name:	haida
Model Number:	HD-B604-S
MOQ:	1
Price:	$3,000-6,000

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Frame Capacity:

100KG-2T

Load Accuracy:

0.5% F.S

Control System:

PC With Windows 7 System

Force Reading:

Kgf, Ibf, N, KN, T Etc

Vertical Test Space:

1200mm Including Fixture

Horizontal Test Space:

≤400mm

Test Speed:

0.1~500mm/min (adjustable)

Software:

TM 2101

Motor:

Panasonic Servo Motor W/AC Variable Speed Drive System, High-precision Mechanical Ball Screw Rod

Load Cell:

Germany Brand Load Cell For High Accuracy, 2000kg (500,1000kg Are Optional)

Curves Display:

Load- Elongation, Elongation-time, Time-elongation, Stress-strain

Data Display:

Max. Force, Speed, Sample Information, Strength(Kpa, Mpa, N/mm, N/mm2) Etc…

Safety Features:

E-Stop, Over-load Protection, Upper And Lower Limit Switches, Load Sensor With Automatic Retreat

Power:

Electronic

Max Capacity:

2000kg

Highlight:

universal testing machine for rubber

pvc film tensile strength tester

plastic peel test equipment

Product Description

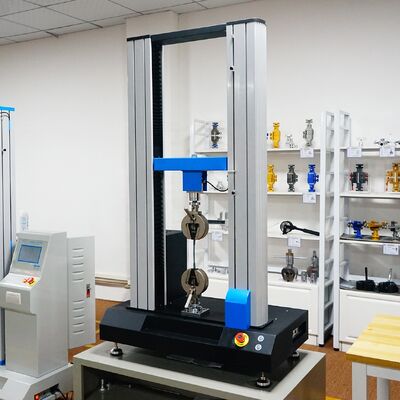

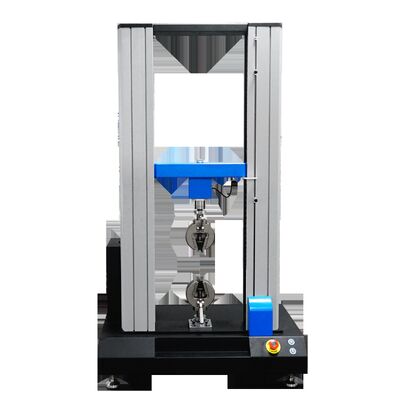

Computerized Double Column Tensile Testing Machine

This advanced testing equipment evaluates the mechanical properties of various materials including static load, tensile strength, compression, bending, shearing, tearing, and peeling. Ideal for plastic plates, pipes, profiles, plastic films, rubber, wires, cables, steel, fiberglass, and other industrial materials.

Technical Specifications

Frame Capacity	2000kg
Load Cell	Germany brand load cell for high accuracy, 2000kg (500kg, 1000kg optional)
Load Accuracy	0.5% F.S
Control System	PC with Windows 7 system
Motor System	Panasonic servo motor with AC variable speed drive system, high-precision mechanical ball screw rod
Force Reading	kgf, lbf, N, KN, T etc
Vertical Test Space	1200mm including fixture
Horizontal Test Space	≤400mm
Test Speed	0.1~500mm/min (adjustable)
Software	TM 2101

Software Capabilities

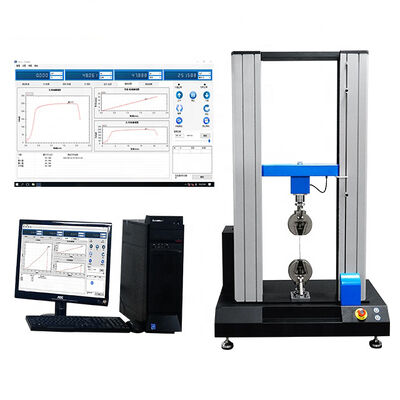

Advanced software displays multiple curve types including Load-Elongation, Elongation-Time, Time-Elongation, and Stress-Strain. Data display includes maximum force, speed, sample information, and strength measurements (Kpa, Mpa, N/mm, N/mm²).

Safety Features

Emergency Stop (E-Stop)
Over-load Protection
Upper and Lower Limit Switches
Load Sensor with Automatic Retreat

Applications

Tested Materials: Laminated materials, wood, leather, rubber & plastic, metal materials

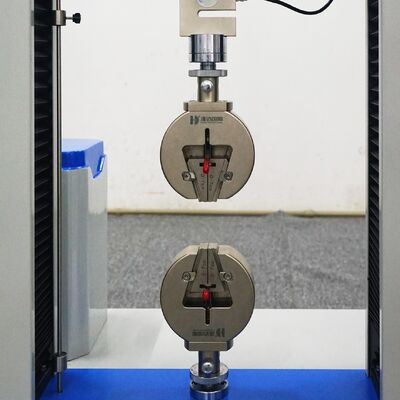

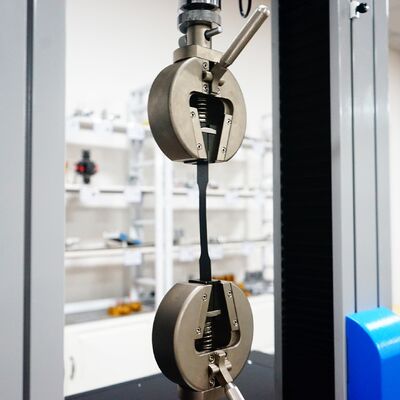

Test Types: Tensile, peel, tear, heat seal, adhesive, bend, and open force tests with specialized grips
Deformation Testing: Measure deformation under defined load conditions
Load Testing: Determine load under specified deformation parameters

Reporting Capabilities

Software generates comprehensive Word/Excel reports with results for maximum force, elongation, tensile strength, peel strength, tear strength, compression strength, and other critical parameters.

Customized Fixtures

Haida provides comprehensive fixture customization services to meet all customer testing requirements and specific application needs.
