ISO Certification Textile Testing Machine , Textile Lab Equipment For Clothing

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W258
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Aerodynamic Particle Size Distribution Of Particulate Matter: (0.02~2)μm Mass Median Diameter: About O. 6μm
Effective Variation Of The Room Concentration: ≤10% Occurrence: ≥100L/min
Size Of Control Container: 700mm×700mm×1600mm(L×W×H) Particle Aerosol Concentration: (10 ±1) Mg/mPP3
High Light:

HAIDA textile testing machine


100L/Min textile testing machine


100L/Min textile lab equipment

Product Description

ISO Certification Textile Testing Machine , Textile Lab Equipment For Clothing





Product introduction


Textile Testing Machine mainly applies to the pilling & abrasion resistance test of textile the similar fabric.Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.





Relative Standard


GB / T 29511-2013 Protective clothing Chemical protection clothing for solid particulate matter 4.3.1 and Appendix A

GB 2626-2019 respirator self-absorption of filtering particulate respirators section 6.4

Technical requirements for medical protective masks Appendix B Adhesion

BS EN ISO 13982,EN 1073-1-2016

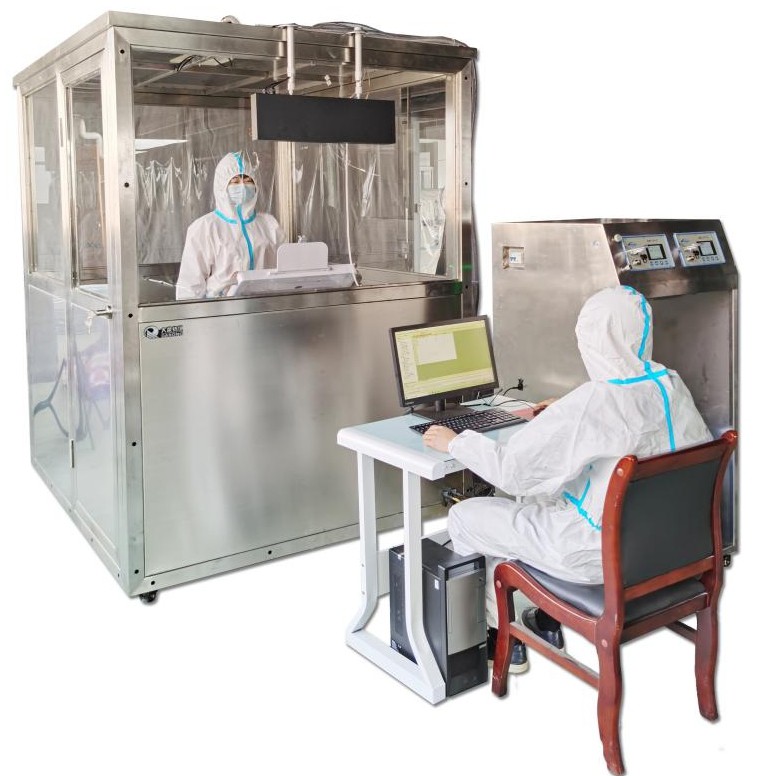

A standard aerosol of NaC1 particles is generated by an aerosol generator, and enters the test room to maintain a relatively stable state. The test subject wears the test protective clothing to perform a test action according to a predetermined plan in the test room. The aerosol concentration of NaC1 particles in the protective clothing under test was measured at the sampling point, and the overall protective performance of the protective clothing against particulates was evaluated by the following indicators:

——Single inward leak rate at each sampling location Lijm

——Total inward leakage rate of each protective clothing tested LS

——Total inward leakage rate of each measured object LH

——Total inward leakage rate for each test action le

——Total inward leakage rate at each sampling location LP

——Average total inward leakage rate L





Technical Data


Ⅰ. Test environment requirements:


1,Ambient temperature(20 士5)℃ ,Relative humidity≤60%

2,≥4000×5000×3000mm using room,Inlet and drainage, good ventilation.



Ⅱ. System parameter:


1,Effective internal size:1800mm×1500mm×2100mm(L×W×H)

     Size of out test room:1950mm×1650mm×2500mm(L×W×H)

     Size of control container: 700mm×700mm×1600mm(L×W×H)


2,Environmental simulation detection system


(1)Na Cl Particle aerosol generator:


Particle aerosol concentration (10 ±1) mg/mPP3
Aerodynamic particle size distribution of particulate matter (0.02~2)μm
Mass median diameter About O. 6μm
Effective variation of the room concentration ≤10%
Occurrence ≥100L/min

(2)2pcs Particle concentration detector


The DR is(0.001~200)mg/m3,Precision for is 士1% ,response time is ≤500 ms


(3)Horizontal pedal drive test-bed Operation speed is (5±0.5)km/h


(4)Air duct circulation and maintenance of cleaning equipment


Ⅲ. Control analysis system


1,Centralized console, PC computer programmed control and prompt to complete the whole process of the test.

2,Automatic monitoring of test data, automatic calculation of experimental single internal leakage rate, total inward leakage rate, average total inward leakage rate and other experimental results, and output of experimental results in multiple ways




 Correlation traceability index


1,Particle aerosol generator;

The air volume is not less than 100L/min, and the concentration of NaC1 aerosol (10±1)mg/m³ is ≤ ±10% in the effective space of the test chamber.The aerodynamic particle size distribution of particles should be (0.02-2)μm, and the mass median diameter is about 0.6μm.


2,Particulate detector;

Two detectors were used to detect the concentration of NaC1 aerosol particles in the test room and the protective clothing respectively.The dynamic range is (0.001-200)mg/m³, the precision is ±1%, and the detector's response time is ≤ 500ms.


3,Horizontal pedal drive test-bed;

1pc,the operation speed is (5±0.5)km/h , install inside of the test room.


4,Sampling pump and air line;

2pcs are used to collect NaC1 aerosol in the test room and the protective clothing.Flow range (0.05-4) L/min, flow fluctuation <± 0.2L /min.It can ensure that the sampling probe can sample at a flow rate of (2±0.5) L/min inside the protective clothing under test.

In order to ensure that the reduced pressure generated by sampling in the protective clothing under test does not cause an additional inward leakage rate, it should be delivered in the sampled colleagues at a rate of (2±0.5) L/min to the protective clothing under test.Clean air can be fed to one of the two other sampling probes in the sampling interval according to the sampling sequence of the schematic.


5,Sampling probe;


      There were 4 sampling probes, one of which was used to detect the concentration of NaC1 aerosol particles in the environment of the test room, and the other 3 were used to measure the concentration of NaC1 aerosol particles in the protective clothing under  test.The sampling probe is connected to a transparent plastic tube with an inner.
