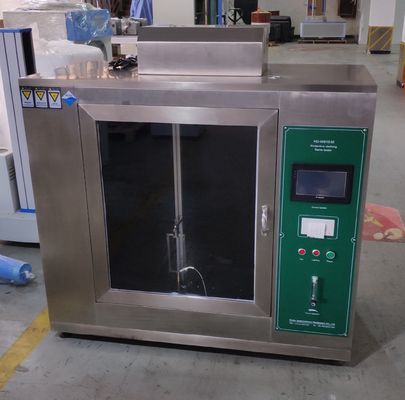

Clothing Tent Fabric 90° Flammability Testing Machine Flame Height 555mm

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W821
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Weight: Approx 36KG
Flame Spread Time: 0 ~ 999.9s Can Be Set Product Name: Fabric Vertical Flammability Tester
High Light:

90° Flammability Testing Machine


555mm Height Flammability Testing Machine


Fabric Vertical Flammability Tester

Product Description

Clothing / Decorative/ Tent Fabric 90° Flammability Tester Flame Height 555mm






Flammability Testing Machine is suitable for the measurement of limited flame spread properties of Protective clothing.. A defined flame from a specified burner is applied for 10 s to the surface or the bottom edge of textile specimens which are vertically oriented.​





Technical parameters


Technical Index HD-W821
Control method 7-inch color touch screen, can set and display ignition time and flame spread time
Machine size 410mm(W) X 900mm(H) X 380mm(D)
Ignition time 0 ~ 999.9s can be set
Flame spread time 0 ~ 999.9s can be set
Flame angle 30 º& 90°
Flame size

Inner diameter of blowtorch tube: Ø6mm

The inner diameter of the fire nozzle is Ø1.7mm, evenly distributed 8 Ø0.9mm holes

Combustion gas The combustion gas uses industrial propane or butane gas
Sample holder Composed of a rectangular metal frame, the rectangular frame is 560mm long and 150mm wide. It is equipped with 12 sample fixing pins. The distance between the sample fixing pins and the bottom of the frame is 5mm, 10mm, 190mm, 370mm, 550mm and 555mm. The length is at least 26mm. The test plane frame is at least 20mm, and a positioning cylinder with a diameter of 2mm and a length of at least 20mm is installed near each fixed pin.
Weight Approx 36KG
Voltage AC220V, 50Hz






























Test standard


GB / T5456-2009,ISO6941 : 2003
